Third Row Seat

78.10.45 Seat - Third Row

Remove

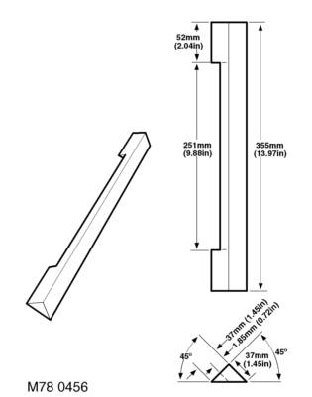

1. Manufacture a spring retainer bracket to the dimensions given above.
2. Position third row seat in deployed position.

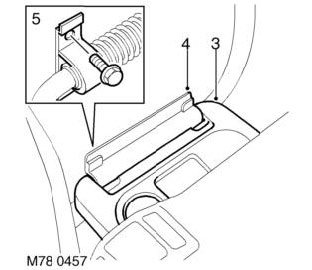

3. Remove the cup holder (where applicable).
4. Remove saddle bracket cover from lower rear quarter to allow access to third row seat securing bolts and nuts.
5. Remove top 2 bolts securing seat to lower rear quarter panel.

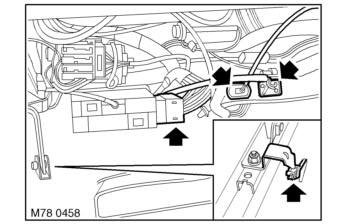

6. Position the locally manufactured retainer bracket across the seat mounting. Ensure that the lugs on the end of the retainer fit below the seat mounting bar, then partially fold the seat so that the retainer bracket is held in position.
7. Remove lower 2 nuts securing seat to lower rear quarter panel. The action of the spring will now hold the retainer bracket in place.

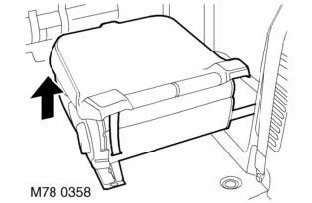

8. Remove seat.

Refit

1. Ensuring that the retainer bracket is in position on the spring, position third row seat to its mounting studs.
2. Fit nuts securing third row seat to lower rear quarter panel and tighten to 22 Nm (16 lbf.ft).
3. Remove the retainer bracket, fit bolts securing third row seat to lower rear quarter panel and tighten to 22 Nm (16 lbf.ft).
4. Fit saddle bracket cover to third row seat securing bolts, fit the cup holder (where applicable) and stow the seat.
