Ambient Temperature Sensor / Switch HVAC: Service and Repair
Sensor - Ambient Air TemperatureService Repair No - 82.20.91 Remove 1.
Remove front grille.
2.

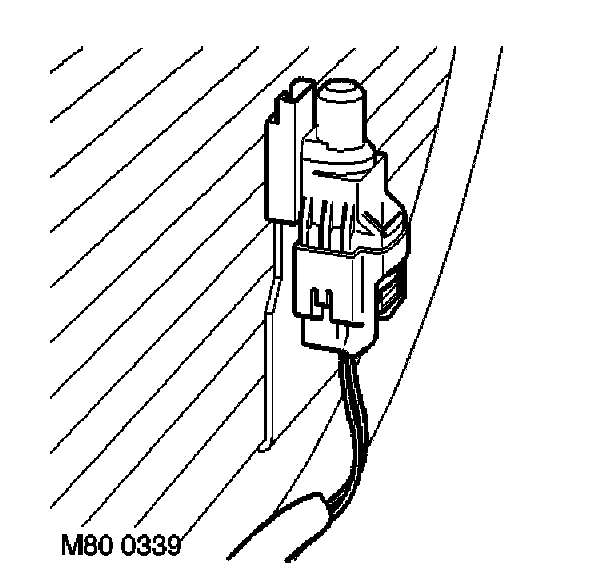

Release ambient air temperature sensor from support bracket, disconnect multiplug and remove sensor.
Refit 1.
Position sensor, connect multiplug and secure sensor to support bracket
2.
Fit front grille.
