Condenser Fan: Service and Repair


Fan - Condenser

Service Repair No - 82.15.01

Remove

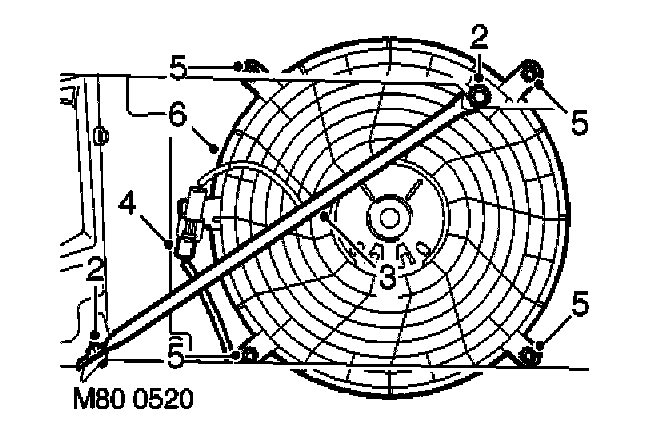

1. Remove front grille.







2. Remove 2 bolts securing bonnet platform RH support stay.
3. Remove support stay.
4. Disconnect multiplug from condenser cooling fan motor.
5. Remove 4 screws securing cooling fan cowl to mounting bracket.
6. Remove cooling fan assembly and collect spacing washers.

Refit

1. Fit condenser fan.
2. Fit spacing washers between fan cowl and mounting bracket and secure with screws.
3. Connect multiplug to motor.
4. Fit bonnet platform support stay and secure with bolts.
5. Fit front grille.
