Ventilation Switch: Service and Repair
Switch - Recirculation Control

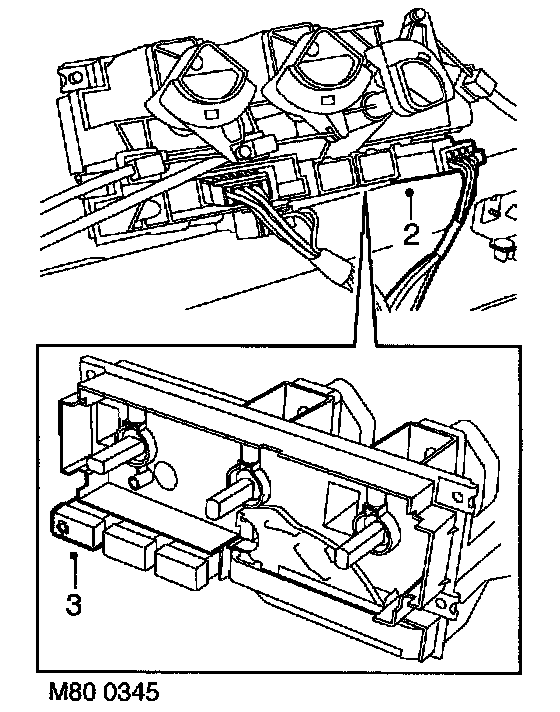

Service Repair No - 80.10.21 Remove 1.
Remove louvre panel assembly.
2.
Disconnect multiplug from recirculation switch.
3.
Remove recirculation switch from heater control panel.
Refit 1.
Fit recirculation switch to heater control panel and connect multiplug.
2.
Fit louvre panel assembly.
