Combination Switch: Service and Repair
Switch - Indicator And Exterior Lighting Combined
Service Repair No - 86.65.55
WARNING: Always remove the key from the starter switch, disconnect the vehicle battery and wait 10 minutes before commencing work on the SRS system.
Remove
1. Remove rotary coupler.

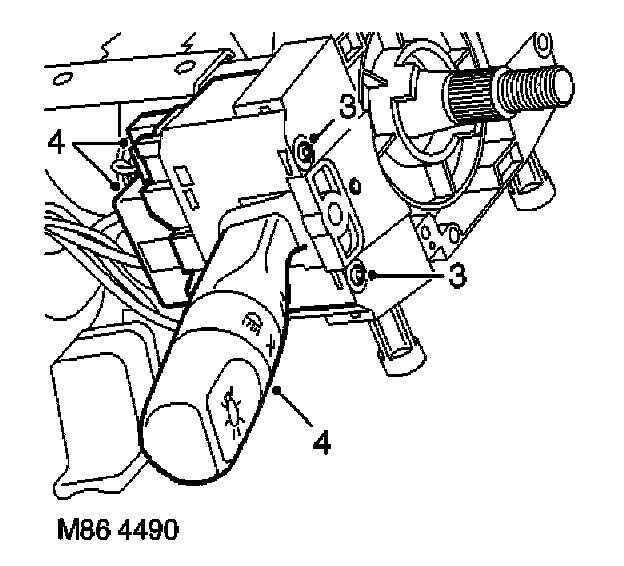

2. Remove 2 screws securing switch.
3. Carefully raise edge of switch bracket to clear location peg and release switch from bracket.
4. Disconnect 2 multiplugs and remove switch.
Refit
1. Position switch and connect multiplugs.
2. Fit switch to bracket and secure with screws.
3. Fit rotary coupler.
