Drive Belt: Service and Repair


Drive Belt

Service Repair No - 86.10.03

Remove

1. Remove the viscous fan.

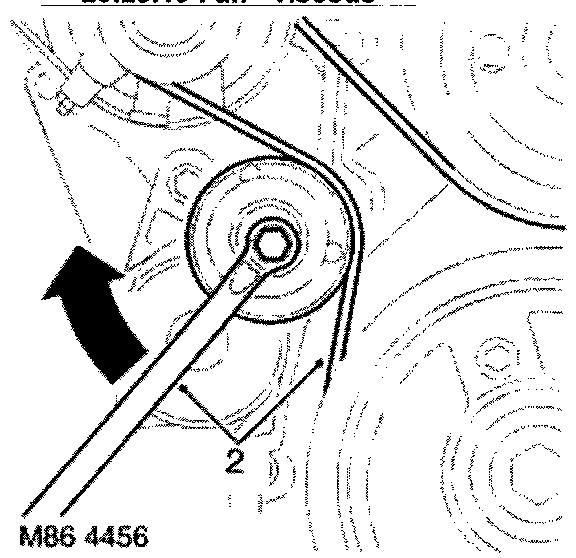

2. Turn drive belt tensioner using a 15 mm ring spanner wrench and release belt from pulleys.

Refit

1. Clean drive belt pulley grooves and ensure grooves are not damaged.
2. Fit new drive belt around pulleys, ensure belt is correctly aligned in pulley grooves.
3. With assistance, hold tensioner fully clockwise and fit drive belt around remaining pulley. Release tensioner.
4. Fit viscous fan.
