Fluid Filter - A/T: Service and Repair

Filter - Oil

Service Repair No - 44.24.07

Remove

1. Remove oil sump gasket.

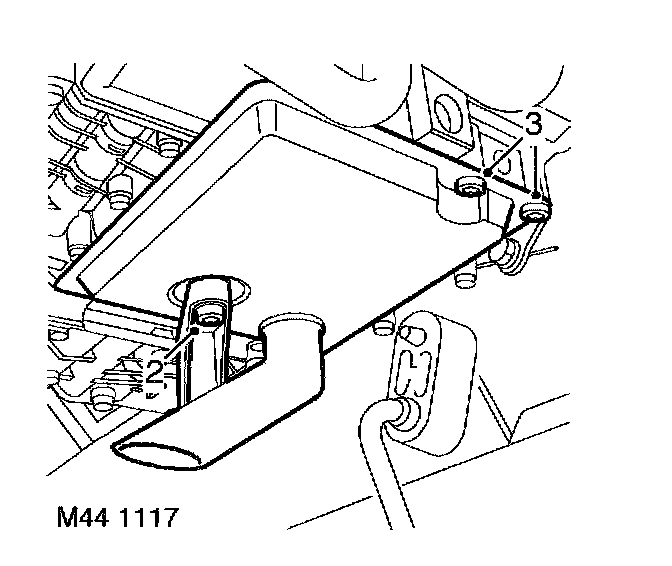

2. Remove Torx screw securing oil pick-up tube and remove tube.
3. Remove 2 Torx screws securing filter to valve body and discard O-rings.

Refit

1. Clean filter and pick-up tube using a lint free cloth.
2. Fit new O-rings to filter.
3. Position filter and tighten Torx screws to 8 Nm (6 ft. lbs.).
4. Position ok pick-tip tube end tighten Torx screw to 8 Nm (6 ft. lbs.).
5. Fit oil sump gasket.
