Engine Oil: Service and Repair


Engine Oil - V8

WARNING: Avoid excessive skin contact with used engine oil. Used engine oil contains potentially harmful contaminants which may cause skin cancer or other serious skin disorders.

Replace

1. Position suitable container beneath sump.
2. Clean area around oil drain plug.

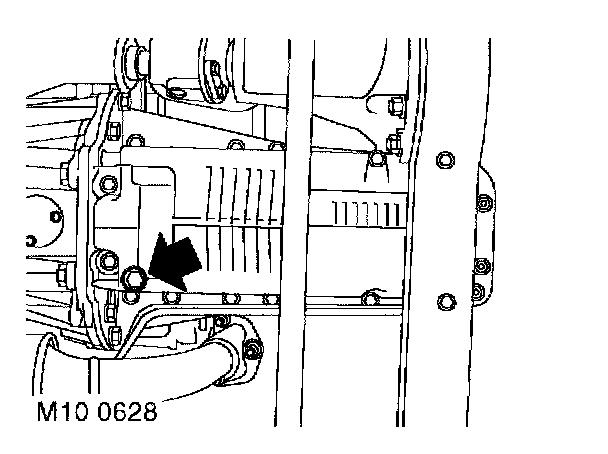

3. Remove oil drain plug, discard sealing washer.
4. Allow oil to drain.
5. Fit new sealing washer to oil drain plug.
6. Fit engine drain plug and tighten to 33 Nm
7. Fill engine with recommended grade of oil to correct mark on dipstick.
