Fluid - M/T: Service and Repair

Fluid Replacement

1. Release fixings, remove rear underbelly panel.
2. Place a suitable container beneath gearbox drain plug.
3. Clean area around oil filler/level and drain plugs.

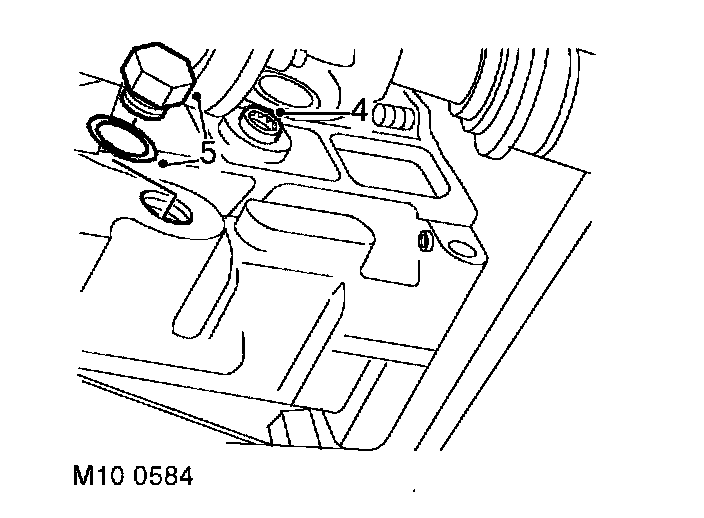

Drain And Fill Plug:

4. Remove oil filler/level plug.
5. Remove oil drain plug, remove and discard sealing washer.
6. Allow oil to drain.
7. Clean magnet in oil drain pan.
8. Fit new sealing washer to oil drain plug.
9. Fit manual gearbox drain plug and tighten to 50 Nm (37 ft. lbs.)
10. Fill gearbox with recommmended oil to bottom of oi filler/level plug hole.
11. Fit manual gearbox filler/level plug and tighten to 30 Nm (22 ft. lbs.)
12. Remove all traces of oil from gearcase.
13. Fit rear underbelly panel, secure fixings.
