Parking Assist Control Module: Service and Repair


Control Unit (ECU) - Parking Aid

Service repair No - 86.54.10

Remove

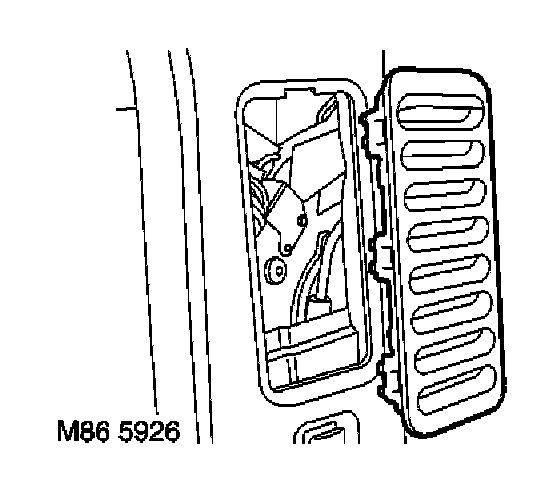

1. Remove loadspace LH side trim casing access panel.

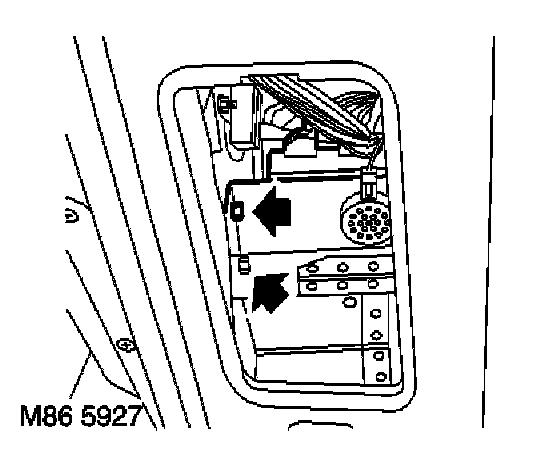

2. Remove 2 bolts securing parking aid ECU mounting bracket to body and manoeuvre ECU and bracket assembly from behind trim casing.







3. Disconnect multiplug from ECU.
4. Remove 2 nuts securing ECU to bracket.
5. Remove ECU.


Refit

1. Fit ECU to mounting bracket and fit and tighten nuts.
2. Connect ECU multiplug.
3. Manoeuvre ECU and mounting bracket assembly behind trim casing, align, fit bolts and tighten to 25 Nm (18 ft. lbs.).
4. Fit access panel.
