Sunroof / Moonroof Module: Service and Repair
76.84.46 ECU - SunroofRemove 1.
Remove front stowage pocket.
2.

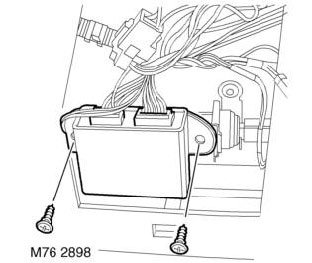

Remove 2 screws securing ECU to roof.
3.
Disconnect 2 multiplugs from ECU.
4.
Remove sunroof ECU.
Refit 1.
Position sunroof ECU and connect multiplugs.
2.
Fit and tighten screws securing ECU to roof.
3.
Fit front stowage pocket.
