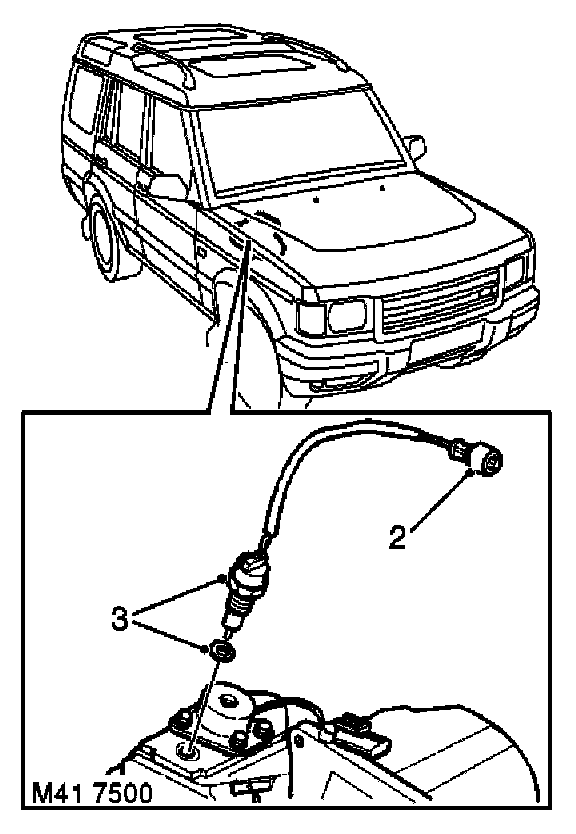

Sensor - Neutral
Sensor - NeutralService repair No - 41.20.64Remove 1.
Raise vehicle on ramp.
2.
Disconnect multiplug from neutral sensor.
3.
Remove sensor and discard sealing washer.
Refit 1.
Clean sensor threads.
2.
Fit new washer and apply Hylosil PL 32 to sensor threads.
3.
Fit and tighten sensor to
25 Nm (18 lbf.ft). 4.
Lower vehicle on ramp.
