Temperature Sensor/Switch: Service and Repair

Sensor - Oil Temperature

Service repair No - 41.20.80

Remove
1. Lower vehicle.

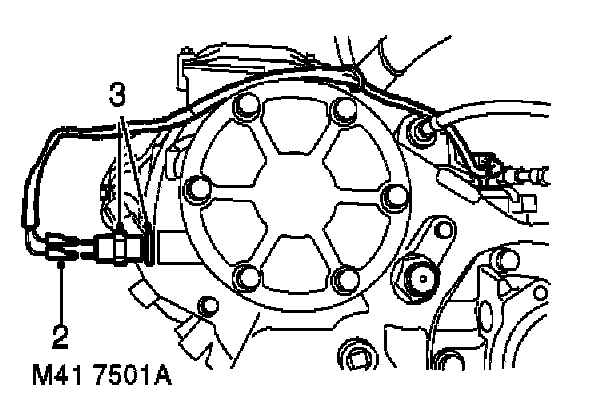

2. Disconnect 2 Lucar connectors from oil temperature sensor.
3. Remove oil temperature sensor and discard sealing washer.

Refit
1. Clean sensor and mating face on transfer box.
2. Fit new sealing washer, position oil temperature sensor and tighten to 42 Nm (31 lbf.ft).
3. Connect Lucar connectors to oil temperature sensor.
4. Lower vehicle.
