Windshield Moulding / Trim: Service and Repair

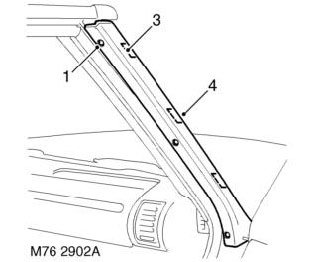

76.43.39 Side Finisher - WindscreenRemove 1.
Push centres from 3 trim clips securing finisher to 'A' post.
2.
Remove trim clip outers from finisher.
3.
Release finisher from 3 spring clips.
4.
Remove finisher.
Refit 1.
Fit finisher to 'A' post and secure with spring clips.
2.
Fit trim clip outers to finisher.
3.
Fit centres to trim clips.
