Identification Number Locations

Engine number

KV6 engine serial number is stamped on the rear LH side of the LH cylinder block.

KV6 Engines:

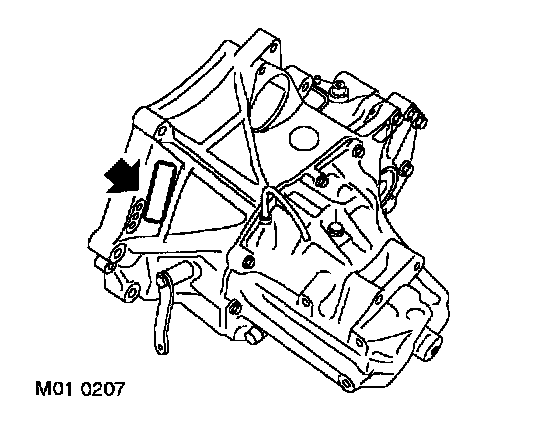

Manual gearbox number
PG1 gearbox serial number is provided on a barcode label attached to the front face of the clutch housing.

PG1 Gearbox:

Getrag gearbox serial number is provided on an adhesive barcode label attached to the gearbox casting.

Getrag Gearbox:

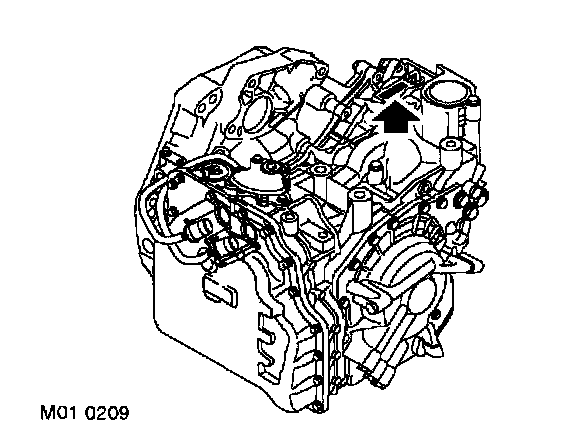

Automatic Gearbox Number
The JATCO automatic gearbox serial number is stamped on the upper RH side of the gearbox casing.

JATCO Automatic Gearbox:

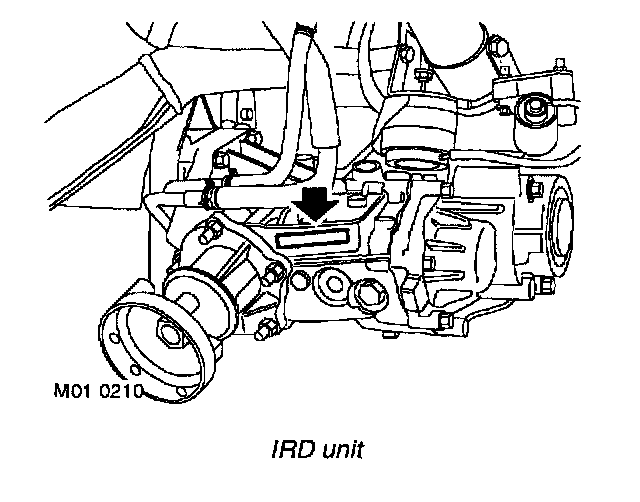

IRD unit
The IRD unit serial number is provided as a barcode on an adhesive label applied to the IRD casing.

IRD Unit:
