Traction Control Switch: Service and Repair
Switch - hill descent - up to 03MY
Service Repair No - 70.70.13 Remove 1.

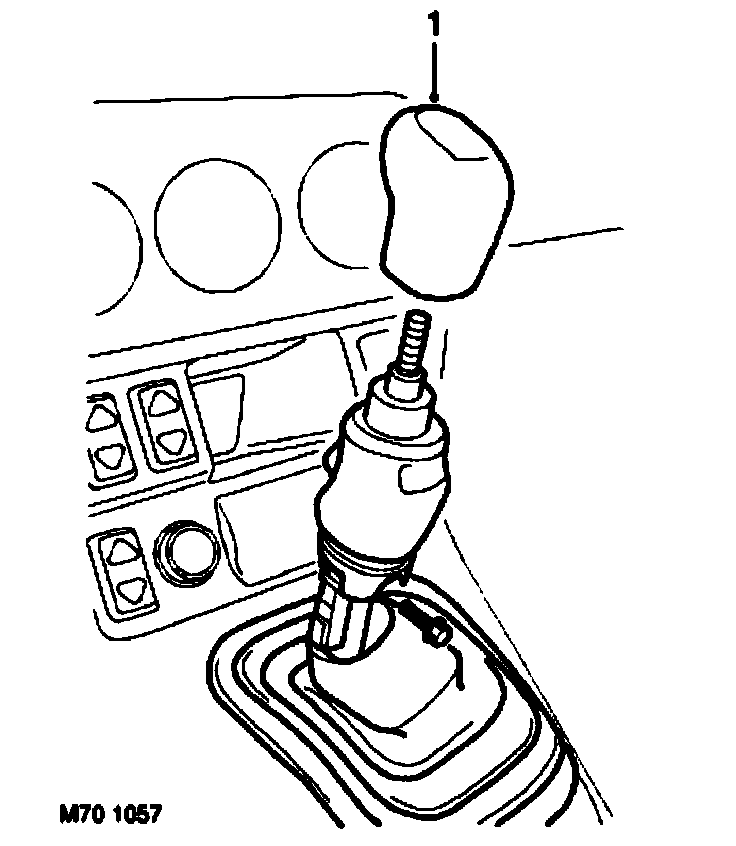

Remove gear lever knob.
2.
Release gaiter from hill descent control switch.
3.
Disconnect multiplug from switch.
4.
Remove bolt and hill descent switch.
Refit 1.
Fit hill descent switch and tighten bolt to
5 Nm (3.5 ft. lbs.) 2.
Connect multiplug.
3.
Fit gaiter.
4.
Fit gear lever knob.
