Cruise Control Servo: Service and Repair

Actuator Unit - Cruise Control - KV6

Service repair no - 19.75.05

Remove
1. Disconnect battery earth lead.
2. Remove engine acoustic cover.

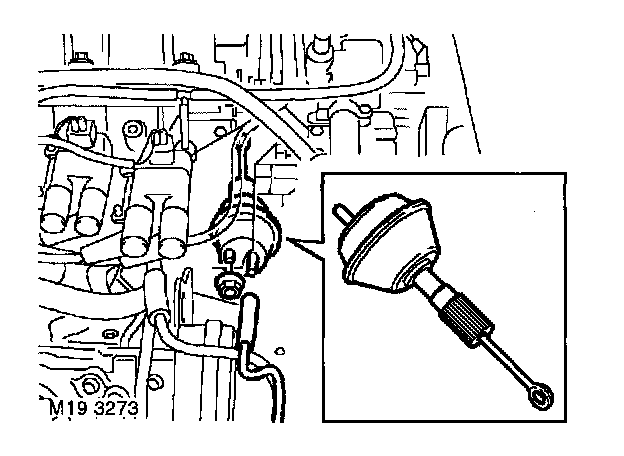

3. Disconnect vacuum hose from actuator.
4. Remove nut securing actuator to mounting bracket.
5. Release operating rod from throttle cam and remove actuator.

Refit
1. Position actuator and connect operating rod to throttle cam.
2. Position actuator into mounting bracket, fit and tighten nut.
3. Connect vacuum hose to actuator.
4. Check pull rod to retainer clearance, with lever fully returned, pull rod should just be held by retainer.
5. Release retainer by turning anti-clockwise, eliminate clearance then rotate retainer half turn clockwise. Check pull rod is just held and rotate retainer a further quarter turn clockwise to lock.
6. Fit engine acoustic cover.
7. Connect battery earth lead.
