Switch - Multi-Purpose
Switch - Multi-Purpose
Service repair no - 19.76.33

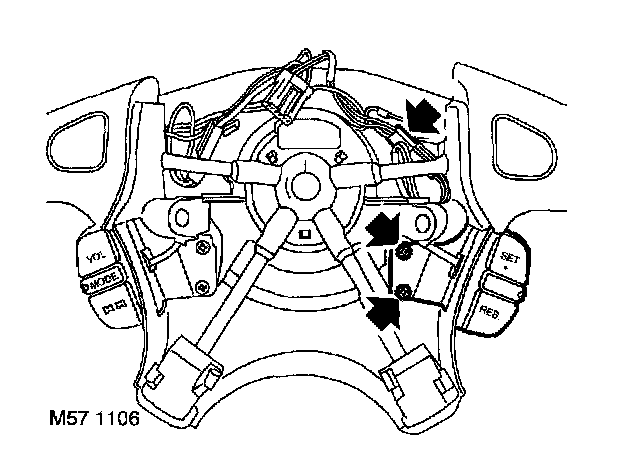

Remove 1.
Remove airbag module from steering wheel.
2.
Release
cruise control switch leads from clip and disconnect multiplug.
3.
Remove 2 screws securing
cruise control switch and remove switch.
Refit 1.
Fit
cruise control switch and secure with screws.
2.
Connect switch multiplug and fit leads in clip.
3.
Fit drivers airbag.
