Vacuum Pump: Service and Repair
Vacuum Pump - Cruise Control - KV6
Service repair no - 19.75.06
Remove 1.
Remove battery carrier.
2.

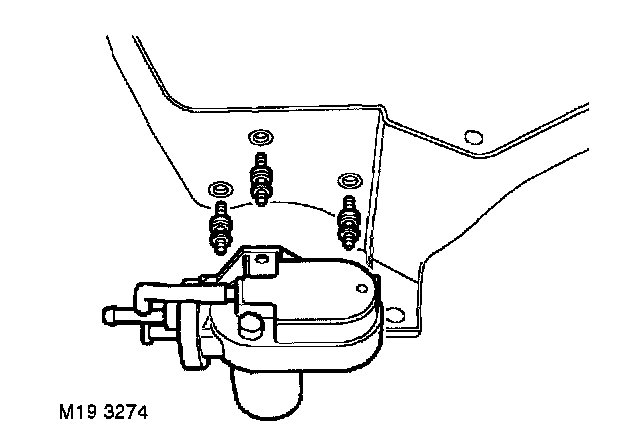

Release 3 rubber mountings securing vacuum pump to battery carrier and remove vacuum pump.
3.
Remove 3 rubber mountings from vacuum pump.
Refit 1.
Fit rubber mountings to vacuum pump.
2.
Position vacuum pump to battery carrier and secure with rubber mountings.
3.
Fit battery carrier.
