Carrier - Battery




Remove
1. Remove battery.

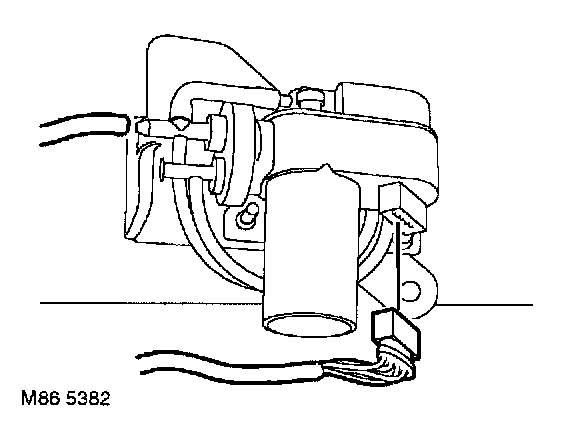

2. Models with cruise control: Disconnect multiplug and hose from cruise control vacuum pump.

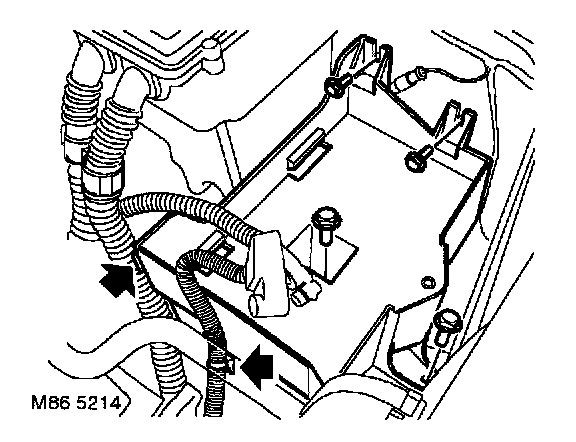

3. Release harness clips from battery carrier.
4. Remove 4 bolts and remove battery carrier.







5. Models with cruise control: Remove cruise control vacuum pump and mountings from battery carrier.

Refit
1. Models with cruise control: Fit mountings and cruise control vacuum pump to battery carrier.
2. Fit battery carrier and tighten bolts to 10 Nm (7.5 lbf.ft).
3. Secure harness clips to battery carrier.
4. Models with cruise control: Connect multiplug and hose to cruise control vacuum pump.
5. Fit battery.
