Neutral Safety Switch: Adjustments

Inhibitor switch - adjust
Adjust
1. Set gear selector lever to 'N' position.





2. Loosen 2 bolts securing inhibitor switch to gearbox casing.

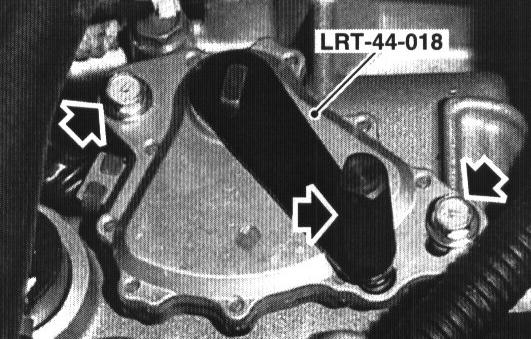

3. Fit tool LRT-44-018 to selector lever on gearbox, rotate inhibitor switch sufficient to insert tool alignment pin through tool lever into inhibitor switch.
4. Tighten inhibitor switch bolts to 3 Nm (2.2 ft. lbs.) and remove LRT-44-018.
5. Check that the engine will start in 'P' and 'N' positions and is inhibited when drive positions are selected.
