Light Check Module (LCM)
Light Check Module (LCM)Service repair No - 86.77.02Remove 1.
Remove RH lower 'A' post finisher.
2.
Remove screw securing LCM to 'A' post.
3.

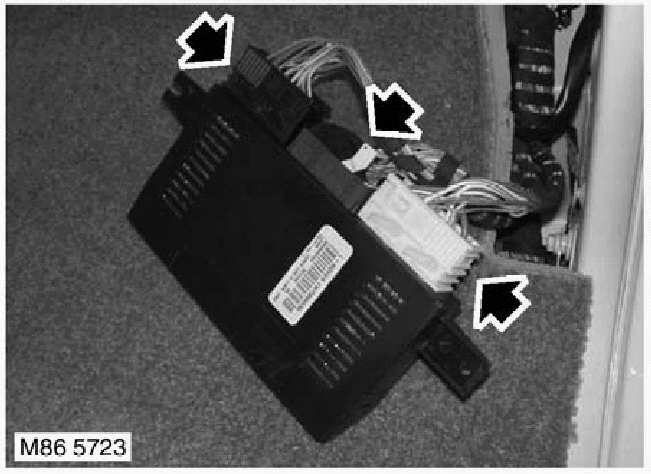

Release LCM from mounting and disconnect multiplugs.
4.
Remove LCM.
Refit 1.
Position LCM and connect multiplugs.
2.
Fit LCM and secure with screw.
3.
Fit RH lower 'A' post finisher.
4.
Initiate new LCM using TestBook/T4.
