Trim Casing - Body Side - Rear - 3 Door

76.13.57 Trim Casing - Body Side - Rear - 3 Door

Remove

1. Remove rear seat.

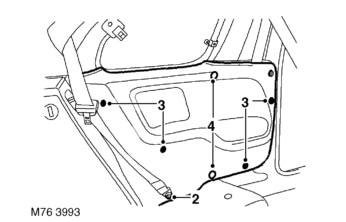

2. Remove Torx bolt securing rear seat belt lower fixing to body and position seat belt aside.
3. Remove 4 Torx bolts securing trim casing to body.
4. Release 2 trim clips and trim casing.







5. Disconnect multiplug from tweeter if fitted.
6. Remove trim casing.
Do not carry out further dismantling if component is removed for access only

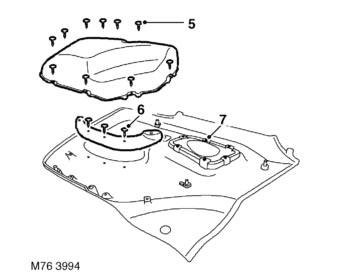

7. Noting the position of the 3 long screws, remove 10 Torx screws and remove pocket from trim casing.
8. Remove 3 screws securing pocket finisher to trim casing and remove finisher.
9. Release 6 tags and remove speaker grille.

Refit

1. Position speaker grille on replacement casing and secure tags.
2. Fit pocket finisher and secure with screws.
3. Fit pocket and secure with Torx screws.
4. Fit trim clips to trim casing.
5. Position trim casing and if fitted connect tweeter multiplug.
6. Fit trim casing to body and secure with clips and Torx screws.
7. Fit seat belt lower fixing and tighten Torx bolt to 50 Nm (37 lbf.ft).
8. Fit rear seat.
