Trim Finisher - 'B' Post - Lower - 5 Door

76.13.29 Trim Finisher - 'B' Post - Lower - 5 Door

Remove

1. Remove front seat cushion side finisher.

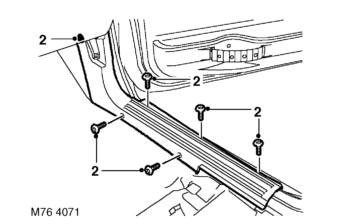

2. Remove scrivet and 5 Torx screws securing front carpet retainer and remove carpet retainer.







3. Release 'B/C' post upper finisher.

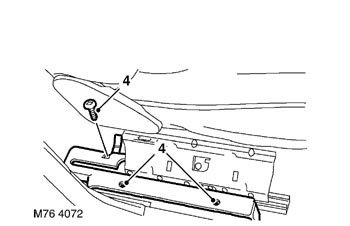

4. Remove 3 Torx screws from top of seat base finisher.

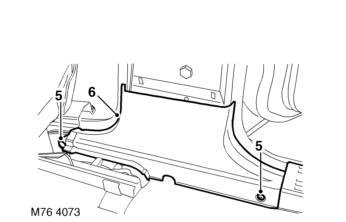

5. Remove scrivet and Torx screw from 'B/C' post lower finisher.
6. Release and remove 'B/C' post lower finisher from seat base finisher.

Refit

1. Locate 'B/C' post lower finisher under seat base finisher and rear carpet retainer.
2. Fit scrivet and Torx screw to 'B/C' post lower finisher.
3. Fit Torx screws to seat base finisher.
4. Align and secure 'B/C' post upper finisher.
5. Fit front seat cushion side finisher.
6. Fit carpet retainer and secure with Torx screws and scrivet.
