Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2005
>>
Freelander (LN) V6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Relay
Wiper Relay

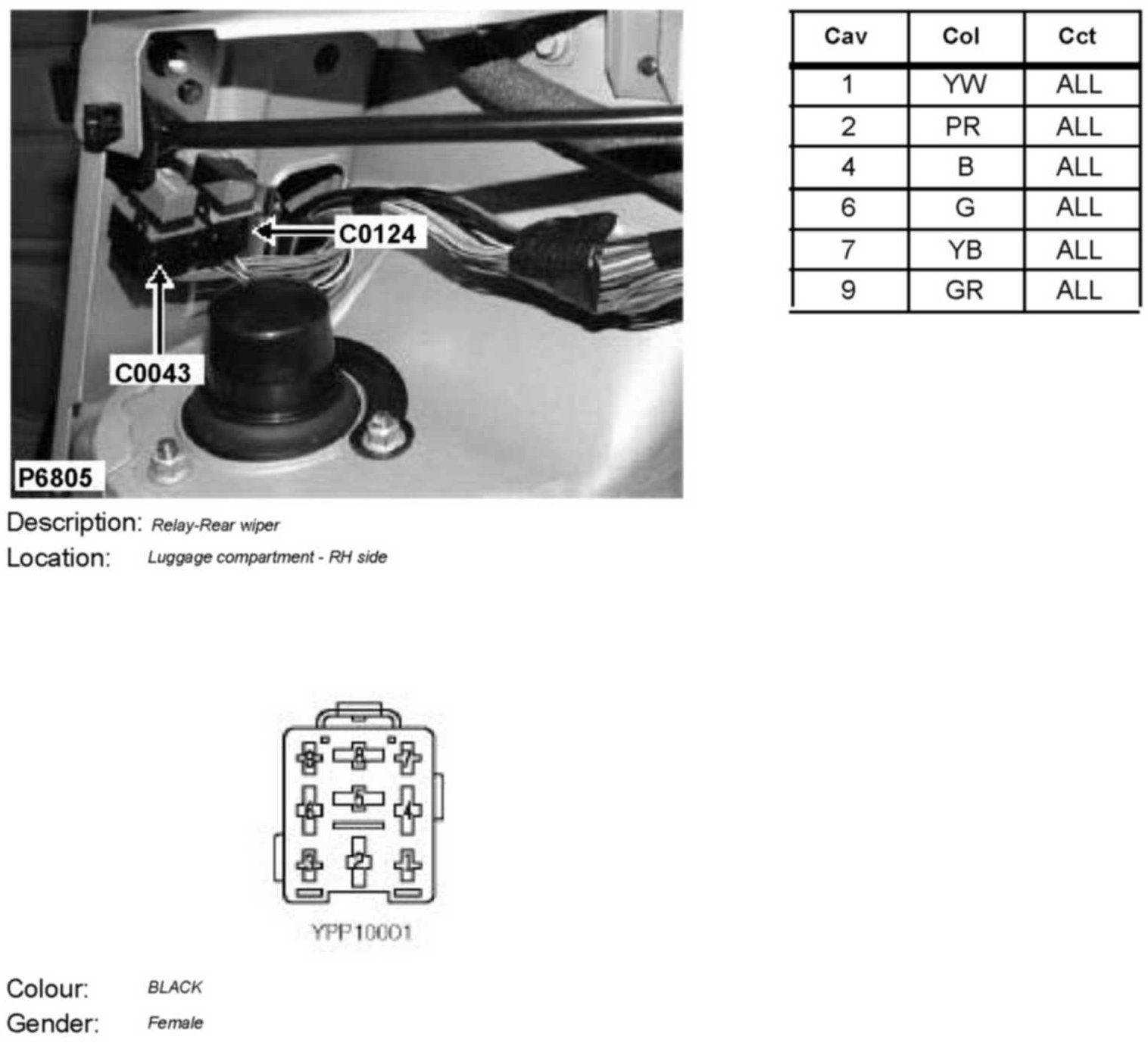

Relay-Rear Wiper
C0124:
