Engine - Components

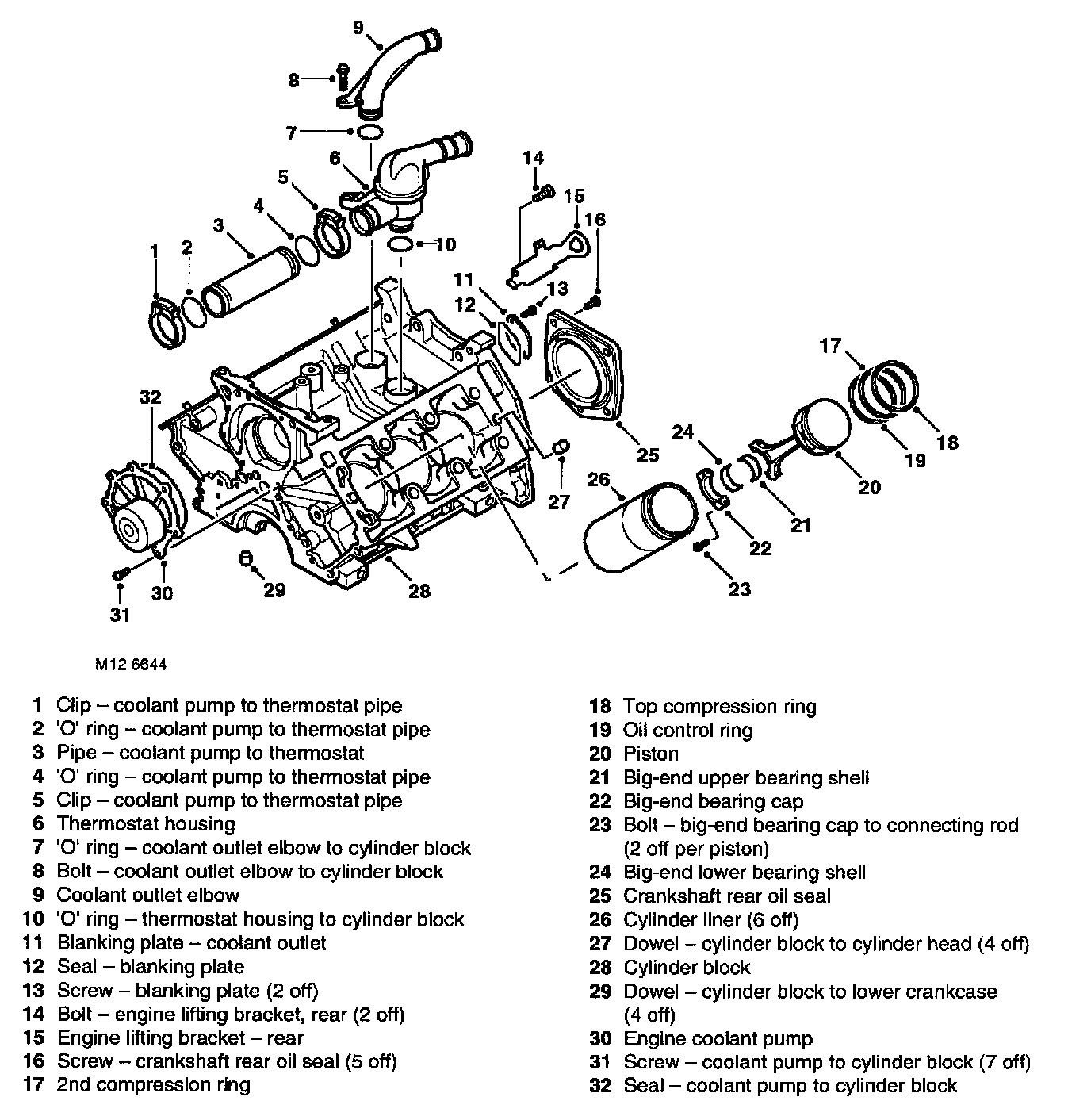

KV6 Engine-Cylinder Block Components

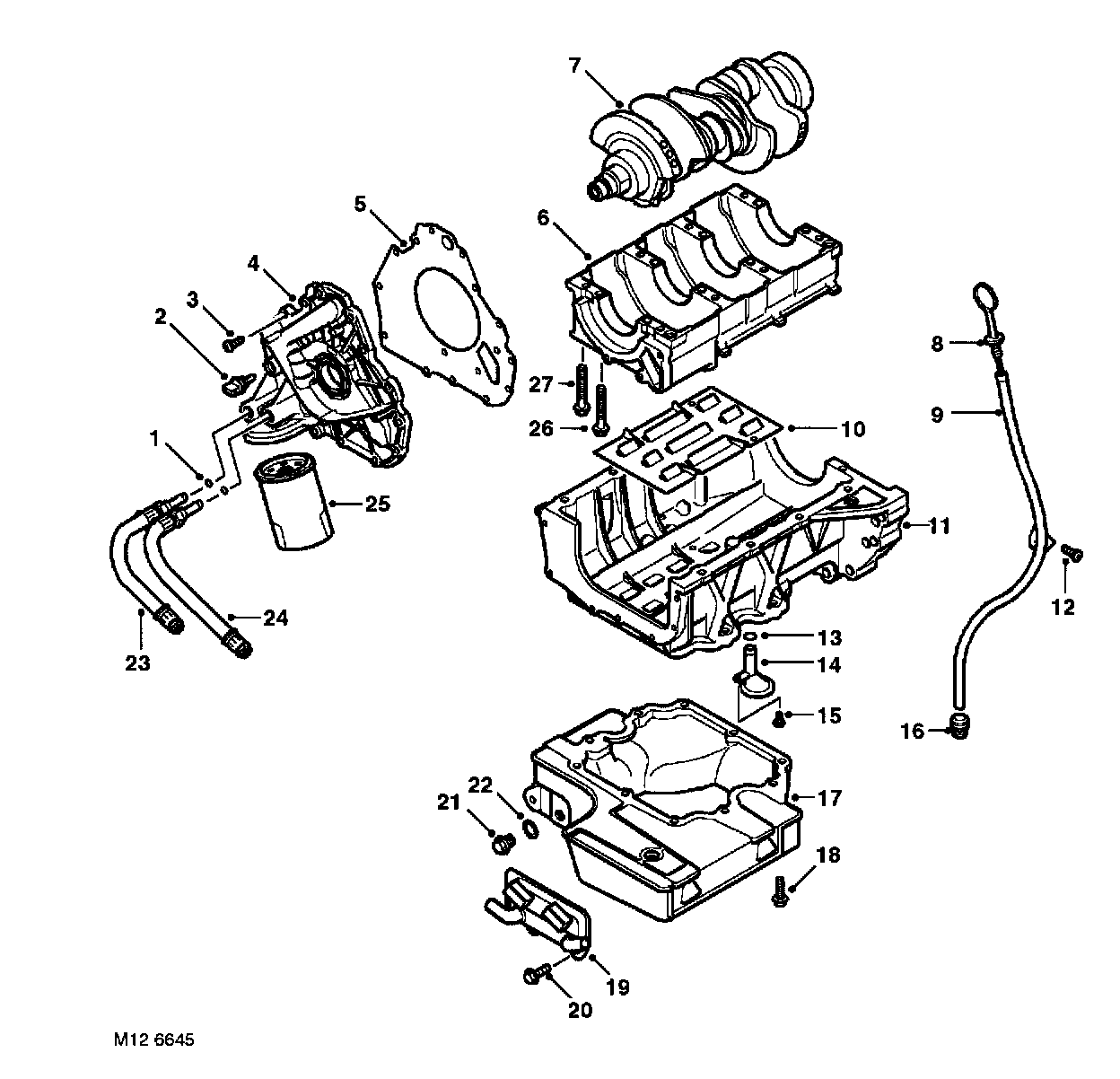

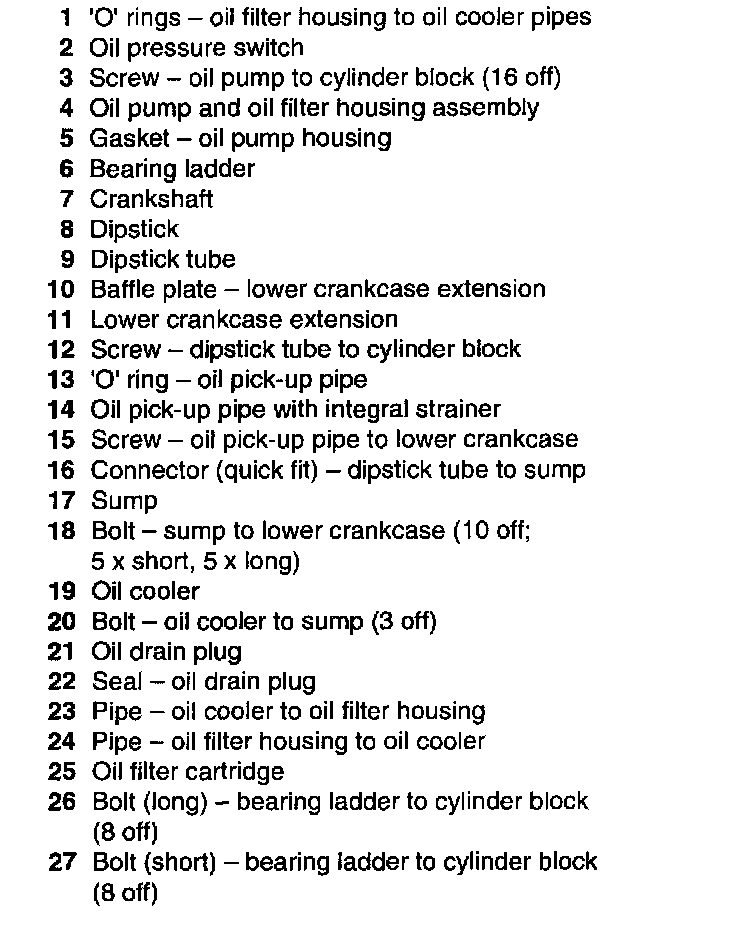

KV6 Engine-Crankshaft, Sump and Oil Pump Assembly Part 1 of 2





KV6 Engine-Crankshaft, Sump and Oil Pump Assembly Part 2 of 2

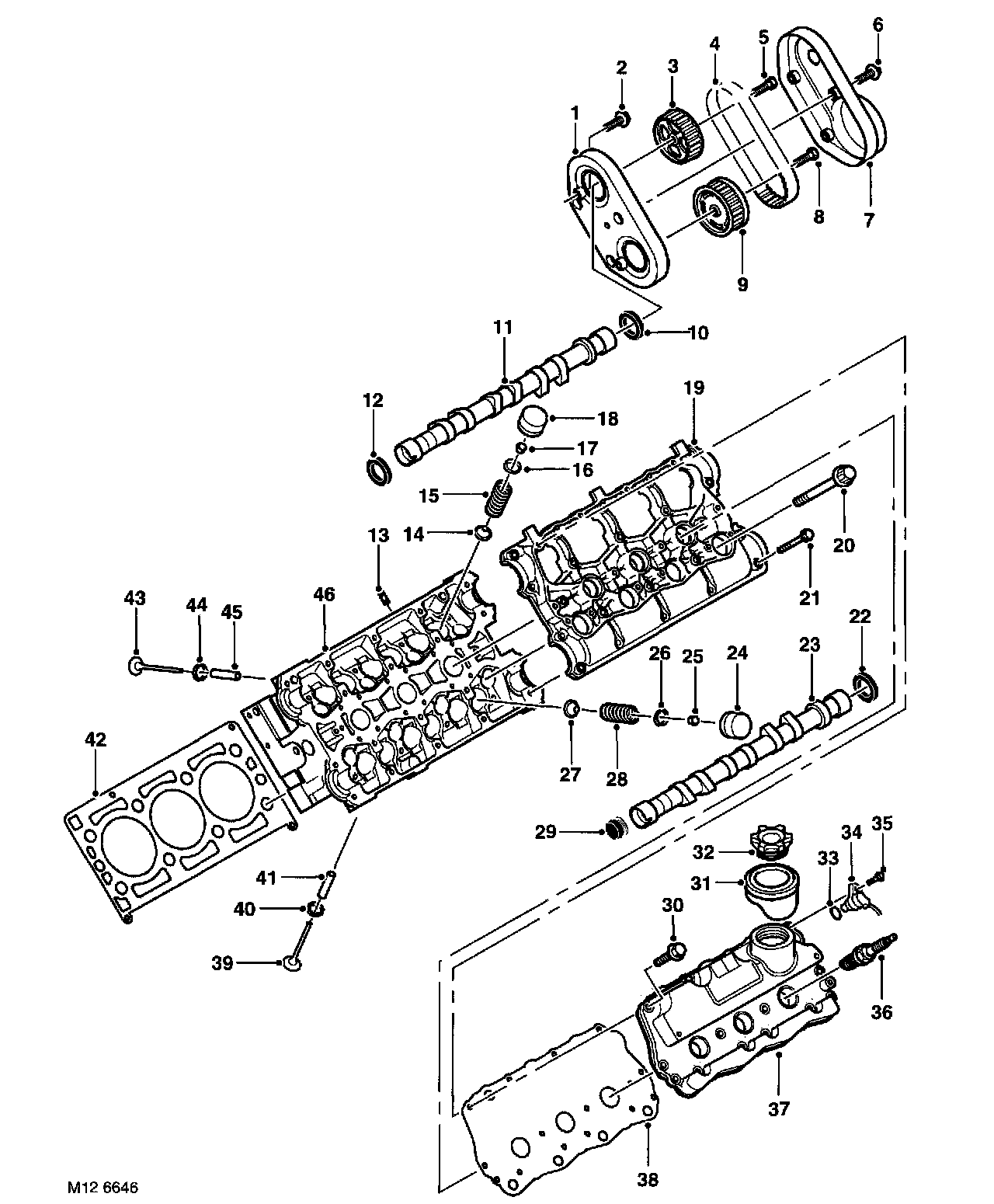

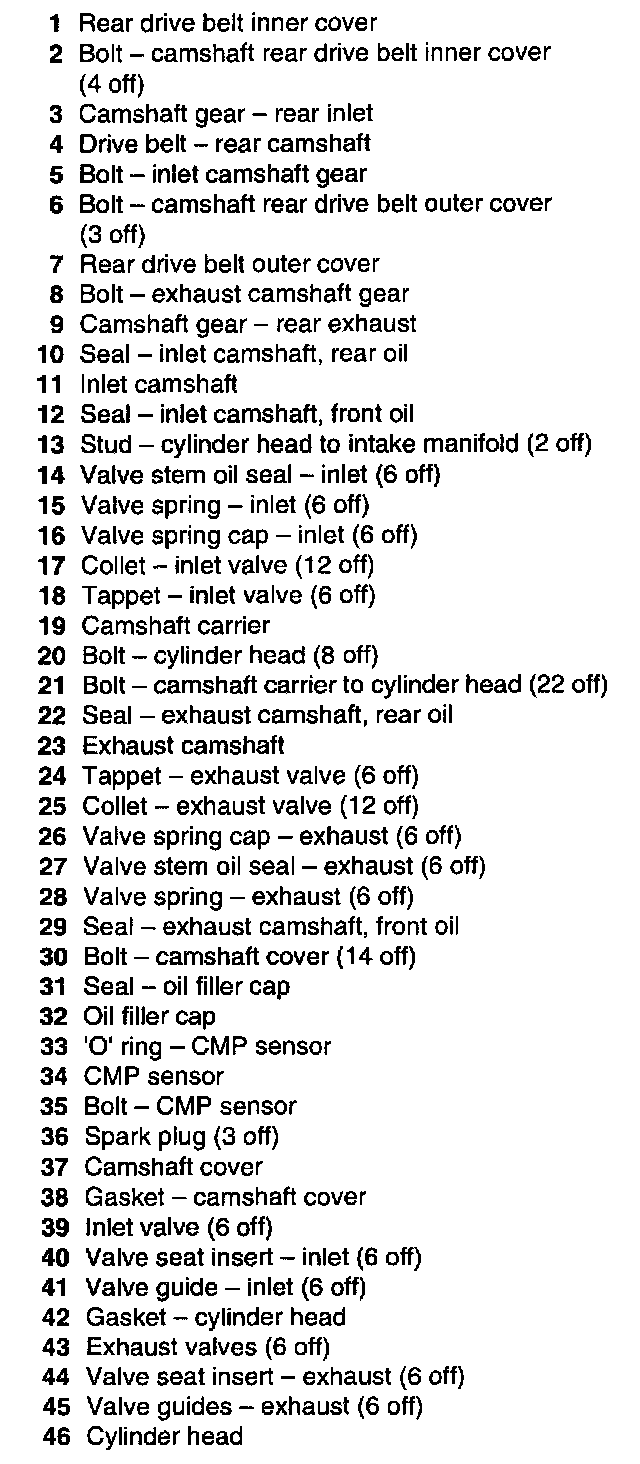

KV6 Engine-Cylinder Head Components Part 1 of 2





KV6 Engine-Cylinder Head Components Part 2 of 2

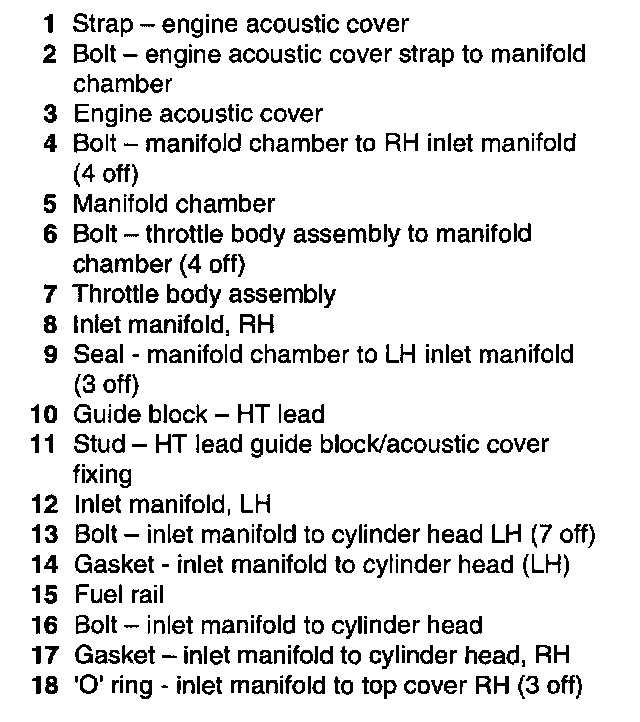

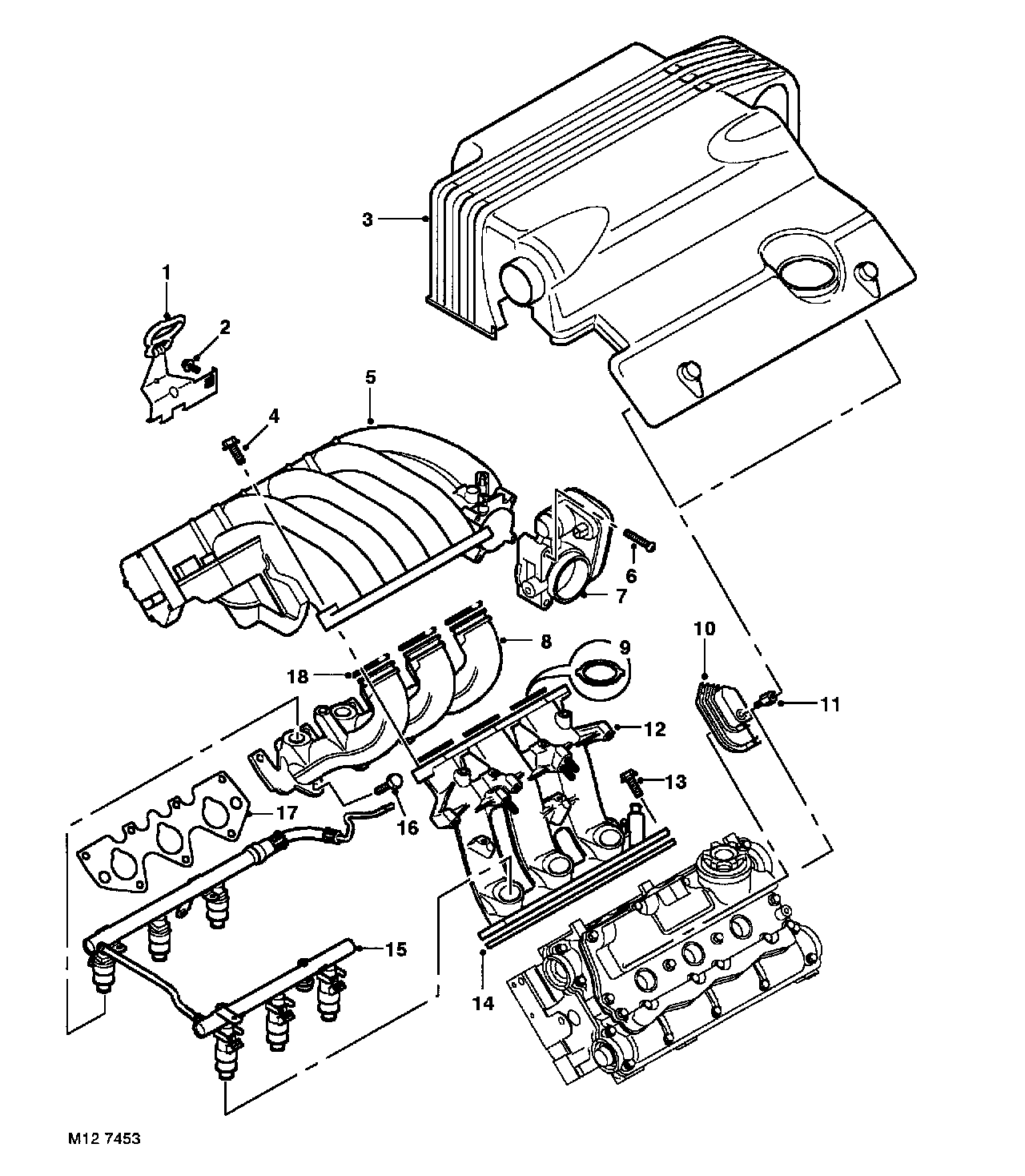

KV6 Engine-Manifolds and Engine Cover Components (NAS) Part 1 of 2





KV6 Engine-Manifolds and Engine Cover Components (NAS) Part 2 of 2





KV6 Engine-Camshaft Drive Belt Components
