Mode $06 Data

Mode $06 Data
Mode $06 enables access to the most current diagnostic results and thresholds of non-continuous diagnostic routines. A Component Identifier (CID) identifies each individual parameter.

Following a power fail or after a delete error memory (Mode $03) request all values will be set to $00.

TID $00
Identifies the TID services supported by the ECM, 0 = No, 1 = Yes.

Data B
Bit 7 = 1 = TID $01 - Catalyst conversion efficiency
Bit 6 = 1 = TID $02 - Oxygen Sensors
Bit 5 = 0 = TID $03 - Secondary Air Injection: not supported
Bit 4 = 0 = TID $04 - Exhaust Gas Recirculation (EGR) System: not supported
Bit 3 = 1 = TID $05 - Evaporative Emission Loss Control System
Bit 2 = 1 = TID $06 - Oxygen Sensor heating: not required continuously monitored
Bit 1 = 0 = TID $07 - Electrical Catalyst heating: not equipped
Bit 0 = 0 = TID $08 - Camshaft Position Control (VANOS): not supported

Data C
Bit 7 = 0 = TID $09 - Thermostat monitoring: not supported
Bit 6 = 0 = Not Defined

Data D = $00 = Not Defined
Data E = $01 = TID $20: supported

TID $01
Catalyst conversion efficiency
2 point (switching) Oxygen Sensor control







TID $02
O2 Sensors
As mode $05

TID $03
Secondary Air Injection
Not supported

TID $04
EGR
Not supported

TID $05
EVAP Loss Control system







TID $06
O2 Sensor heating
Not required continuous monitor

TID $07
Catalyst heater
Not equipped

TID $08
VANOS
Not supported

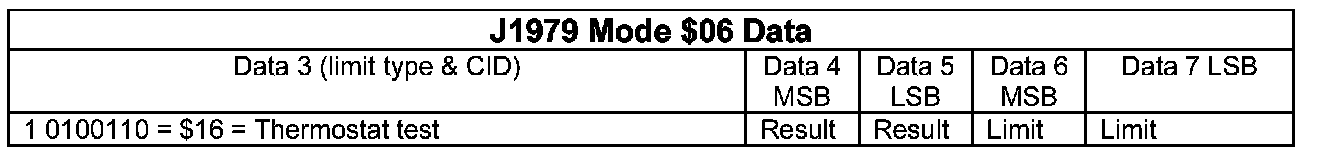

TID $09
Thermostat monitoring
