Sensors

EMS Sensors
The EMS incorporates the following sensors:
- An APP sensor.
- A Crankshaft Position (CKP) sensor.
- A Camshaft Position (CMP) sensor.
- A Mass Air Flow (MAF) sensor.
- An Intake Air Temperature (IAT) sensor.
- An Engine Coolant Temperature (ECT) sensor.
- A thermostat monitoring sensor.
- Four Heated Oxygen Sensors (HO2S).
- Two knock sensors.

APP Sensor







The APP sensor enables the ECM to determine the throttle position requested by the driver on the accelerator pedal.

The APP sensor is installed on the pedal box and consists of a twin track potentiometer with wipers driven by a linkage connected to the accelerator pedal. Each potentiometer track has a 5 volt supply and ground connection from the ECM, and produces a linear signal voltage to the ECM proportional to the position of the accelerator pedal. The signal voltage from track 1 of the potentiometer is approximately double that of the signal voltage from track 2.

From the sensor signals, the ECM determines driver demand as a percentage of pedal travel, where 0% is with the pedal released and 100% is with the pedal fully depressed. Driver demand is then used to calculate throttle angle, fuel quantity and ignition timing. The ECM also outputs driver demand on the CAN system, for use by the brake and gearbox control systems.

The ECM stores the signal values that correspond with closed and wide open throttle, and adapts to new values to accommodate component wear or replacement.

The signals from the APP sensor are monitored by the ECM for short and open circuits and plausibility. If a fault is detected, the ECM:
- Stores a related fault code in memory.
- Illuminates the SERVICE ENGINE warning lamp in the instrument pack.
- Inhibits the driver demand message on the CAN bus, which disables the Hill Descent Control (HDC) function of the ABS modulator and reduces the performance of the automatic gearbox (harsh gear changes and loss of kickdown).
- Adopts a throttle limp home mode.

The throttle limp home mode adopted depends on the nature of the fault:
- If a fault is detected with one potentiometer track, the ECM limits vehicle acceleration by limiting throttle plate opening.
- If a fault is detected with both potentiometer tracks, the ECM uses the throttle plate to run the engine at a fixed speed of 1472 rev/mm while the brake pedal is released, and idle speed (750 rev/mm) while the brake pedal is pressed or if there is a brake pedal sensor fault.
- If there is a process fault in the ECM, the ECM either uses fuel injection cut-off to limit engine speed to 1300 rev/mm or disables fuel injection to stop the engine.

CKP Sensor







The CKP sensor provides the ECM with a digital signal of the rotational speed and angular position of the crankshaft, for use in ignition timing, fuel injection timing and fuel injection quantity calculations. To determine the exact position of the crankshaft in the engine cycle, the ECM must also use the input from the CMP sensor.

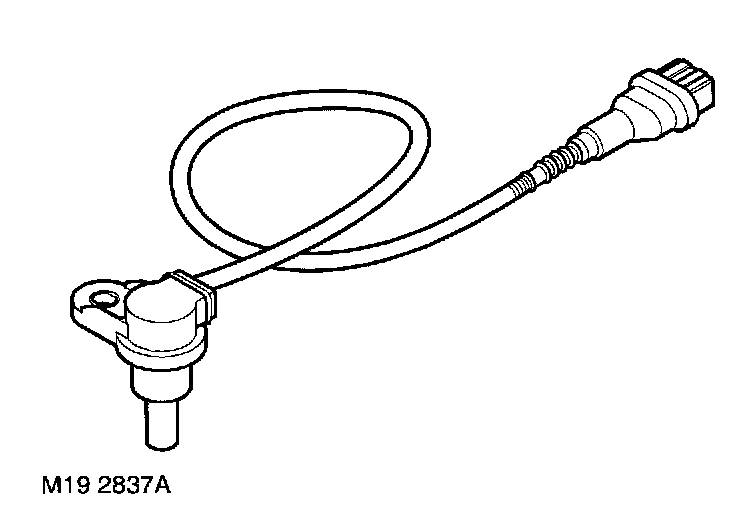

The CKP sensor is mounted on the front of the gearbox housing, in line with the outer circumference of the torque converter. The sensing tip of the CKP sensor is adjacent to a reluctor ring formed in the periphery of the torque converter. The reluctor ring has 58 teeth spaced at 60 intervals. A gap equivalent to two missing teeth, 36° After Top Dead Center (ATDC) of No.1 cylinder, provides the ECM with a reference point.

The CKP sensor operates using the Hall effect principle. A permanent magnet inside the sensor applies a magnetic flux to a semiconductor, which receives a power supply from the main relay. The output voltage from the semiconductor is fed to the ECM. As the gaps between the poles of the reluctor ring pass the sensor tip the magnetic flux is interrupted, causing a fluctuation of the output voltage and producing a digital signal.

If the CKP sensor fails the ECM immediately stops the engine.

CMP Sensor







The CMP sensor provides a signal which enables the ECM to determine the position of the camshaft relative to the crankshaft. This allows the ECM to synchronize fuel injection for start and run conditions.

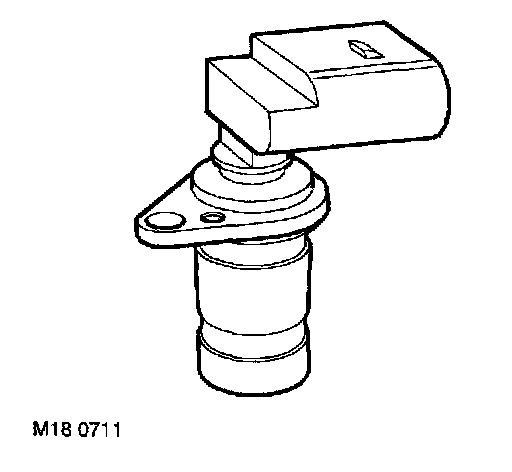

The CMP sensor is located on the camshaft cover of the LH (front) cylinder bank, at the opposite end to the camshaft drive, in line with a 'half moon' reluctor on the exhaust camshaft. The reluctor comprises a single tooth which extends around 180° of the camshaft circumference.

The CMP sensor operates using the Hall effect principle. A permanent magnet inside the sensor applies a magnetic flux to a semiconductor, which receives a power supply from the main relay. The output voltage from the semiconductor is fed to the ECM. As the gap in the reluctor passes the sensor tip, the magnetic flux is interrupted, causing a fluctuation of the output voltage and producing a digital signal.

If the CMP sensor fails during engine running, the engine will run normally until turned off, but will not restart until the CMP sensor input is restored.

MAF Sensor







The MAF sensor provides a signal which the ECM uses for engine load calculations.

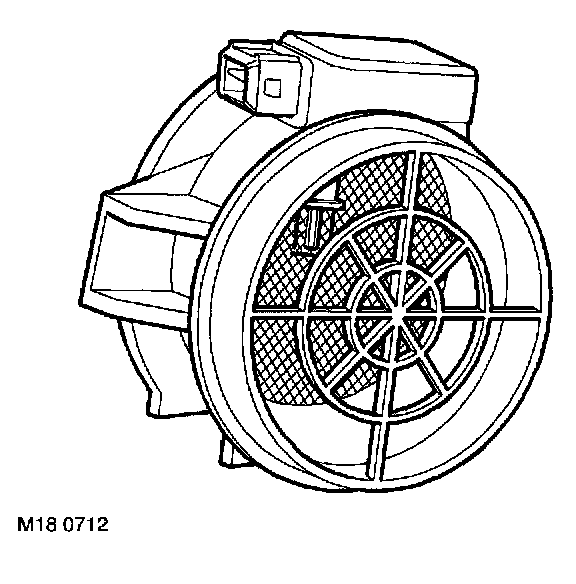

The MAF sensor is a hot film type, and is located in the intake system between the air filter housing and the throttle body.

A closed-loop control circuit in the MAF sensor maintains a thick film resistor at a constant 200 °C (392 °F) above ambient temperature. The current required to maintain the temperature of the thick film resistor, against the cooling effect of the air flowing through the sensor, provides a precise, non-linear, measure of the air mass entering the engine.

The MAF sensor receives a battery voltage power supply and generates an output signal to the ECM, between 0 and 5 volts, which is proportional to the air mass drawn into the engine.

In the event of a MAF sensor signal failure, the following symptoms may be apparent:
- During driving engine speed may dip before recovering.
- Difficult starting.
- Engine stalls after starting.
- Delayed throttle response.
- Reduced engine performance.

IAT Sensor







The IAT sensor provides a signal that enables the ECM to adjust ignition timing and fuelling quantity according to the intake air temperature, thus ensuring optimum performance, driveability and emissions.

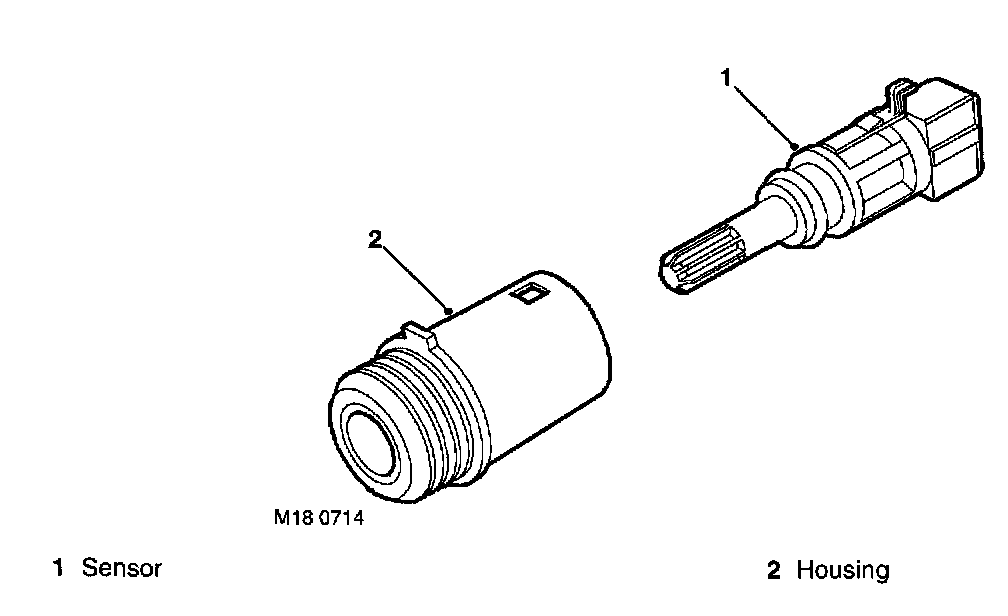

The IAT sensor is a Negative Temperature Coefficient (NTC) thermistor located in a plastic housing installed in the intake duct between the MAF sensor and the throttle body. The sensor is a push fit in the housing and sealed by an 'O' ring. A clip is integrated into the sensor to secure it in the housing.

If the input from the IAT sensor fails, the vehicle will continue to run. The ECM will substitute a default value using the information from the speed/load map to run the engine, but adaptive fuelling will be disabled.

ECT Sensor







The ECT sensor provides the ECM with a signal voltage that varies with coolant temperature, to enable the ECM to adapt the fuelling quantity and ignition timing with changes of engine temperature.

The ECT sensor is located between the cylinder banks, between cylinders 3 and 6.

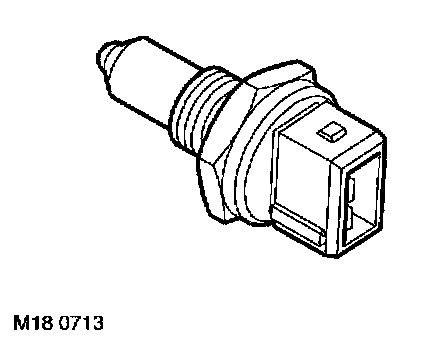

The ECT sensor consists of an encapsulated Negative Temperature Coefficient (NTC) thermistor which is in contact with the engine coolant. As the coolant temperature increases the resistance across the sensor decreases and as the coolant temperature decreases the sensor resistance increases. To determine the coolant temperature, the ECM supplies the sensor with a regulated 5 volts power supply and monitors the return signal voltage. The ECM also outputs the coolant temperature on the CAN system, to operate the coolant temperature gauge.

If the ECT signal is missing, or outside the acceptable range, the ECM assumes a default temperature reflecting a pant warm engine condition. This enables the engine to function, but with reduced driveability when cold and increased emissions, resulting from an over rich mixture, when the engine reaches normal operating temperature. The ECM will also switch on the cooling fans to prevent the engine and gearbox from overheating.

Thermostat Monitoring Sensor







The input from the thermostat monitoring sensor is used by the ECM to monitor the operation of the cooling system thermostat and to control the operation of the engine cooling fans.

The thermostat monitoring sensor is a NTC thermistor installed in a plastic 'T' piece in the radiator bottom hose. The sensor is a push fit in the T piece and sealed by an 'O' ring. A clip is integrated into the sensor to secure it in the T piece.

HO2S

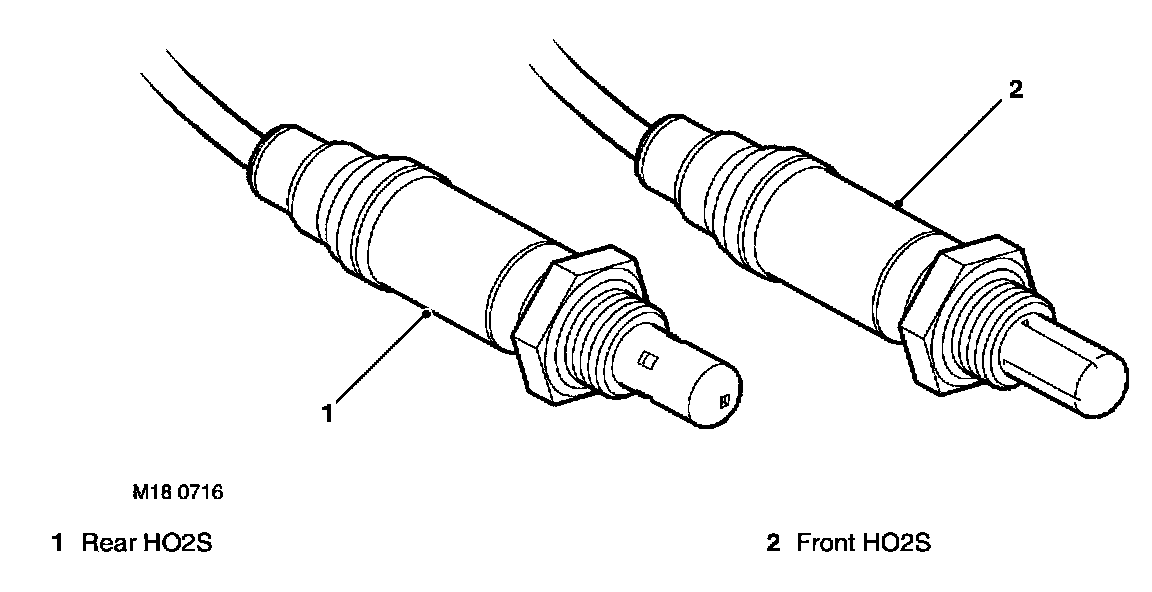

The EMS has four HO2S:
- One upstream of each catalytic converter, identified as LH and RH front HO2S.
- One downstream of each catalytic converter, identified as LH and RH rear HO2S.

The LH and RH front HO2S enable the ECM to determine the AFR of the mixture being burned in each cylinder bank of the engine. The LH and RH rear HO2S enable the ECM to monitor the performance of the catalytic converters and the front oxygen sensors, and trim fuel.

Each HO2S consists of a sensing element with a protective ceramic coating on the outer surface. The outer surface of the sensing element is exposed to the exhaust gas, and the inner surface is exposed to ambient air. The difference in the oxygen content of the two gases produces an electrical potential difference across the sensing element. With a rich mixture, the low oxygen content in the exhaust gas results in a higher sensor voltage. With a lean mixture, the high oxygen content in the exhaust gas results in a lower sensor voltage.

During closed loop control, the voltage of the two front HO2S switches from less than 0.3 volt to more than 0.5 volt. The voltage switches between limits every two to three seconds. This switching action indicates that the ECM is varying the AFR within the Lambda window tolerance, to maximize the efficiency of the catalytic converters.

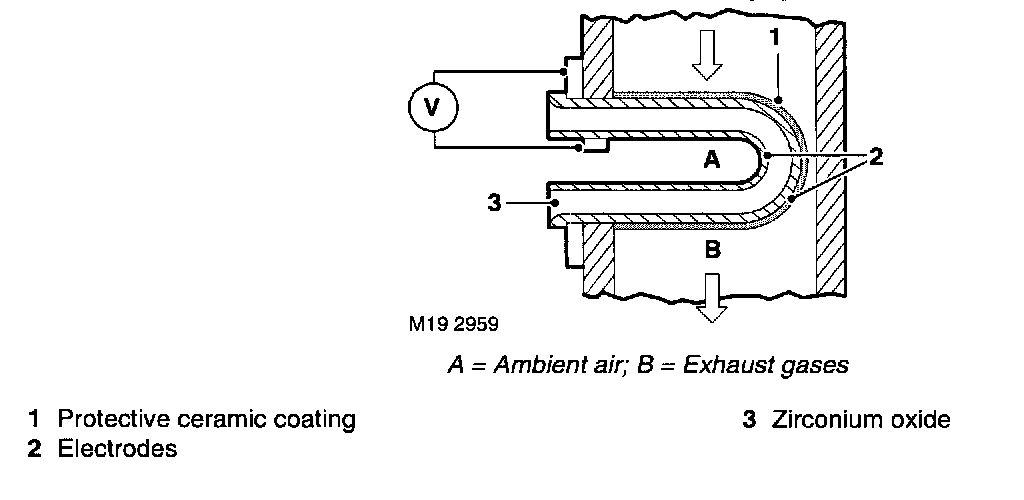

Sectioned View Of HO2S:

The material of the sensing element only becomes active at a temperature of approximately 300 °C (570 °F). To shorten the warm uptime and minimize the emissions from a cold start and low load conditions, each HO2S contains a heating element powered by a supply from the main relay. The earth paths for the heating elements are controlled by the ECM. On start up, the current supplied to the heating elements is increased gradually to prevent sudden heating from damaging the ceramic coating. After the initial warm up period the ECM modulates the earth of the heating elements, from a map of engine speed against mass air flow, to maintain the HO2S at the optimum operating temperature.

The nominal resistance of the heating elements is 6 ohms at 20 °C (68 °F).

If an HO2S fails, the ECM illuminates the MIL. If a front HO2S fails the ECM also adopts open loop fuelling and catalytic converter monitoring is disabled. If a rear HO2S fails, catalytic converter and front HO2S monitoring is disabled.

Knock Sensors







The knock sensors enable the ECM to operate the engine at the limits of ignition advance, for optimum efficiency, without combustion knock damaging the engine. The ECM uses two knock sensors, one for each cylinder bank, located between the cylinder banks on cylinders 3 and 4.

The knock sensors consist of piezo ceramic crystals that oscillate to create a voltage signal. During combustion knock, the frequency of crystal oscillation increases, which alters the signal output to the ECM. The ECM compares the signal to known signal profiles in its memory. If the onset of combustion knock is detected the ECM retards the ignition timing for a number of cycles. When the combustion knock stops, the ignition timing is gradually advanced to the original setting.

The knock sensor leads are of different lengths to prevent incorrect installation.
