Battery - Disconnect Unit (SRS) - Deployment - In Vehicle

Battery - Disconnect Unit (SRS) - Deployment - In Vehicle

Service Repair No - 76.74.21

These guidelines are written to aid authorized personnel to carry out the safe disposal of airbag modules.

Deploy

WARNING: It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

1. Make the SRS system safe.

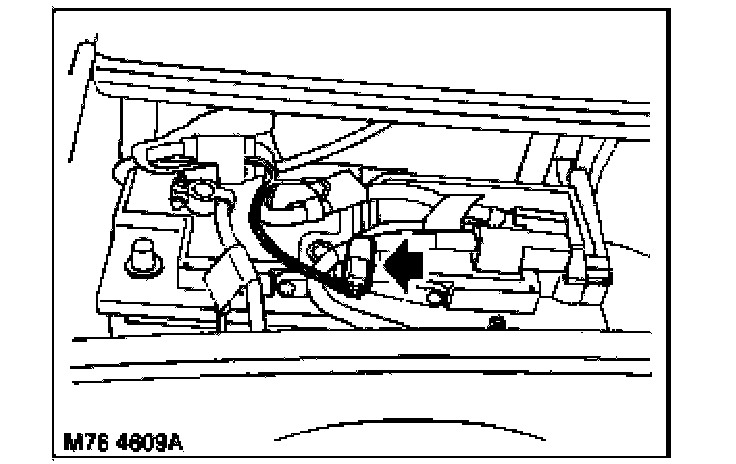

2. Disconnect multiplug from battery disconnect unit.
3. Check condition of deployment tool LRT-86-003 and associated fly leads.

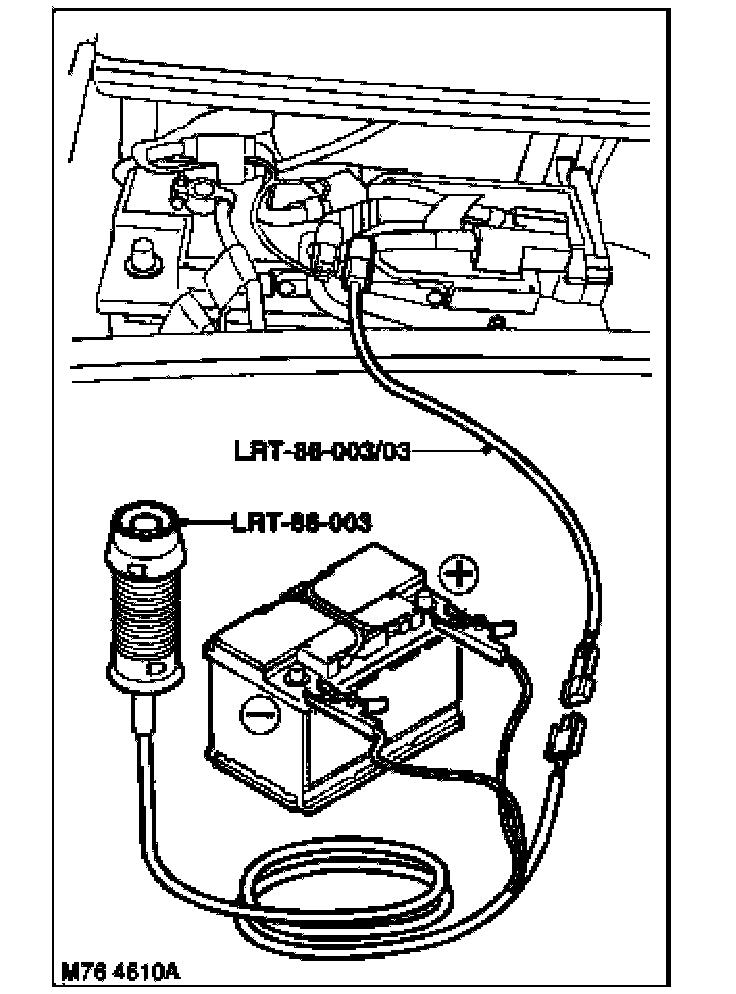

4. Connect deployment tool fly lead LRT-86-003/03 to battery disconnect unit.
5. Connect deployment tool LRT-86-003 to deployment tool fly lead LRT-86-003/03.
6. Connect deployment tool LRT-86-003 to battery.

WARNING: Ensure all personnel are at least 15 meters (50 feet) away from the airbag module.

7. Press deployment tool operating button to deploy battery disconnect unit.
8. Disconnect deployment tool from battery.

WARNING: During deployment parts of the airbag module become hot enough to burn you. Wait 30 minutes after deployment before touching the airbag module.

9. Disconnect deployment tool fly lead from battery disconnect unit.

CAUTION: Do not re-use or salvage any parts of the SRS system.

NOTE: Do not transport deployed SRS components in the vehicle passenger compartment.
