Navigation System Compact Disc (CD) Unit



Navigation System Compact Disc (CD) Unit

Removal
1. Disconnect the battery ground cable.
2. Make the SRS system safe.
3. Remove the LH front seat.

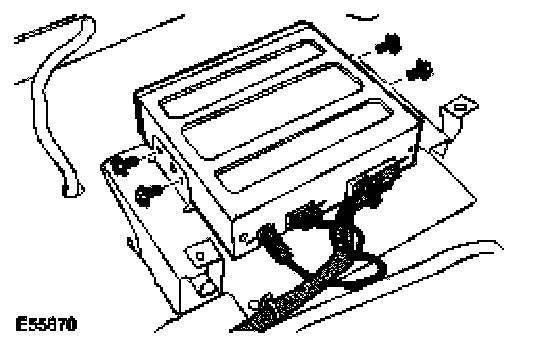

4. Remove the CD unit.
^ Remove the 4 bolts.
^ Disconnect the antenna cable.
^ Disconnect the 2 electrical connectors.





Installation
1. Install the CD unit.
^ Tighten the bolts to 6 Nm (4 ft. lbs.).
^ Connect the electrical connectors.
^ Connect the antenna cable.

2. Install the LH front seat.
3. Connect the battery ground cable.
