Air Bag Control Module

Restraints Control Module (RCM)

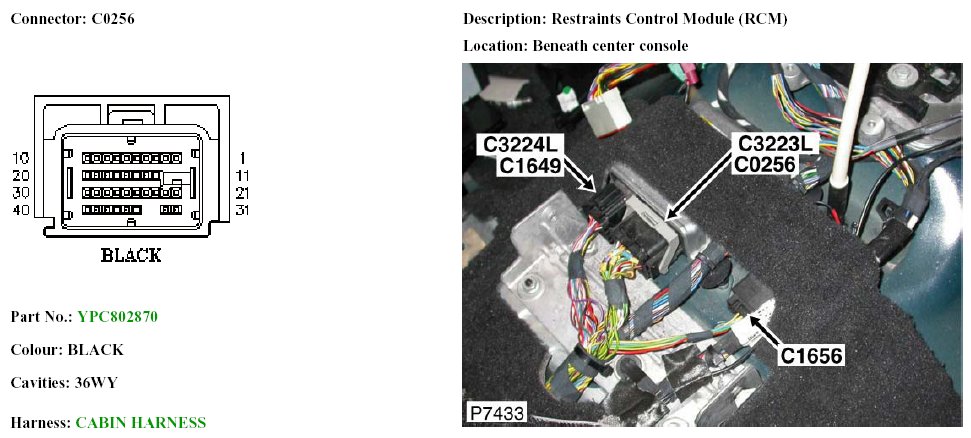

C0256 (Part 1):

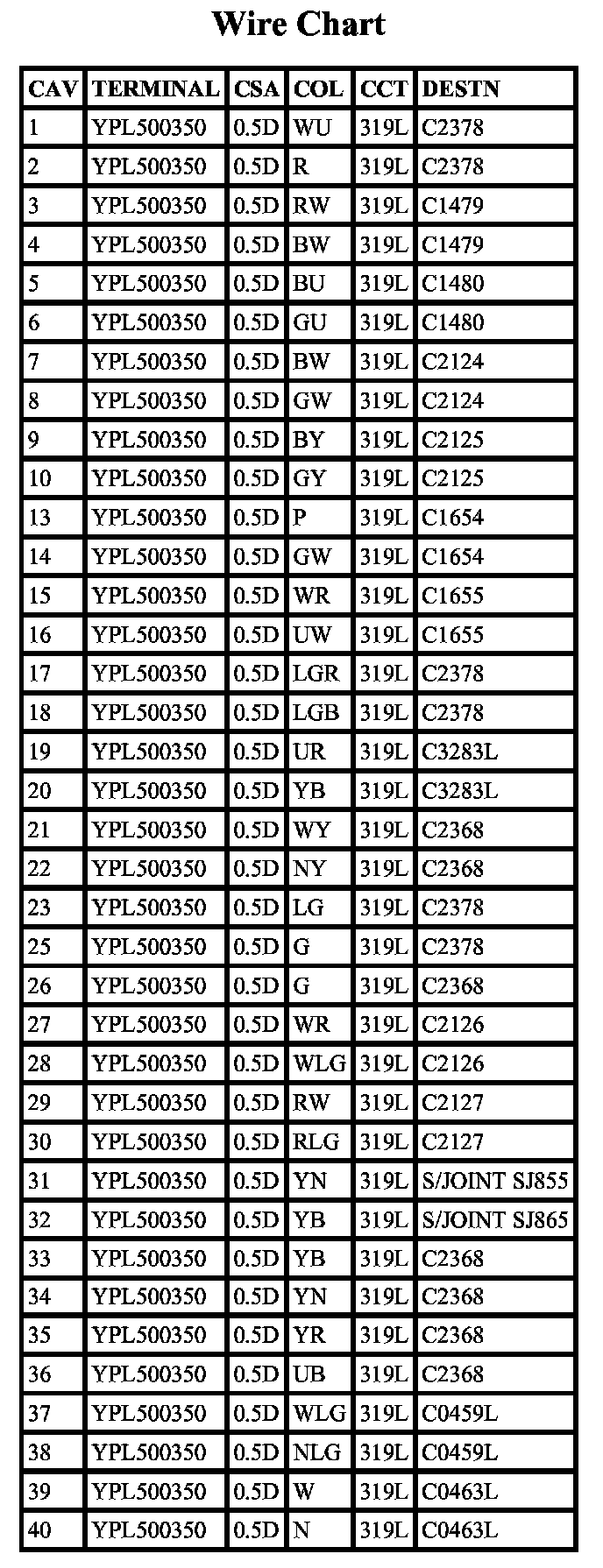

C0256 (Part 2):

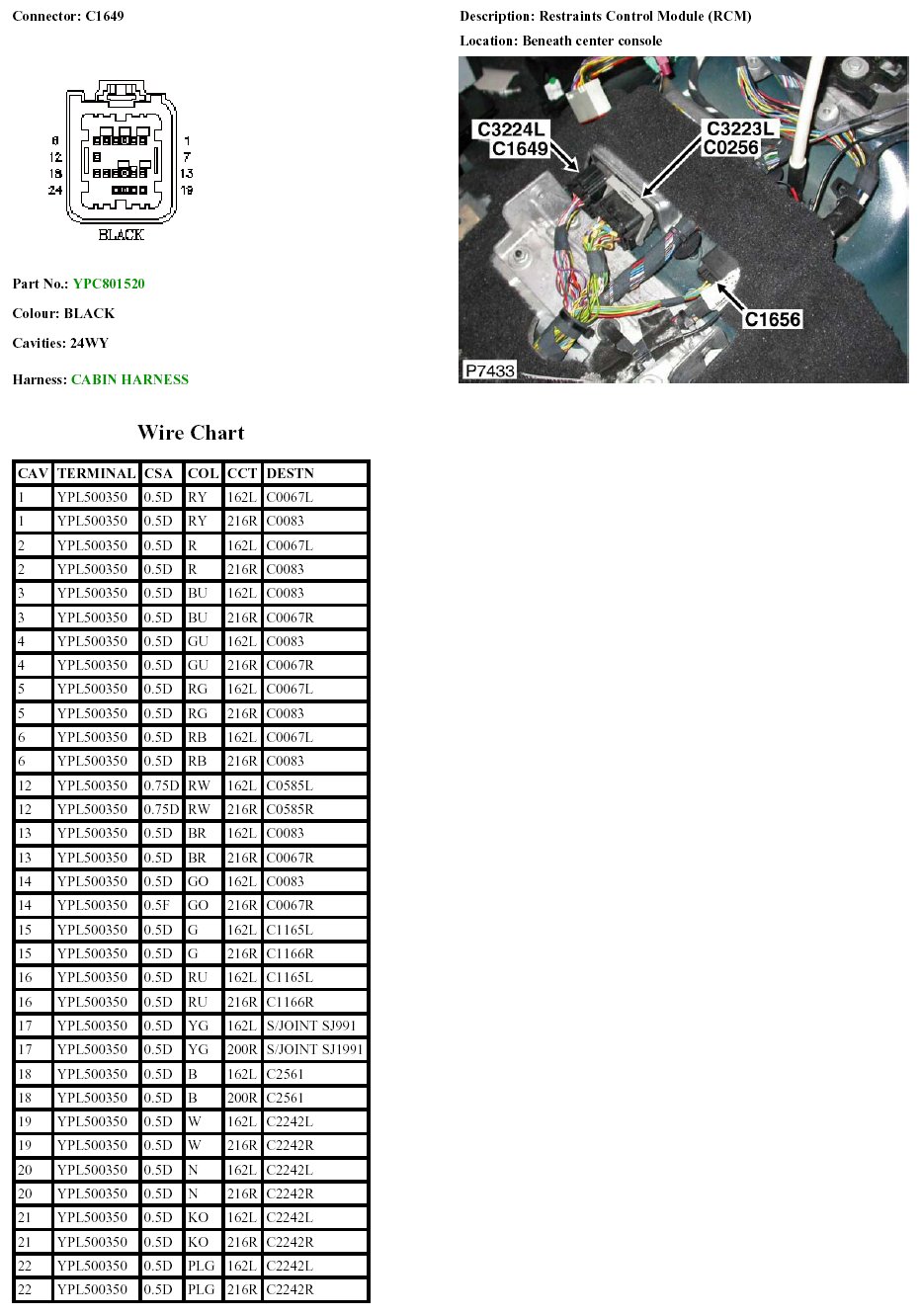

C1649:

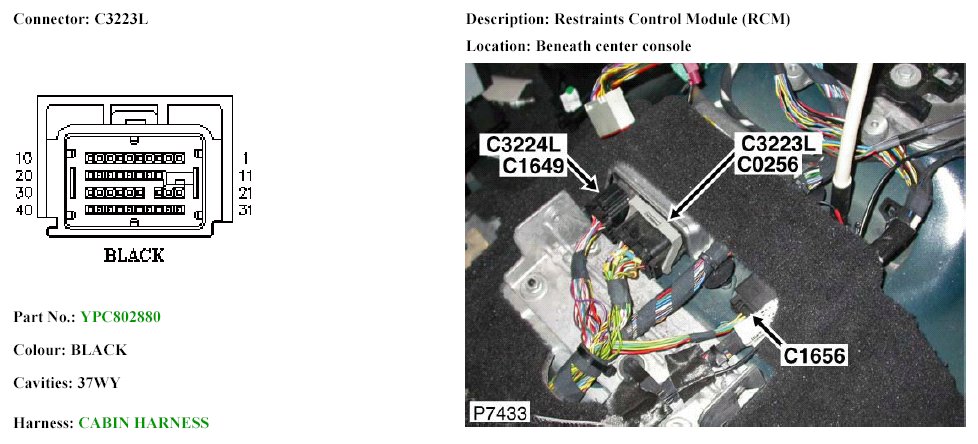

C3223L (Part 1):

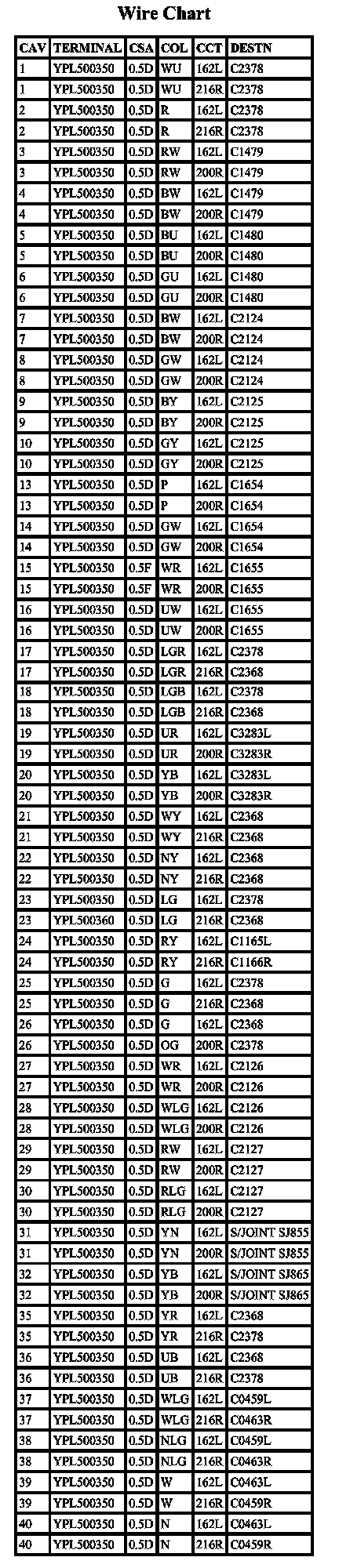

C3223L (Part 2):

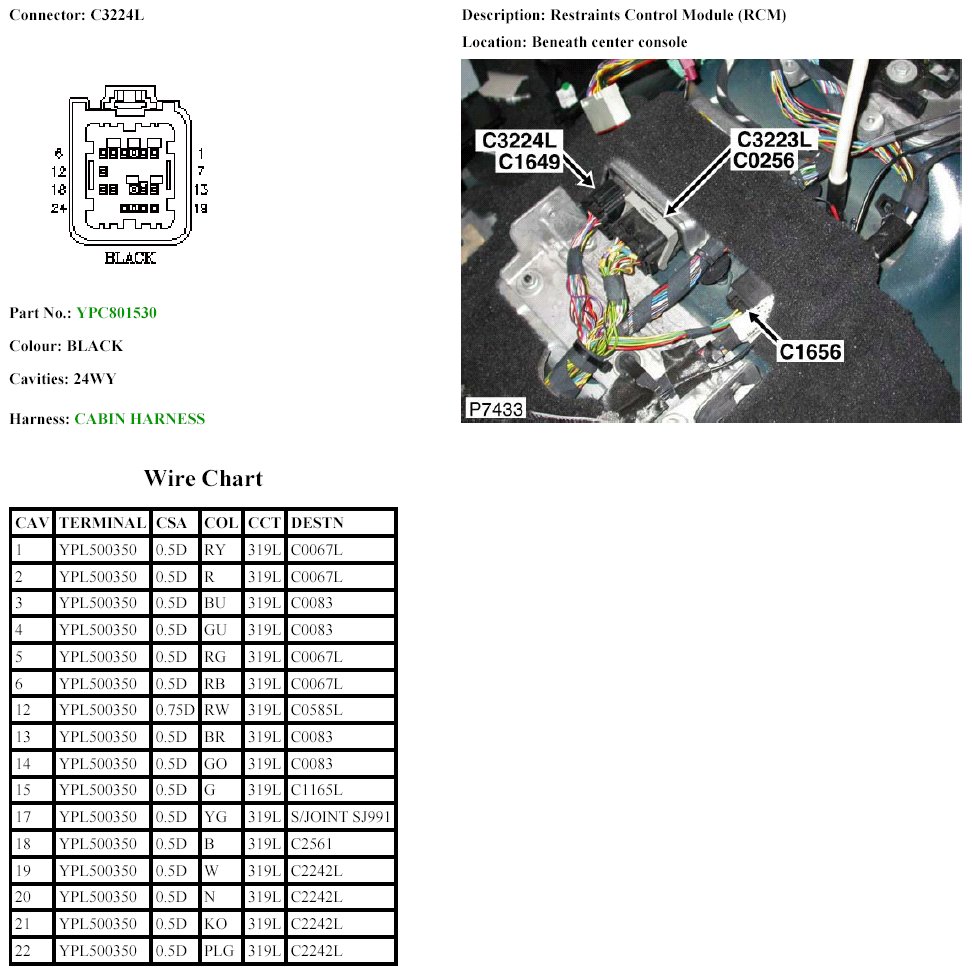

C3224L:
