Alarm Module, (Vehicle Antitheft)
Manuals through 2025 now available!
Our trusted friends have launched a new website named LEMON, which has newer manuals. It also contains all the CHARM manuals.
LEMON is the logical successor to CHARM, I recommend you try it!
Link:
lemon-manuals.la
Alarm Module, (Vehicle Antitheft)

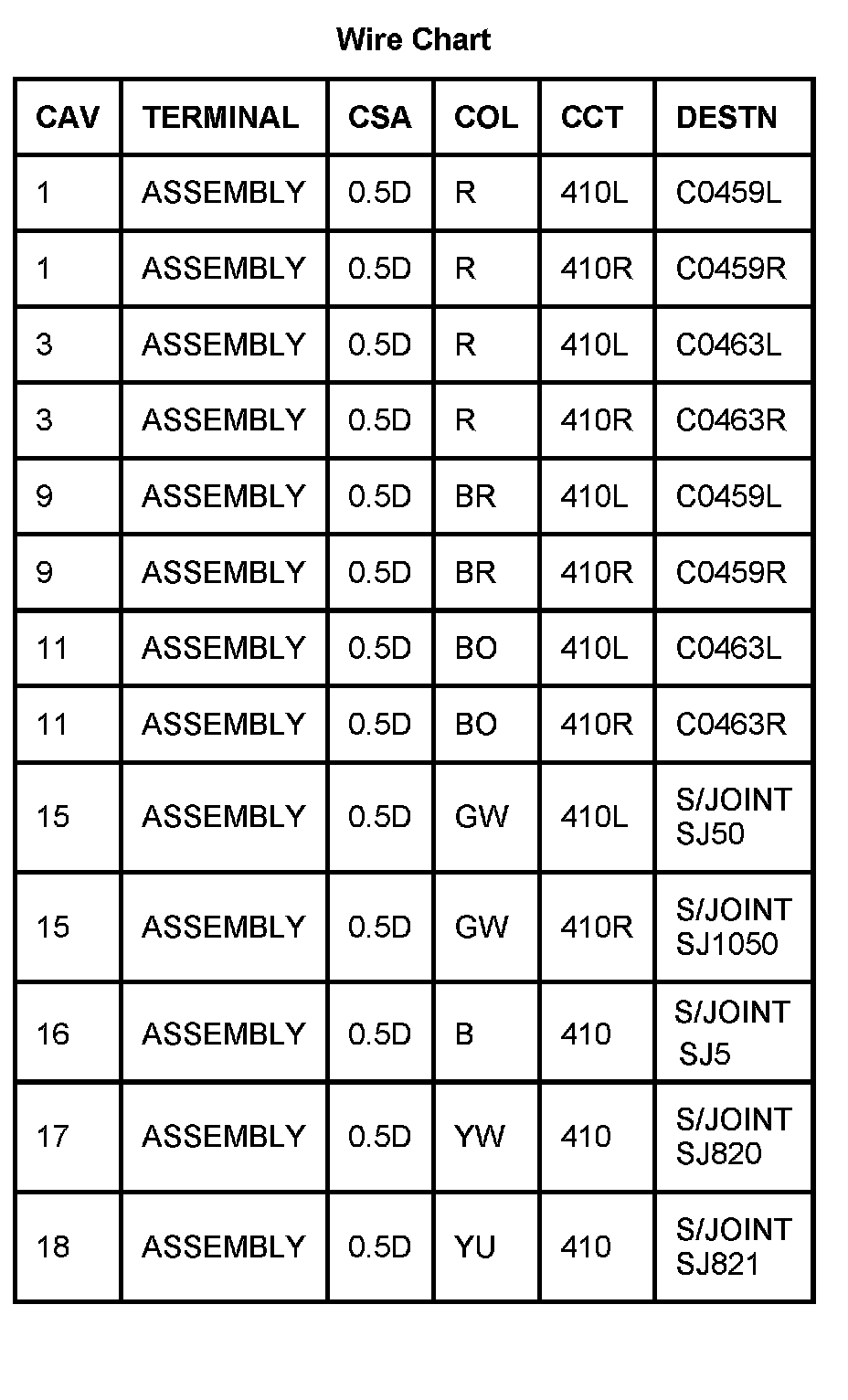

C2160 (Part 2):

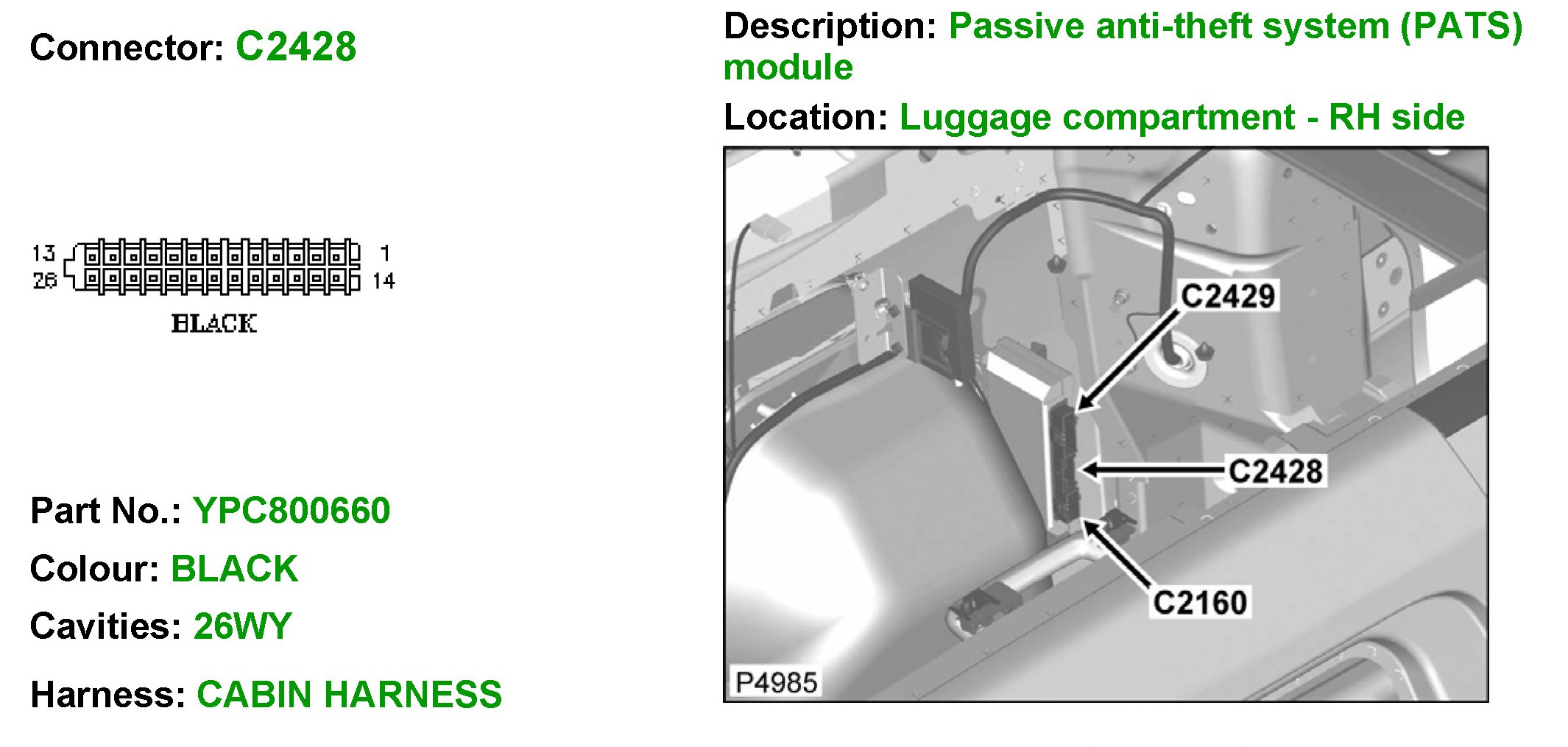

C2428 (Part 1):

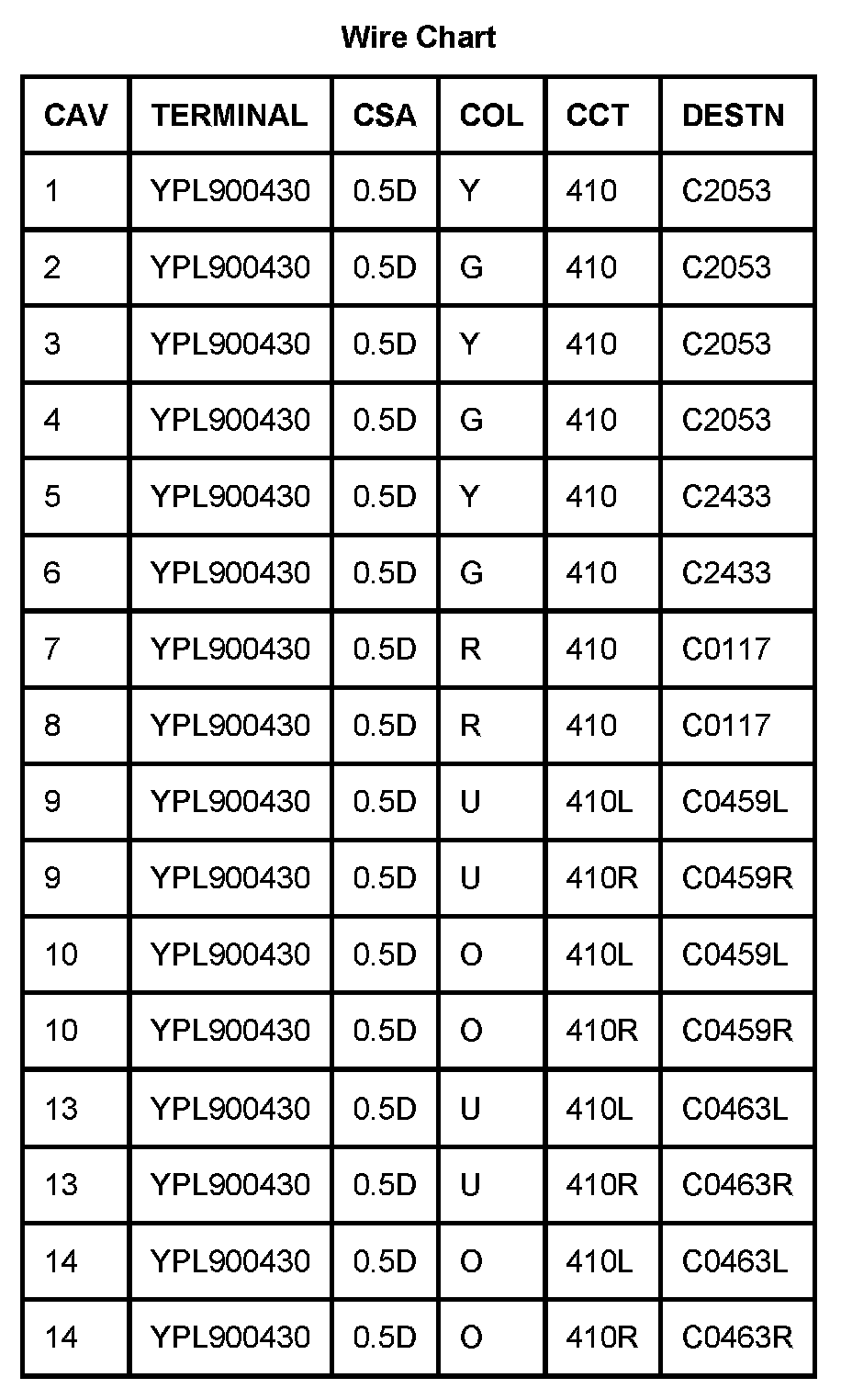

C2428 (Part 2):

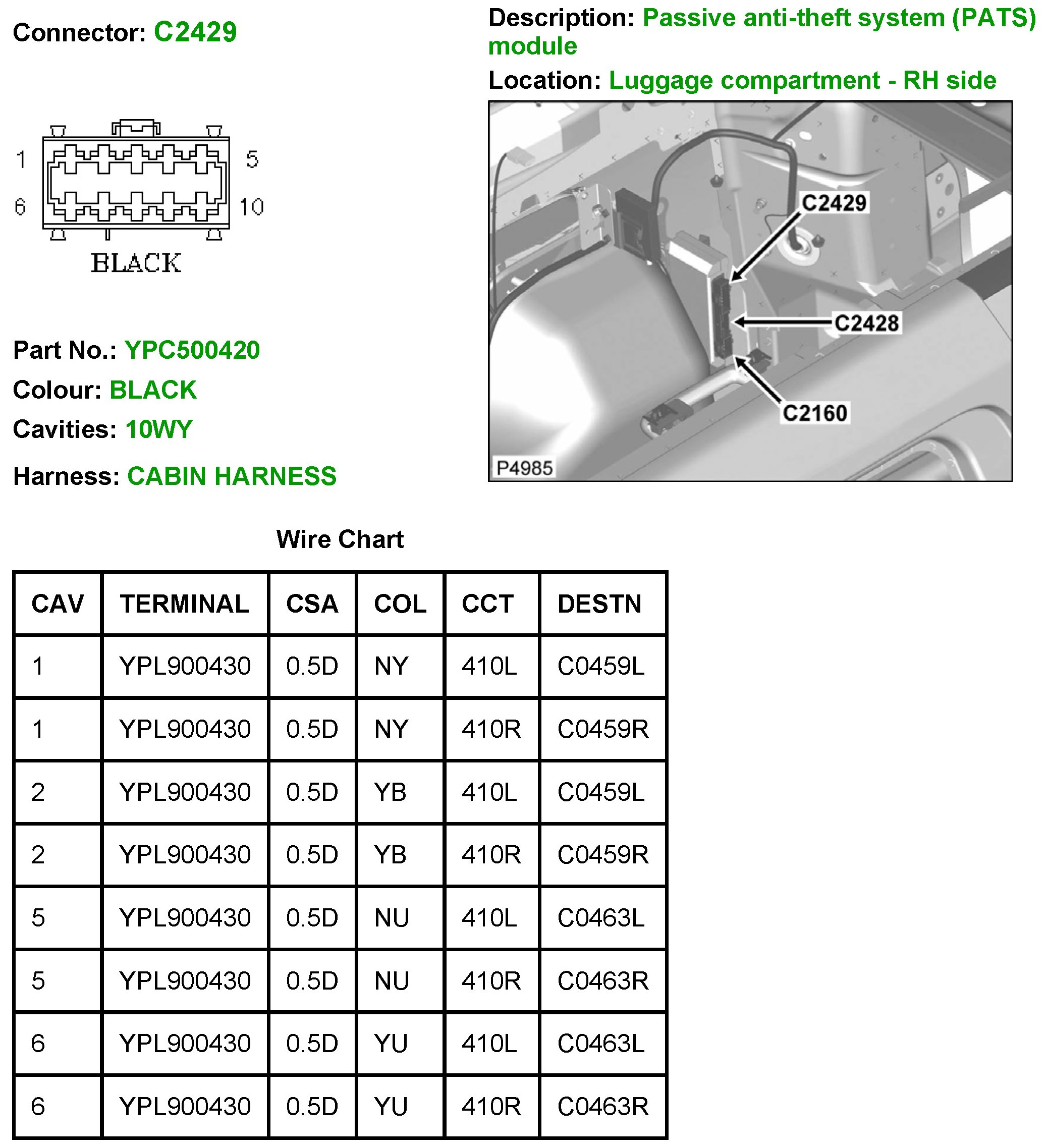

C2429:
C2160 (Part 1):
