Circuit Reference Numbers



CIRCUIT REFERENCE NUMBERS

CONNECTOR APPLICABILITY

General

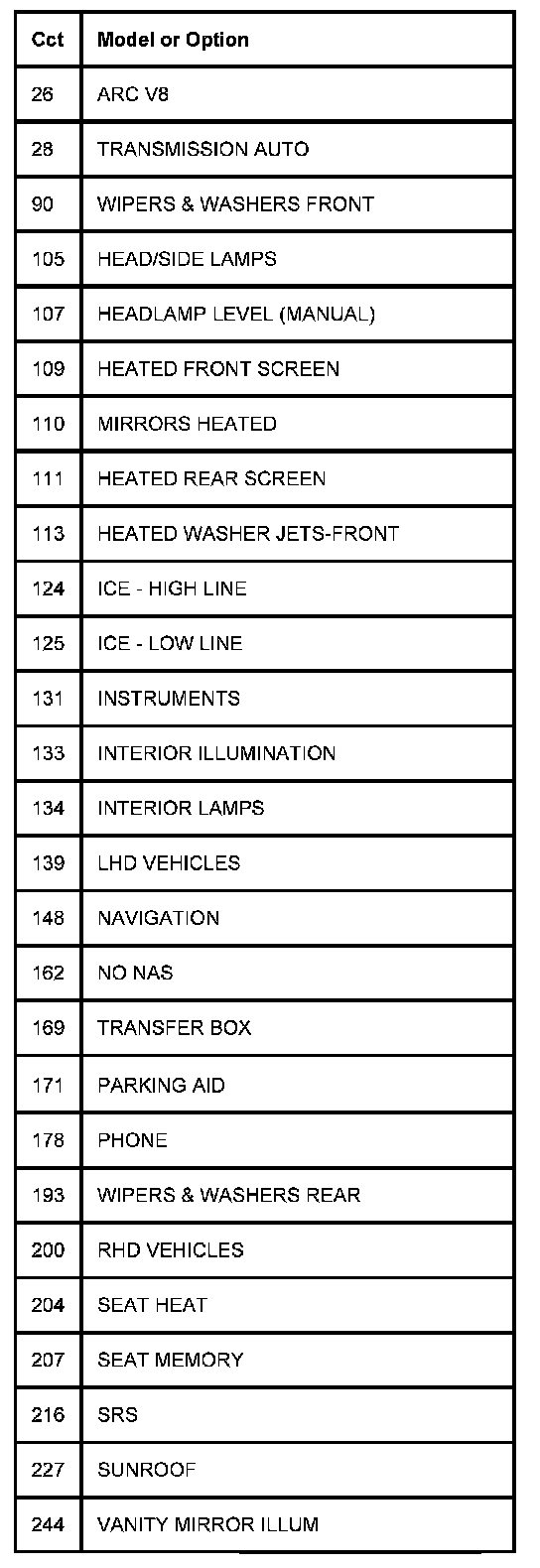

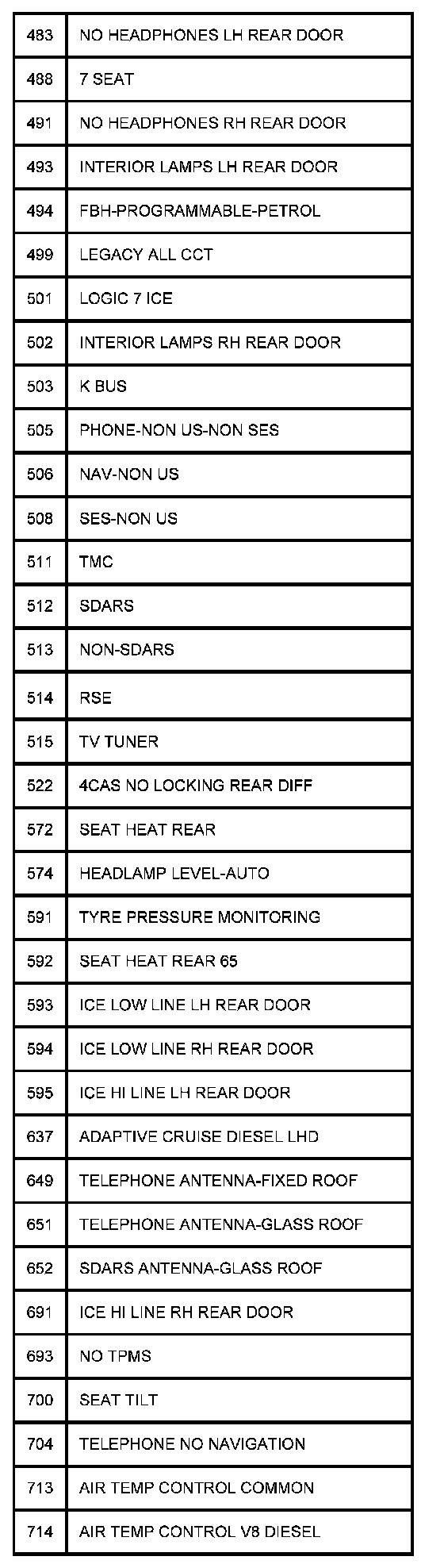

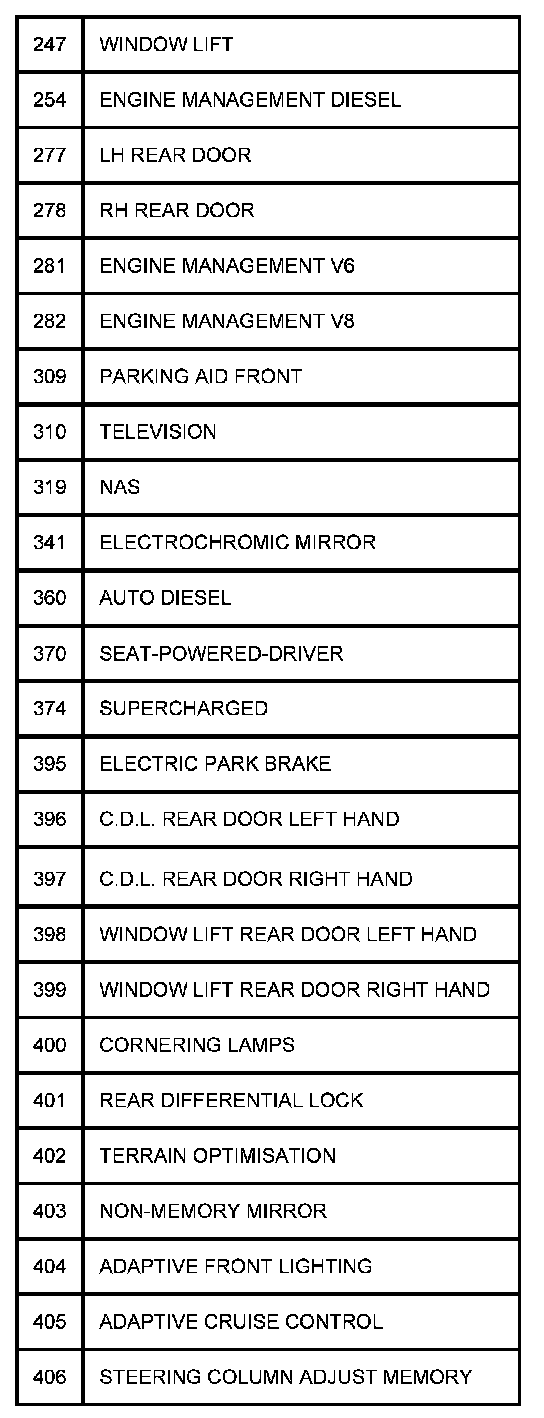

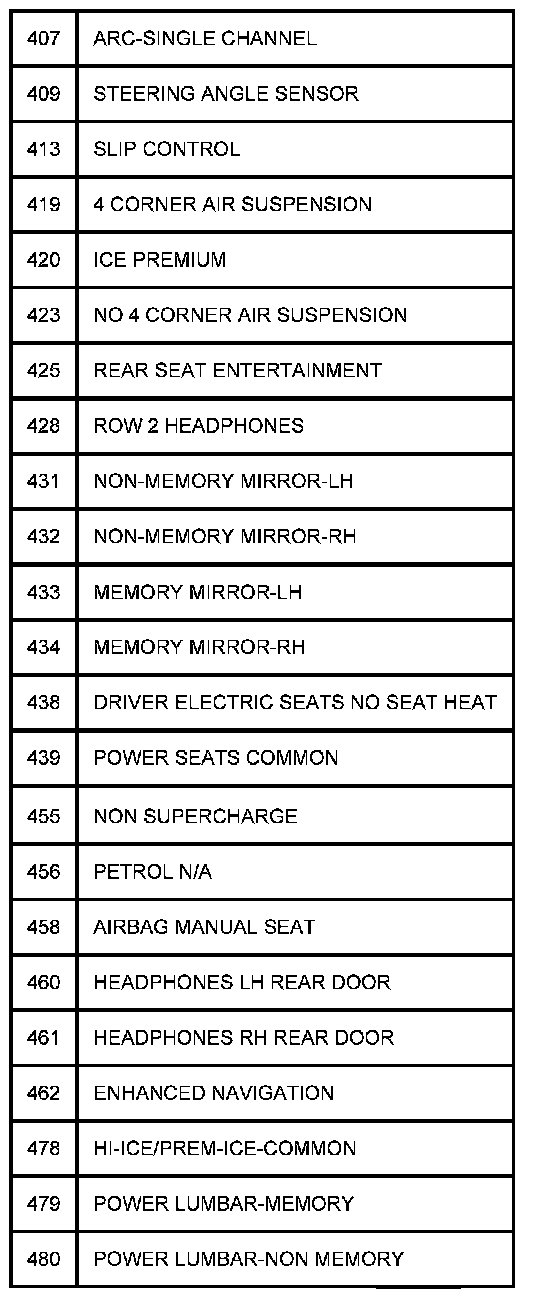

The following table contains a list of circuit (Cct) reference numbers against a description of the applicable model or option. This information should be used in conjunction with the connector pin-out tables to determine the wire configuration of the vehicle under test.

Part 1:




Part 2:




Part 3:




Part 4:
