Control Module, Transfer Case

Transfer Box Control Module

C1319L:

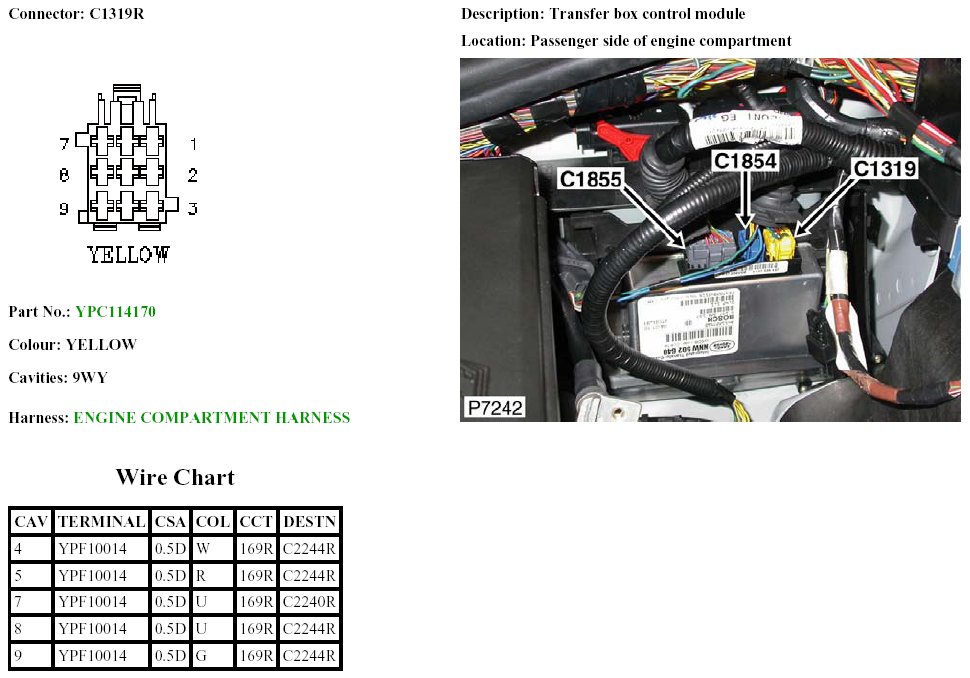

C1319R:

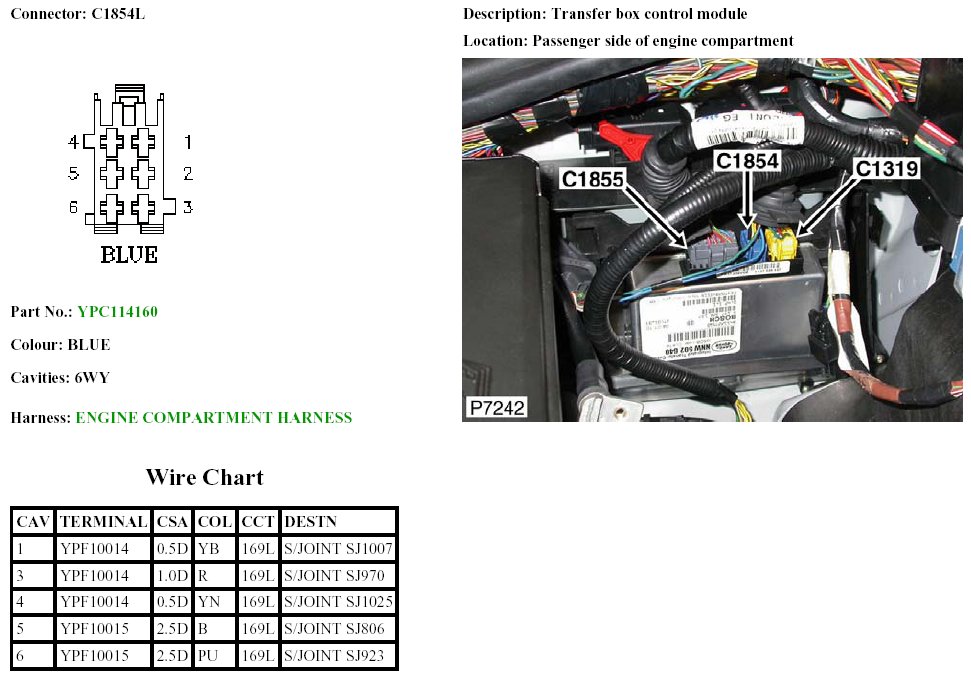

C1854L:

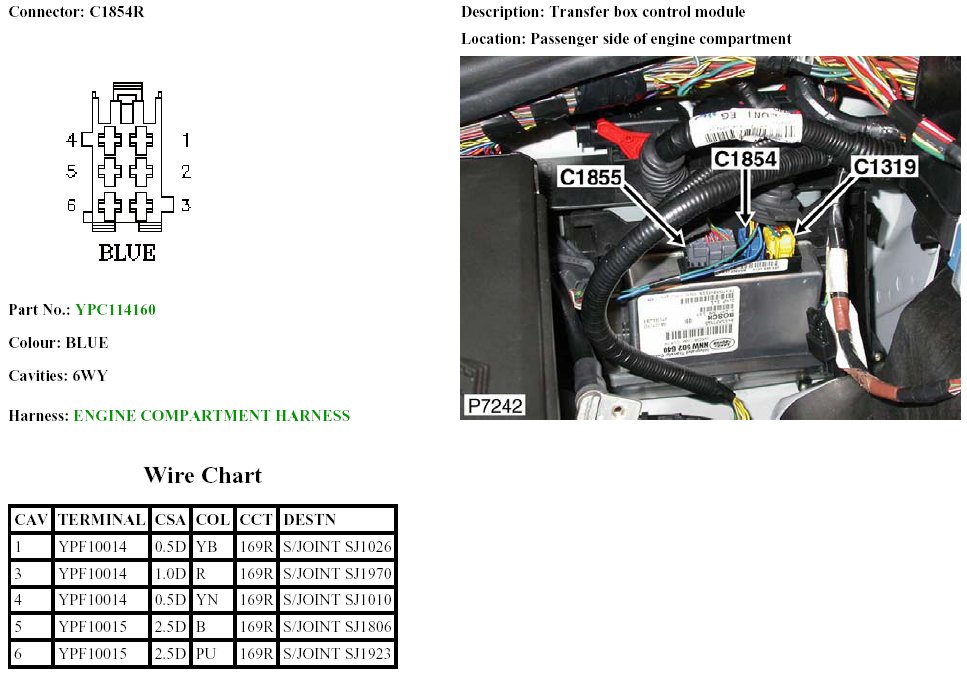

C1854R:

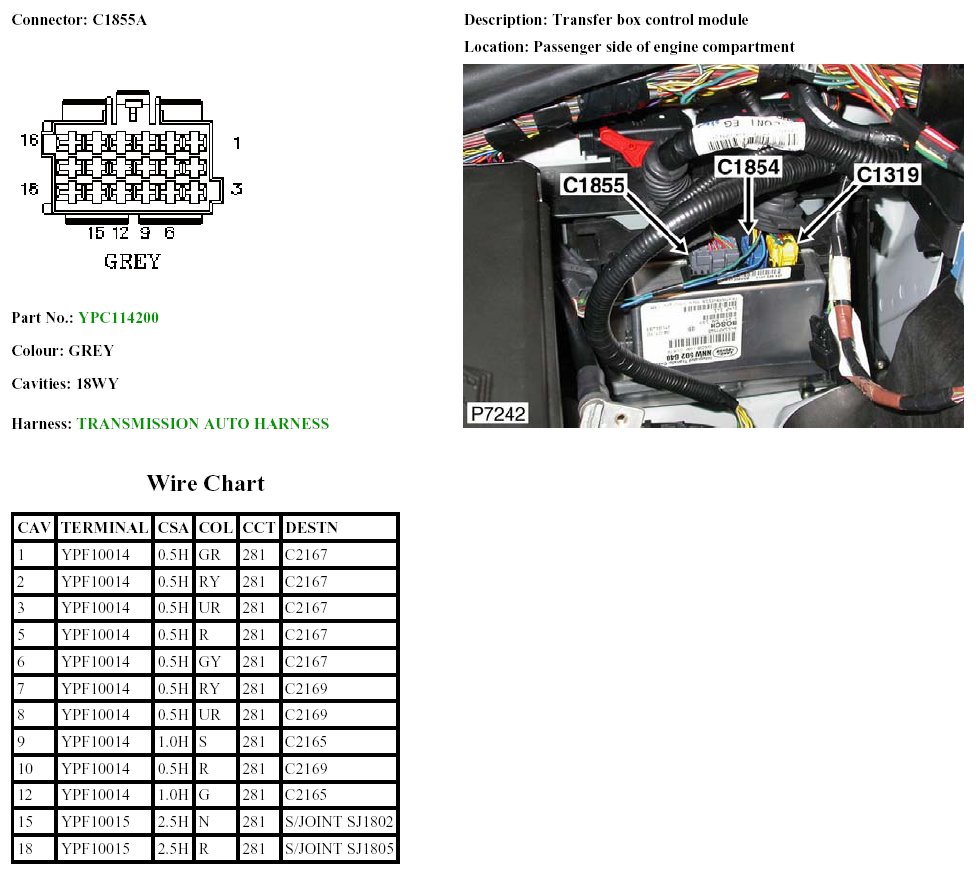

C1855A:

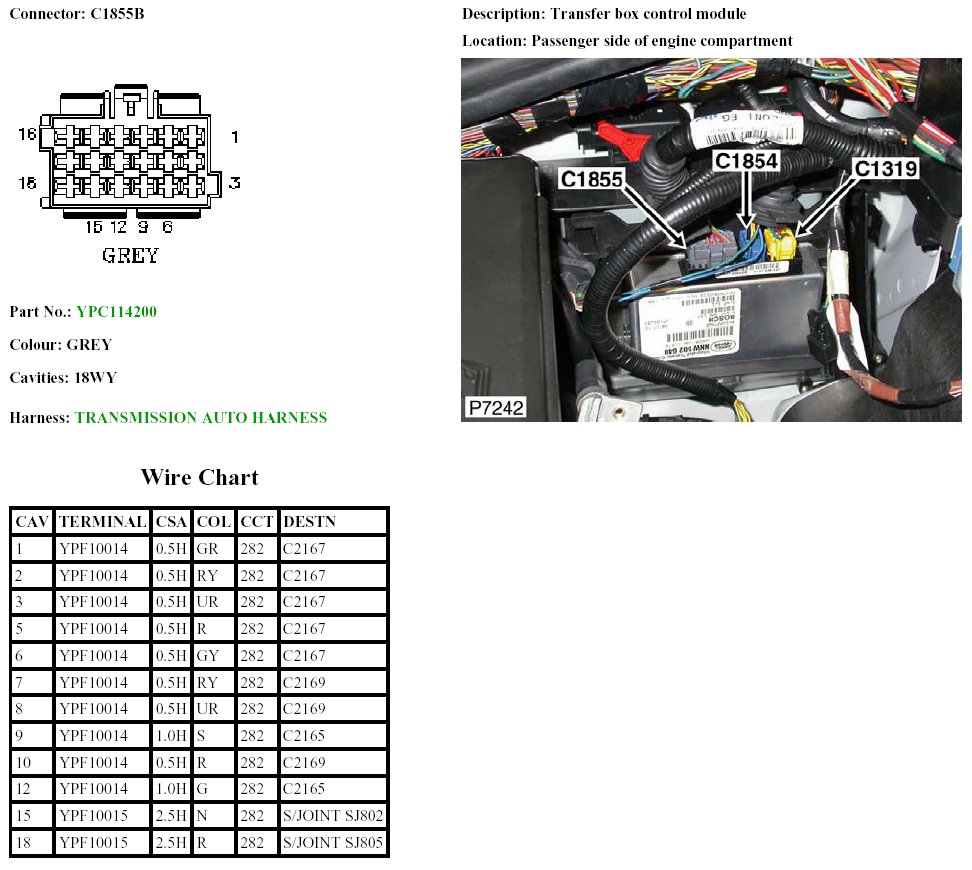

C1855B:

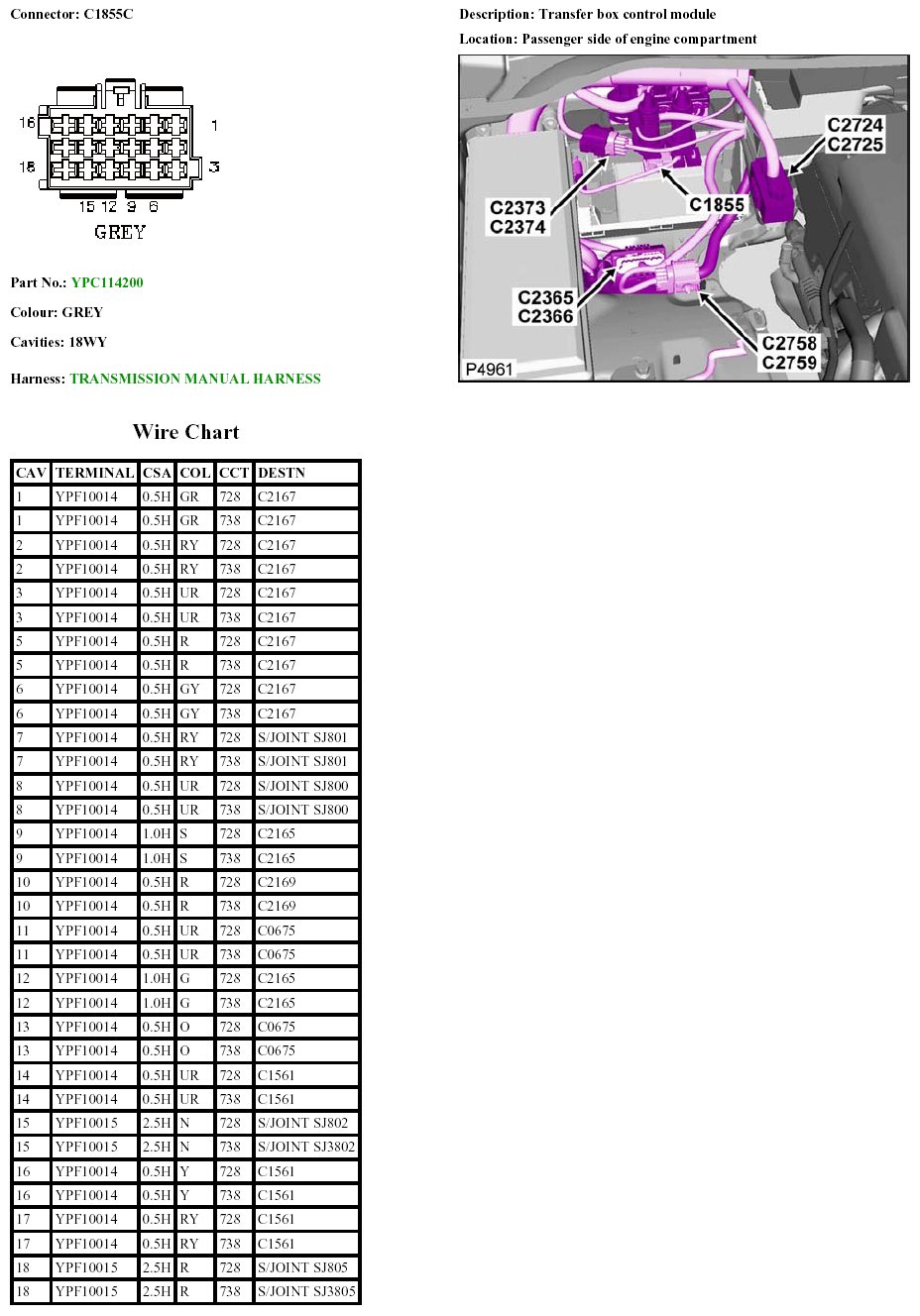

C1855C:

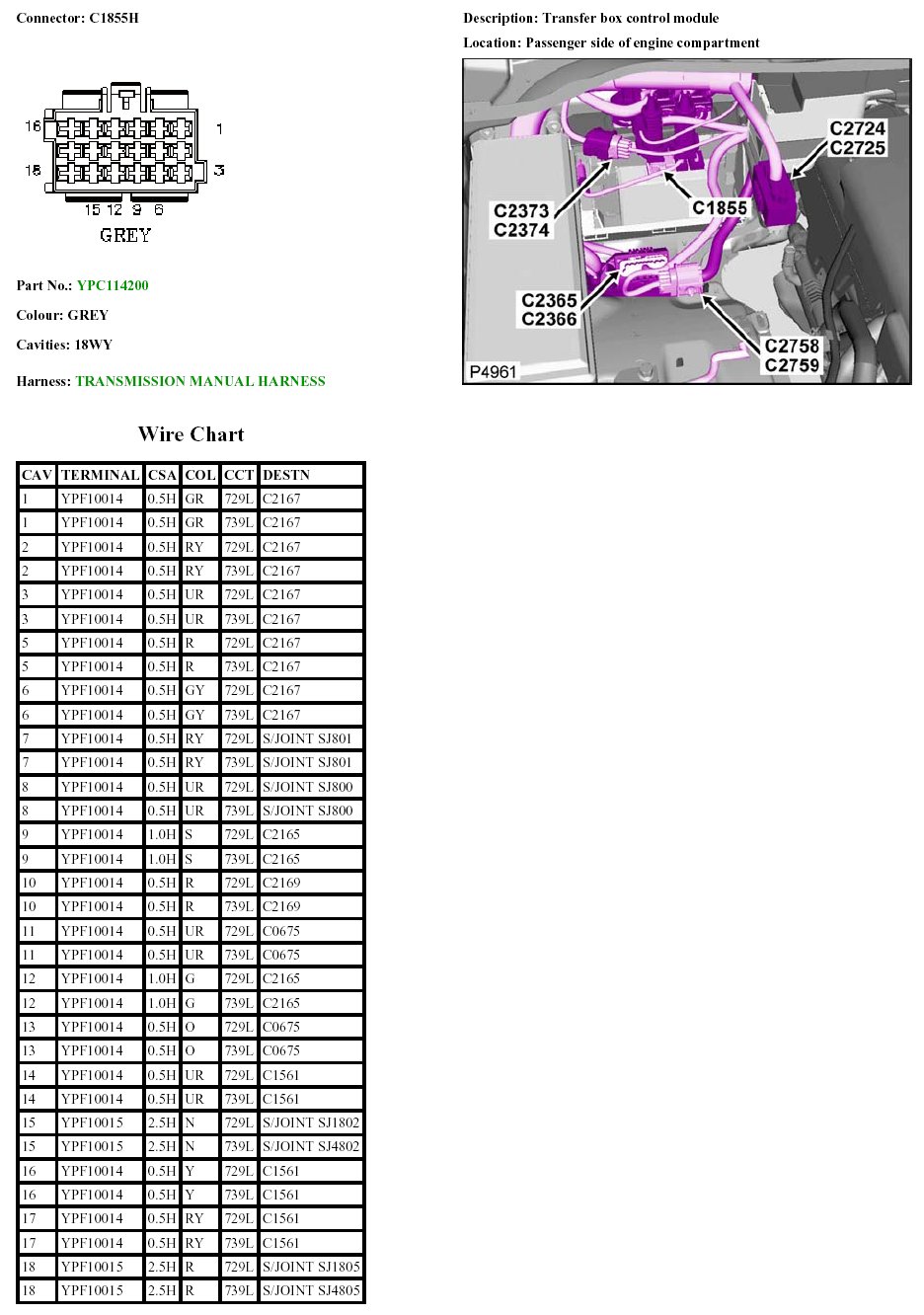

C1855H:

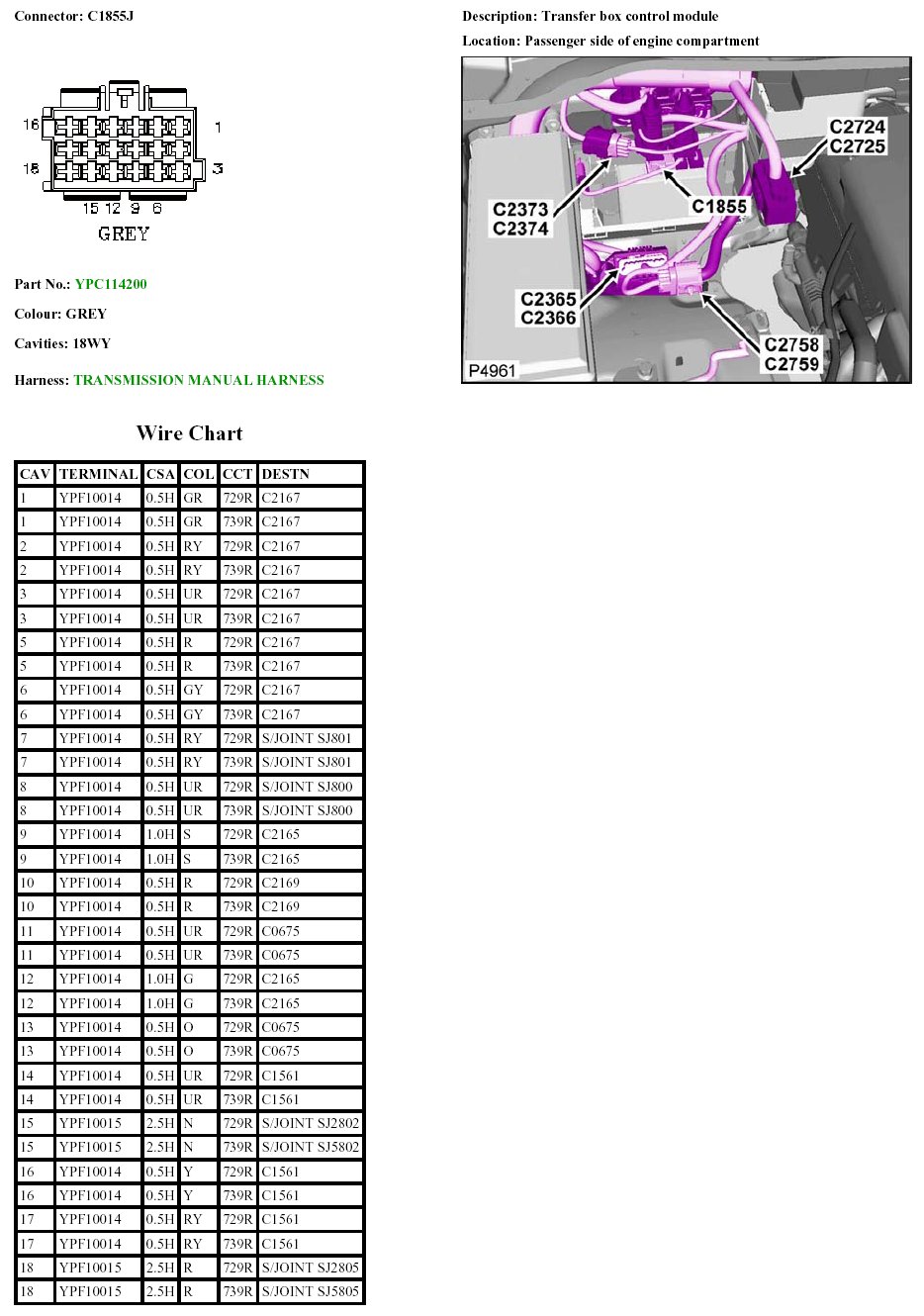

C1855J:
