Solar Sensor: Service and Repair

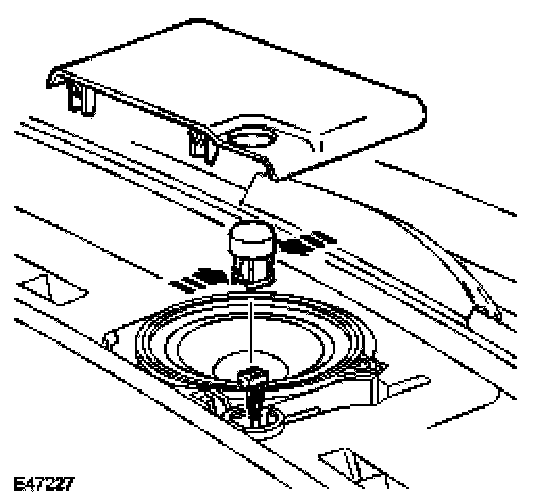

Sunload SensorService Repair No - 82.20.92Removal 1.
Remove the instrument panel upper section speaker grille.
^
Release the 4 clips.
2.
Remove the sunload sensor.
^
Release the 2 clips.
^
Disconnect the electrical connector.
Installation 1.
To install, reverse the removal procedure.
