Headlamp Alignment Control Module: Service and Repair

Adaptive Front Lighting Module

Removal

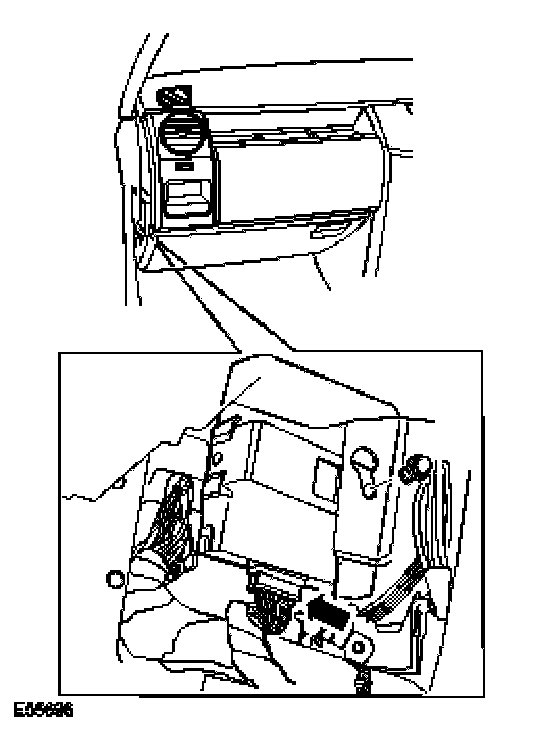

1. Passenger side: Remove the cowl side trim panel.
2. Remove the adaptive front lighting control module.
^ Disconnect the electrical connector.
^ Remove the bolt.

Installation
1. Install the adaptive front lighting control module.
^ Tighten the bolt to 10 Nm (7 ft. lbs.).
^ Connect the electrical connector.

2. Install the cowl side trim panel.
