Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature (ECT) Sensor (18.30.10)

Removal
1. Disconnect the battery ground cable.
2. Remove the throttle body.

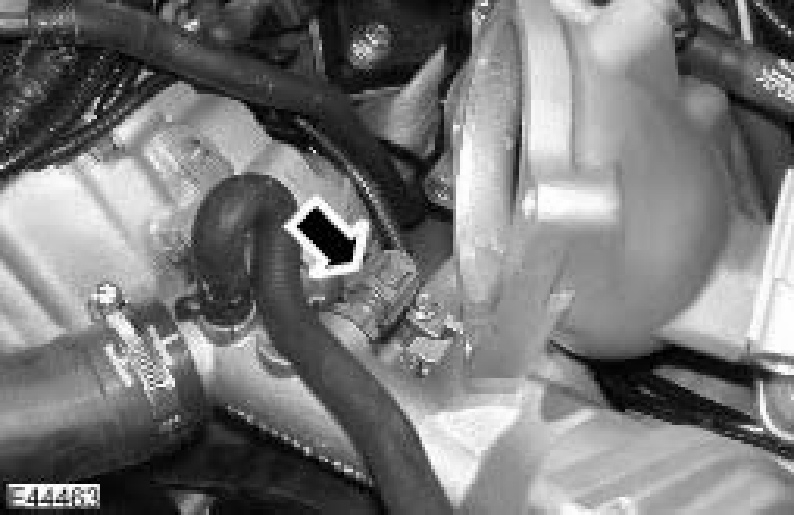

3. Remove the ECT sensor.
^ Position the engine gas recirculation (EGR) coolant hose aside for access.
^ Position an absorbent cloth to collect fluid spillage.
^ Disconnect the electrical connector.
^ Remove the sensor and discard the seal.





Installation
1. To install, reverse the removal procedure.
^ Clean the components.

2. Tighten the ECT sensor to 18 Nm (13 ft. lbs.).
3. Top-up the coolant.
