Table of Circuit Option Codes

TABLE OF CIRCUIT OPTION CODES

The following table contains a list of circuit (Cct) reference numbers against a description of the applicable model or option. This information should be used in conjunction with the connector pin-out tables to determine the wire configuration of the vehicle under test.

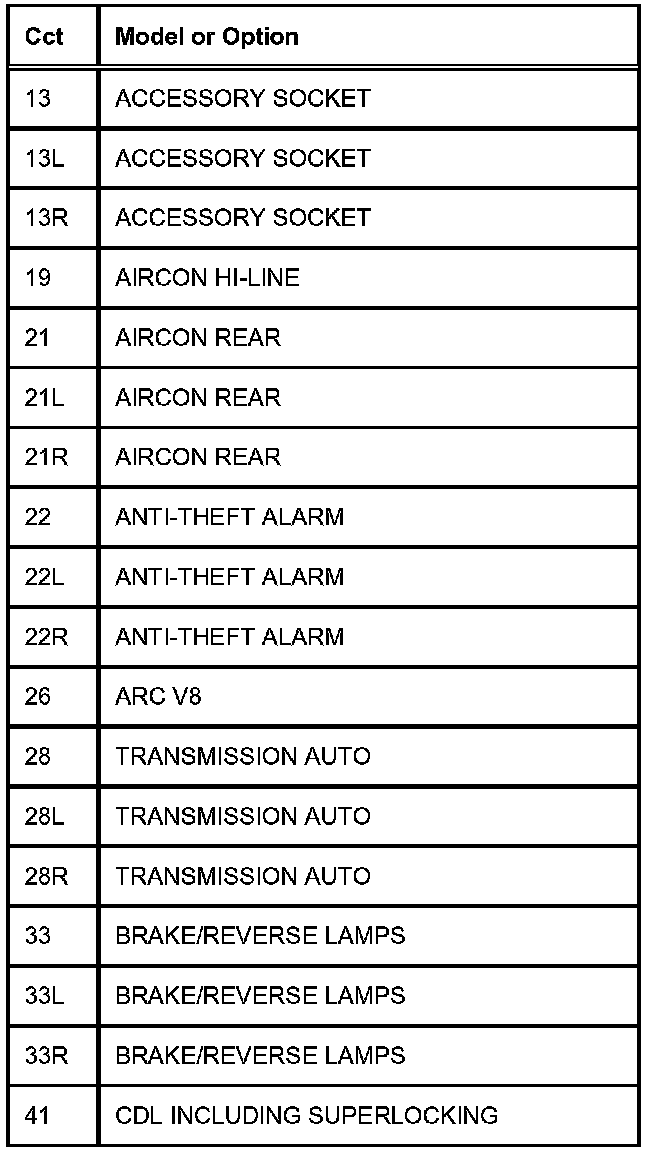

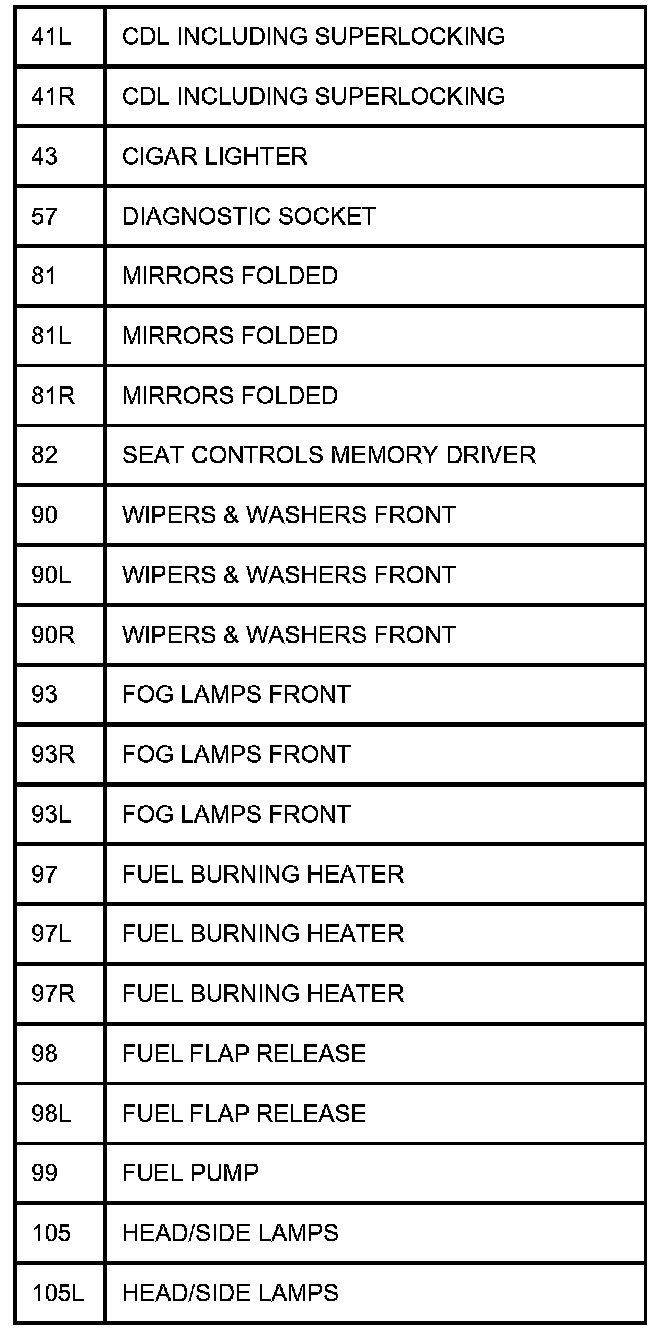

13-41:

41L-105L:

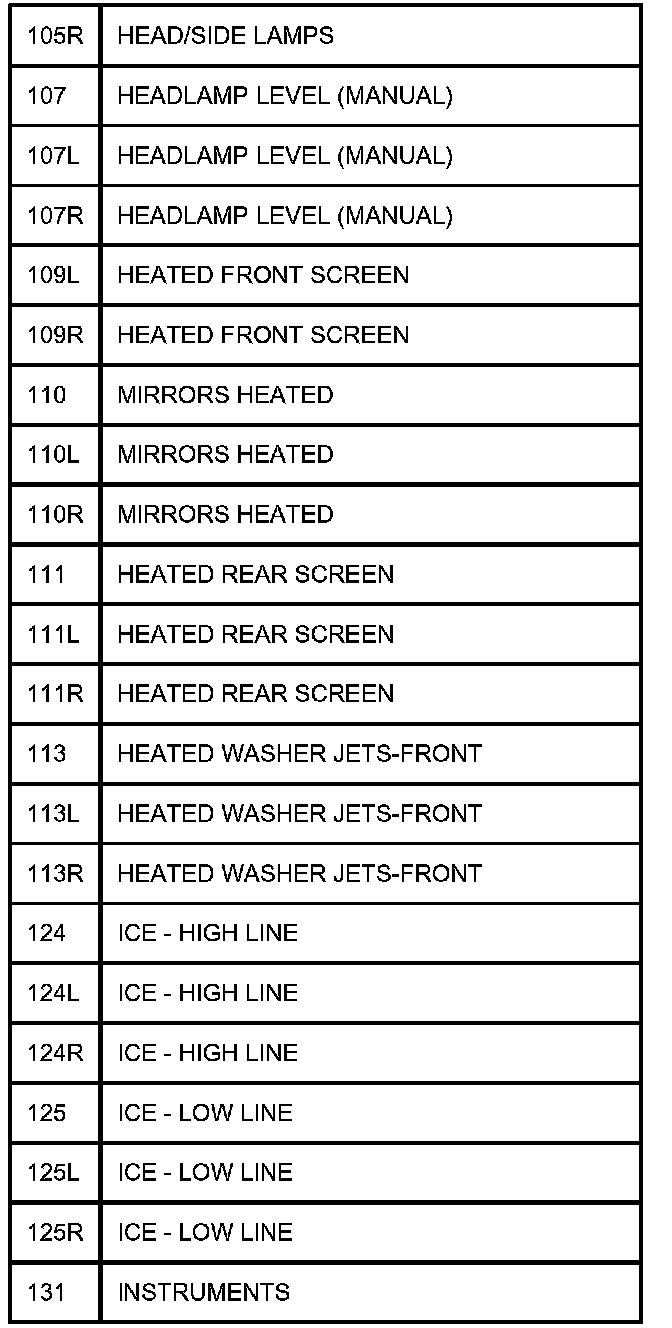

105R-131:

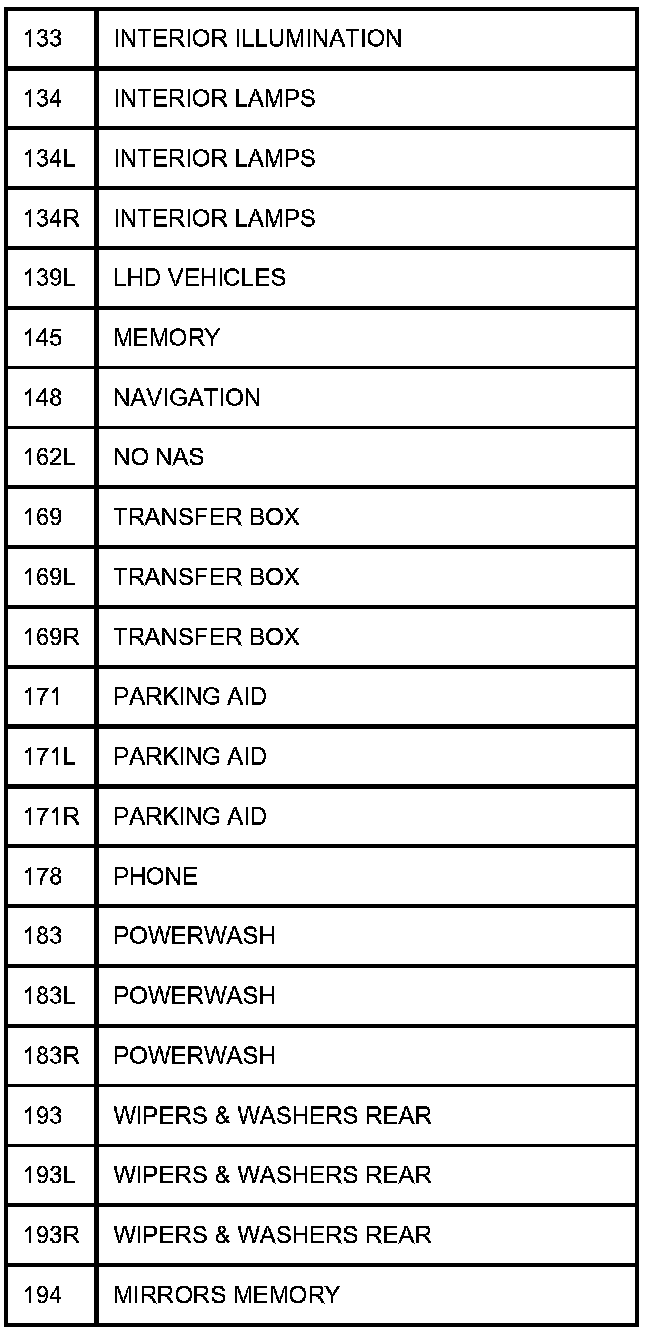

133-194:

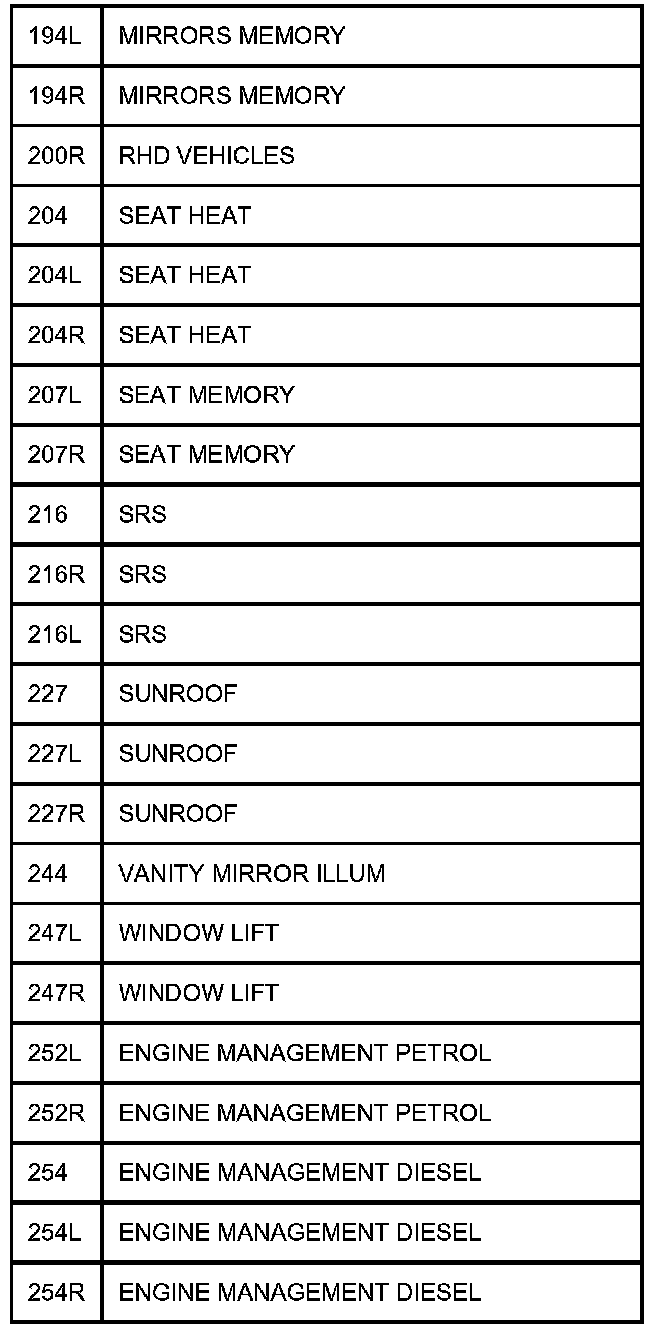

194L-254R:

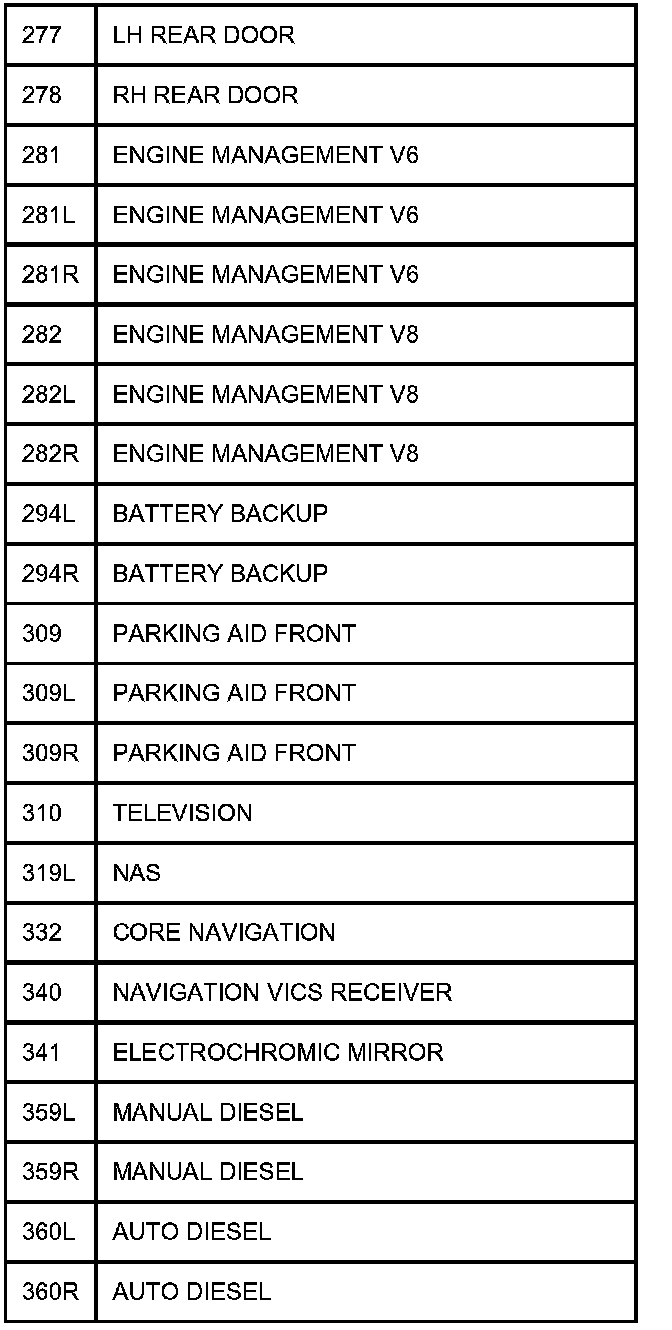

277-360R:

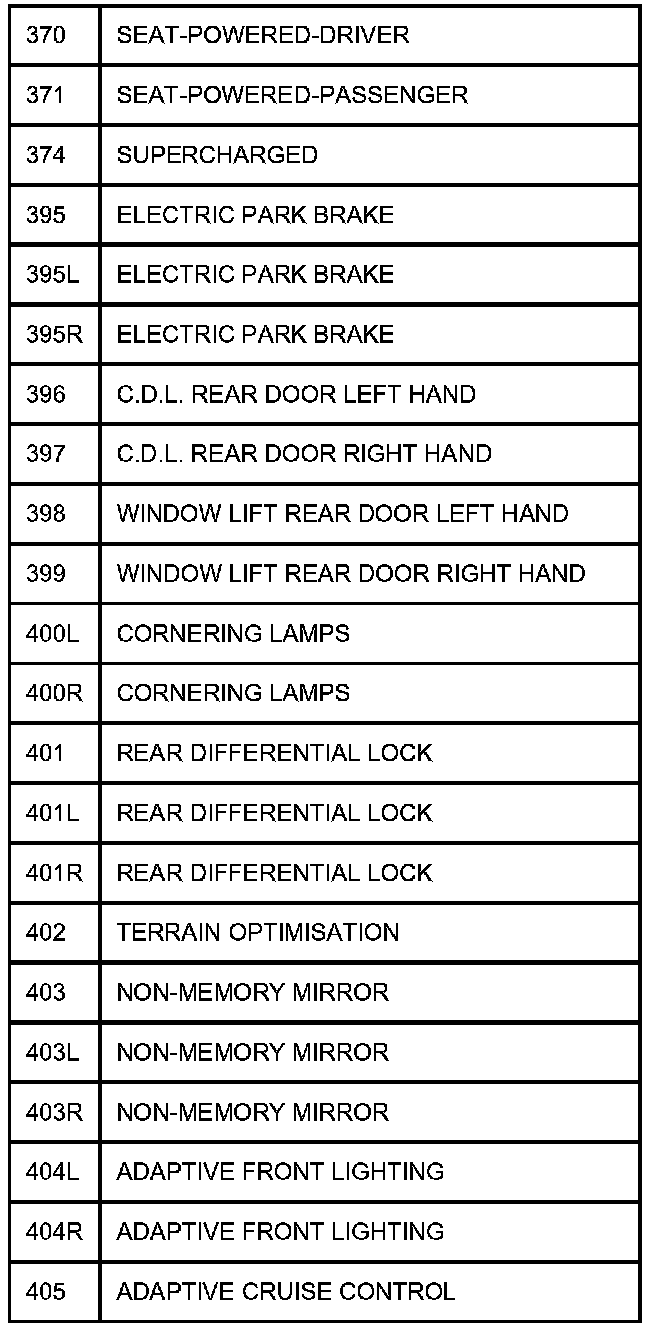

370-405:

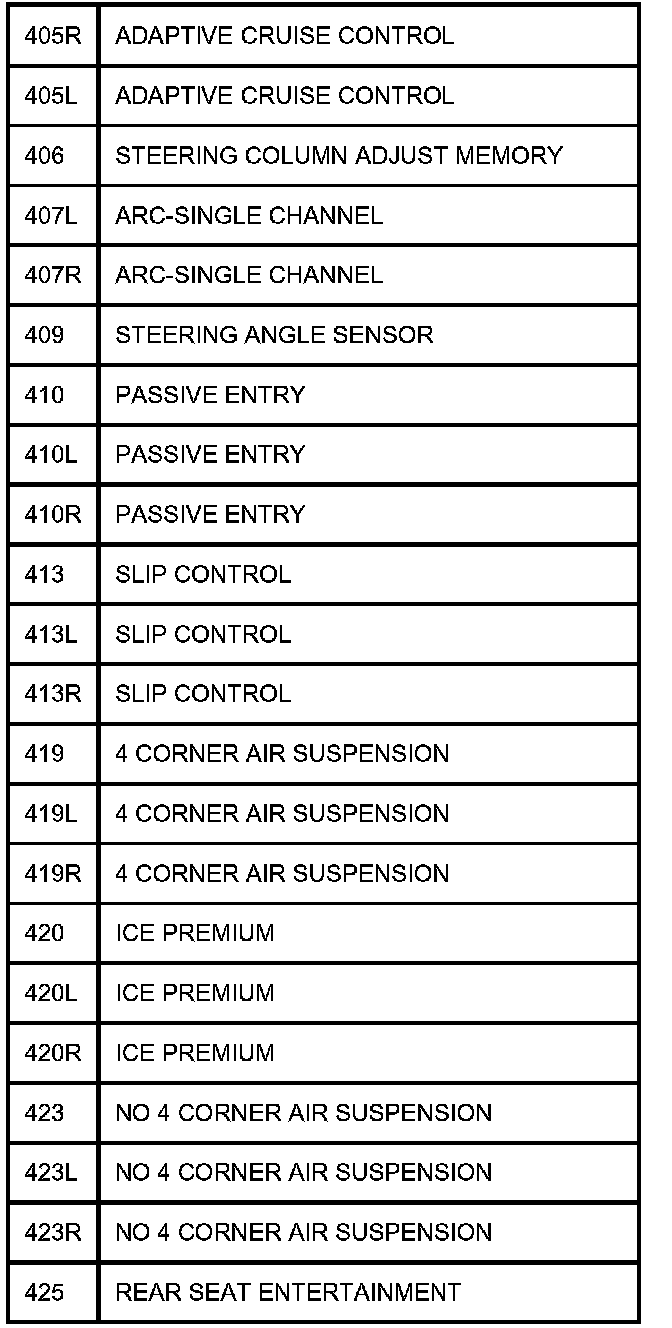

405R-425:

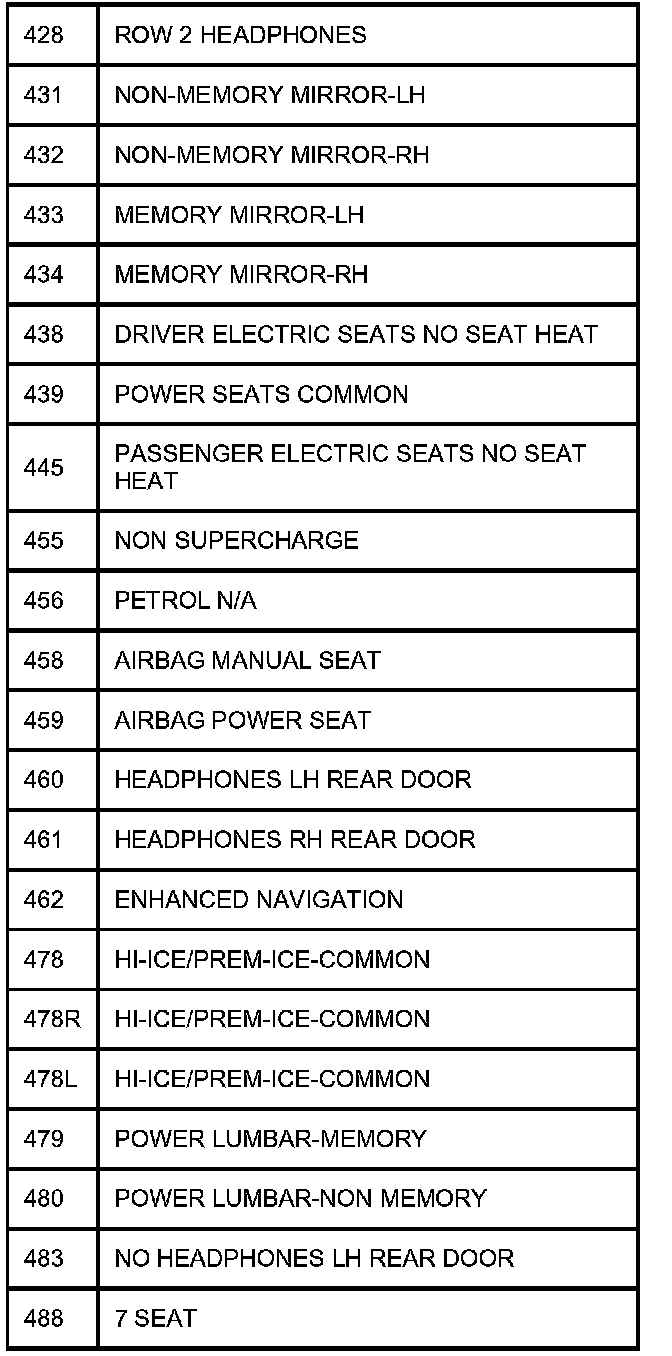

428-488:

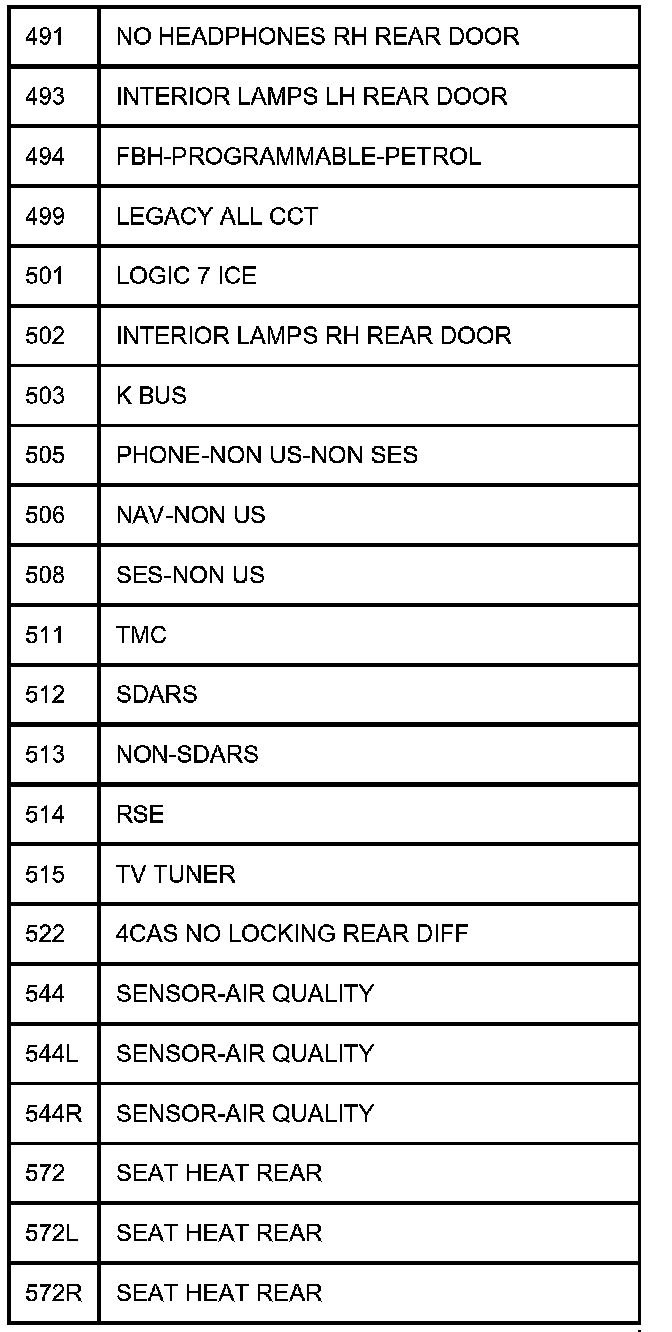

491-572R:

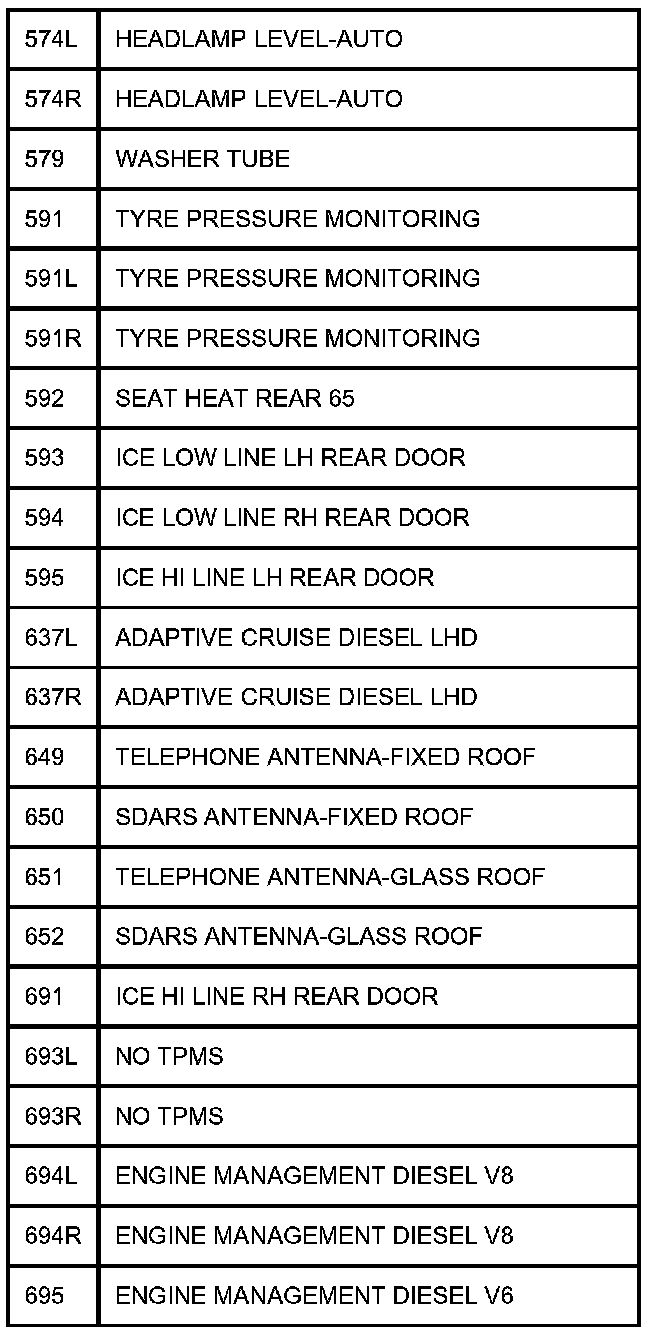

574L-695:

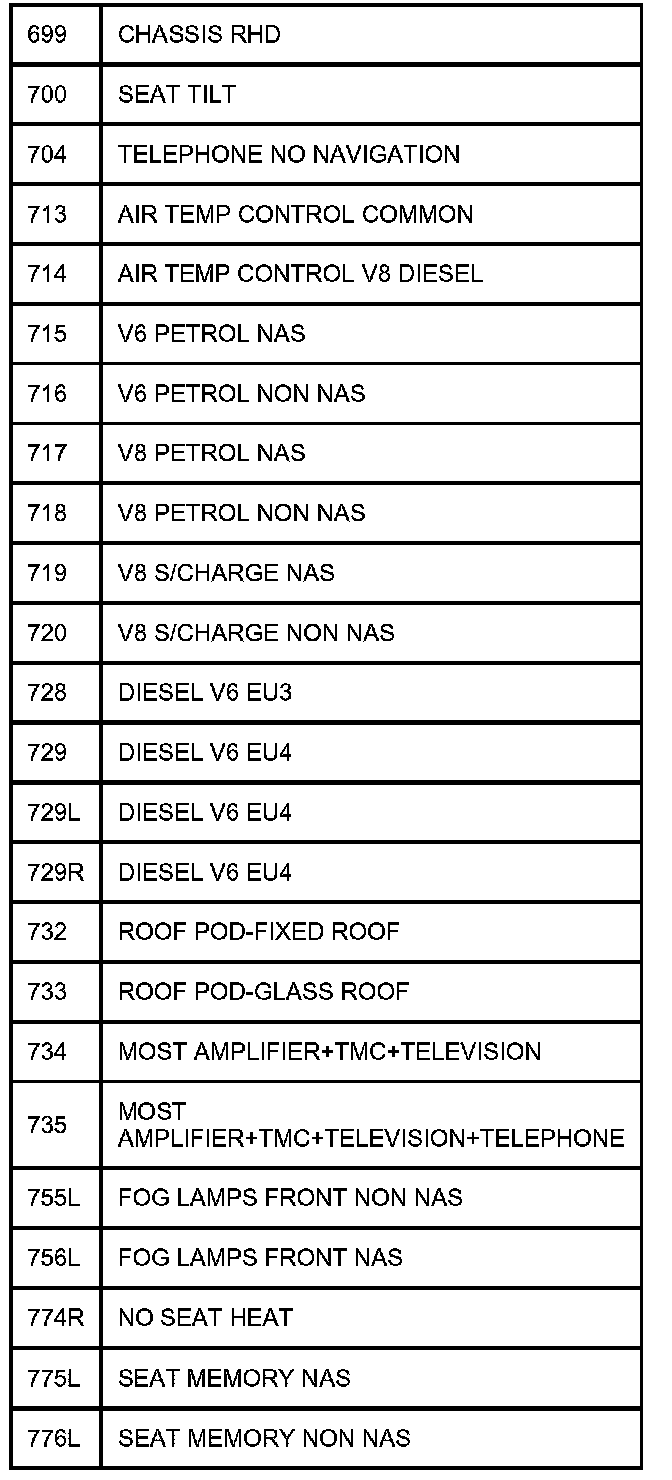

699-776L:
