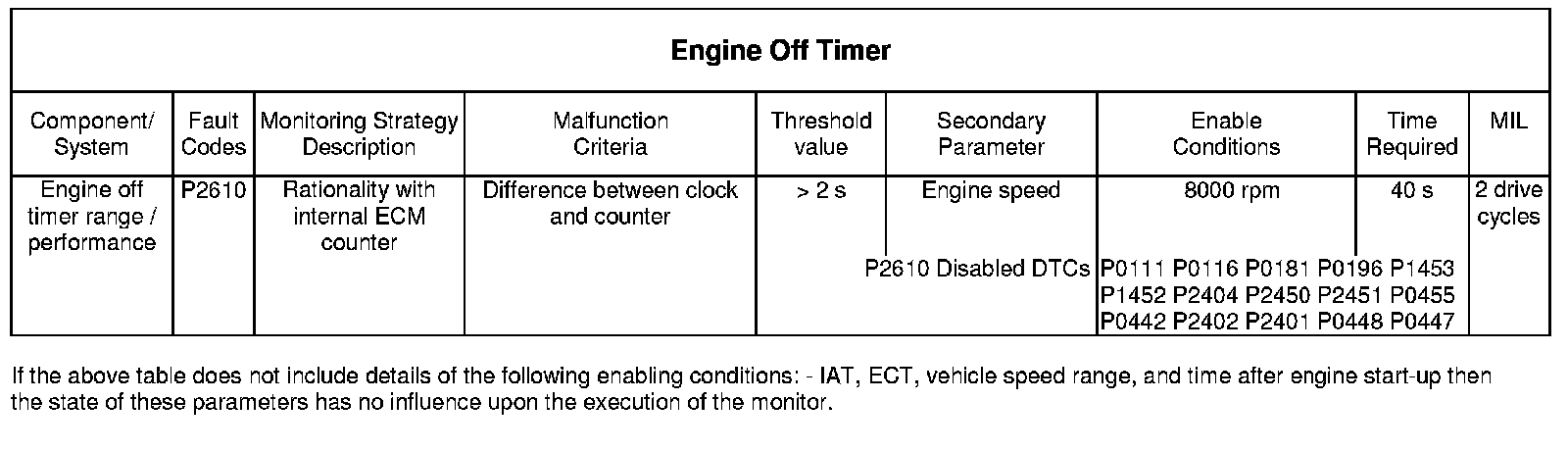

Engine Off Timer
Engine Off TimerDescriptionThe engine off timer monitors compares the real time clock data supplied by the instrument pack with it's own internal counter. If the two differ by more than 2 seconds for longer than a predefined time then a failure is registered. If the fault occurs on 2 drive cycles then the
MIL will illuminate.
