Spark Plug: Service and Repair

Spark Plugs

Service Repair No - 18.20.02

Removal
1. Disconnect the battery ground cable.

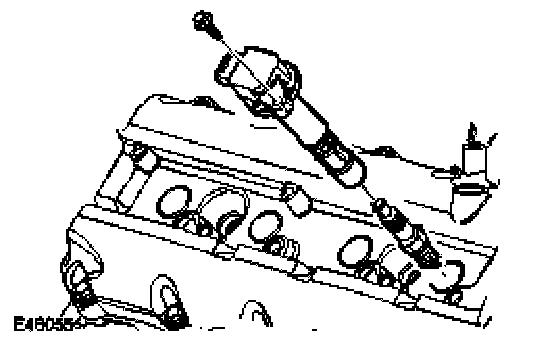

2. Remove the ignition coil-on-plugs.
3. Remove the remaining ignition coil-on-plugs.
4. Clean the area surrounding the spark plugs.
5. Remove the spark plugs.





Installation
1. Install the spark plugs.
^ Tighten the spark plugs to 25 Nm (18 ft. lbs.).

2. Install the ignition coil-on-plug.
3. Install the remaining coil-on-plugs.
4. Connect the battery ground cable.
