Ignition Switch: Service and Repair

Ignition Switch

Service Repair No - 86.65.02

Removal
1. Fully extend the steering column for access.

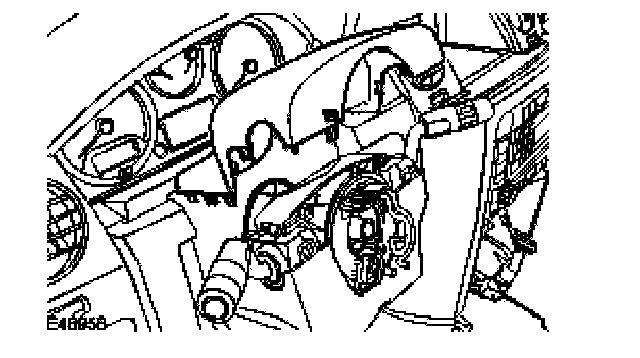

2. Remove the steering column upper shroud.
^ Release the 4 clips.

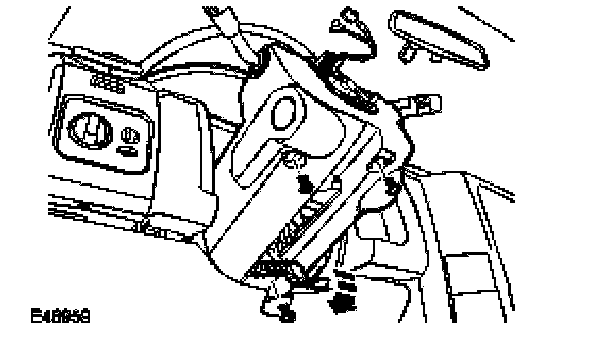

3. Remove the steering column lower shroud.
^ Remove the 3 Torx screws.
^ Release the steering column adjustment lever.

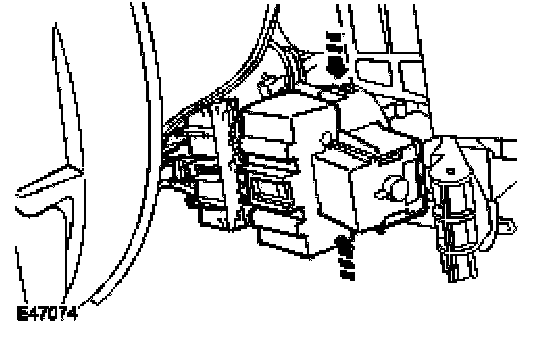

4. CAUTION: The ignition key must be removed prior to the removal of the ignition switch.

Remove the ignition switch. Disconnect the electrical connector. Depress the 2 clips.

Installation
1. Install the ignition switch.
^ Secure with the clips.
^ Connect the electrical connector.
2. Install the steering column shrouds.
^ Tighten the Torx screws.
^ Secure the clips.
^ Secure the adjustment lever.
