Finisher - Rear Seat Squab

78.55.03 Finisher - Rear Seat Squab

Remove







1. Fold rear seat forward.

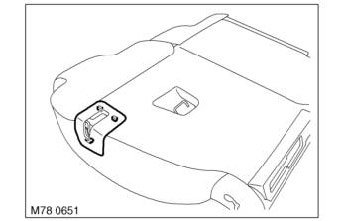

2. Release 3 clips securing latch finisher, remove finisher.







3. Remove 2 screws securing lower squab finisher.
4. Release 3 retaining clips securing finisher and remove finisher.

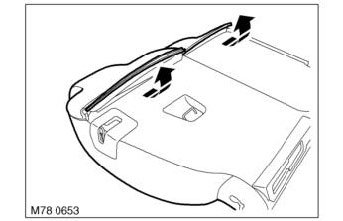

5. Carefully release squab cover beading from top of rear squab frame.

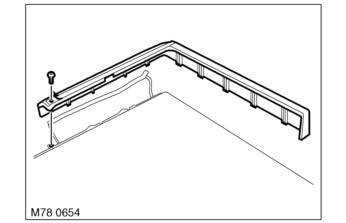

6. Release velcro to reveal screw securing rear armrest trim to squab finisher, remove screw.
7. Carefully release 11 retaining clips securing armrest rear finisher to front finisher, remove finisher.
8. Carefully prise back finisher, releasing adhesive.
9. Remove finisher from squab.

Refit

1. Apply suitable adhesive to finisher.
2. Position and fit finisher to squab.
3. Position armrest rear finisher and secure retaining clips.
4. Fit screw securing armrest rear finisher and fit velcro.
5. Position and fit top cover beading to squab frame.
6. Position rear lower squab finisher and secure retaining clips.
7. Fit screws securing lower squab finisher.
8. Position latch finisher and secure clips.
9. Reposition rear seat.
