Gasket - Lower Oil Sump

12.60.37 Gasket - lower oil sump
Before disconnecting the battery, ensure all text and cautions in the battery disconnection information are observed.

Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Drain engine oil.

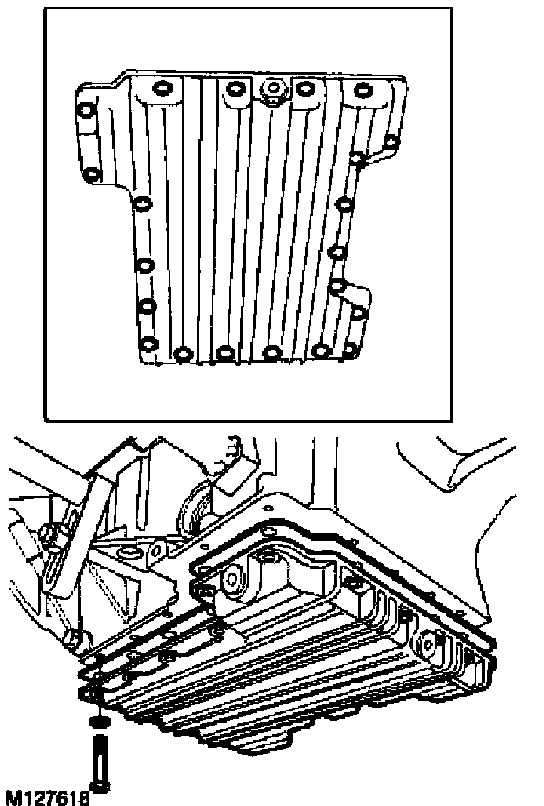

4. Remove 21 bolts securing lower oil sump to upper oil sump. Remove lower oil sump and discard gasket.

Refit
1. Clean lower oil sump mating faces.
2. Fit new gasket to lower oil sump mating face.
3. Fit lower oil sump.
4. Fit 21 bolts securing lower oil sump and tighten to 10 Nm (7 ft. lbs.).
5. Fill engine with oil.
6. Connect battery earth lead.
