Oil Seal - Crankshaft - Front

12.21.14.01 Oil seal - crankshaft - front
Disassembly
1. Remove crankshaft pulley.





2. Fit LRT-12-229 to crankshaft pulley hub.
3. With assistance, remove crankshaft pulley bolt.
4. Remove LRT-12-229 from crankshaft pulley hub.
5. Remove crankshaft pulley hub.

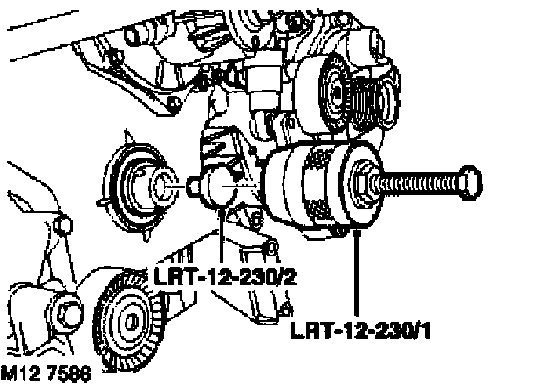

6. Fit LRT-12-230/1 and LRT-12-230/2 to crankshaft seal and remove crankshaft oil seal.
7. Discard oil seal.

Reassembly
1. Clean seal mating faces.

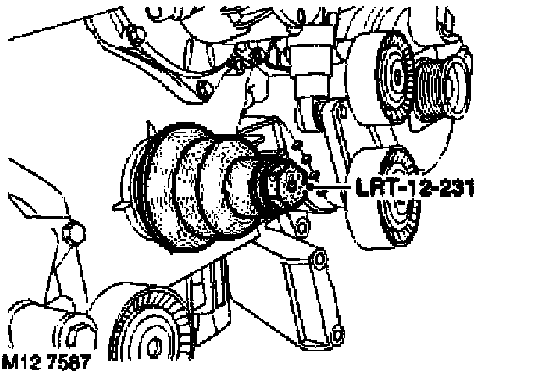

2. Fit new crankshaft oil seal to front cover using LRT-12-231.

NOTE: Front crankshaft oil seal should be fitted flush to front timing cover.

3. Remove LRT-12-231.
4. Clean crankshaft pulley hub and mating faces, fit crankshaft pulley hub to crankshaft.

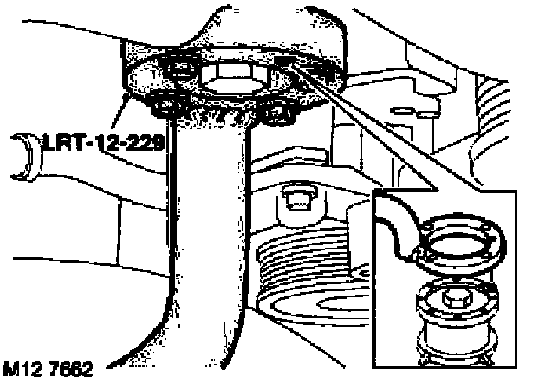

5. Fit new bolt to crankshaft, lock crankshaft using LRT-12-229 and initially tighten crankshaft bolt to 100 Nm (74 ft. lbs.). Using an angle torque gauge tighten in the following sequence. Stage 1; 60°. Stage 2; 60°. Stage 3; 30°.
6. Remove LRT-12-229 from crankshaft pulley hub.
7. Fit crankshaft pulley.
