Home >> Land Rover >> 2005 >> Range Rover (LM) V8-4398cc 4.4L (M62) >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

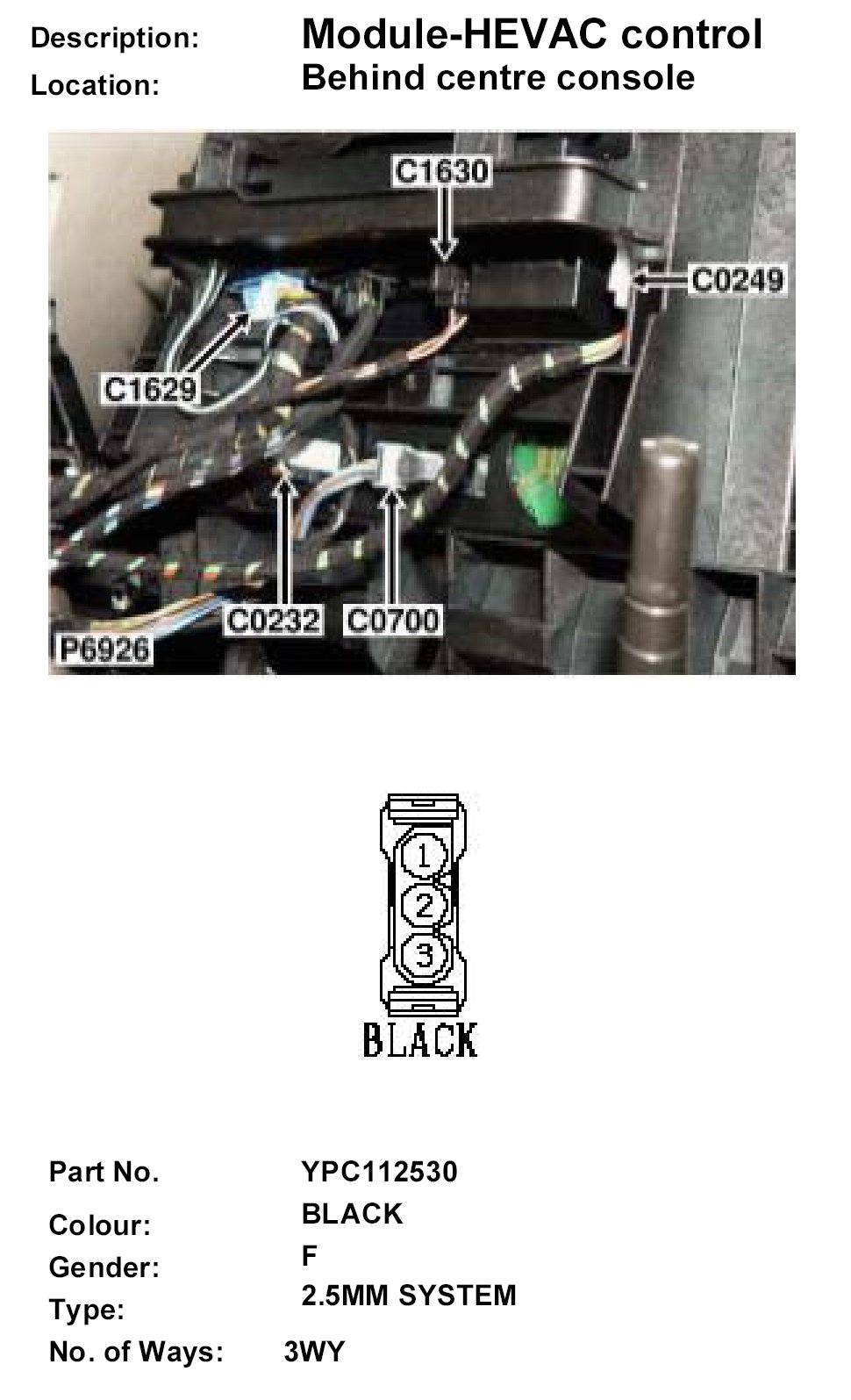

Control Module HVAC: Locations

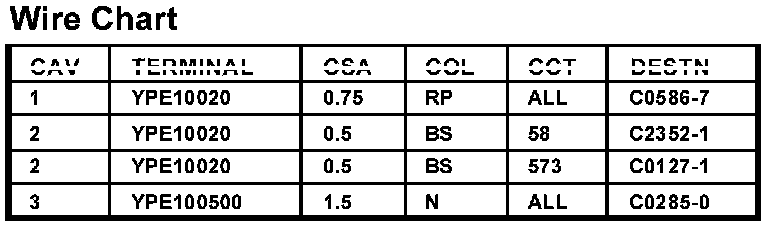

C1629 (Part 1):



C1629 (Part 2):



C1630 (Part 1):



C1630 (Part 2):
