Home >> Land Rover >> 2005 >> Range Rover (LM) V8-4398cc 4.4L (M62) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

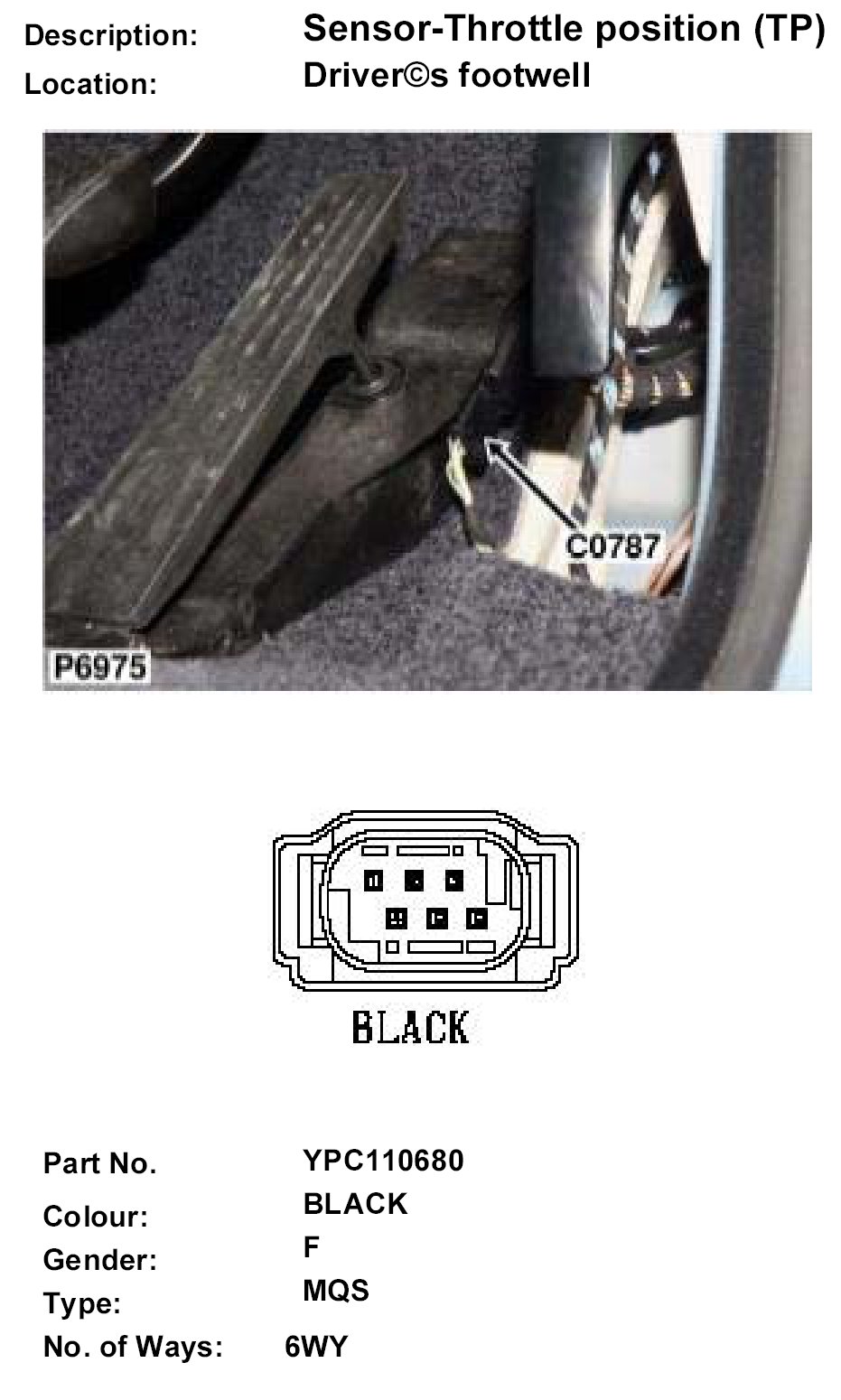

Throttle Position Sensor: Locations

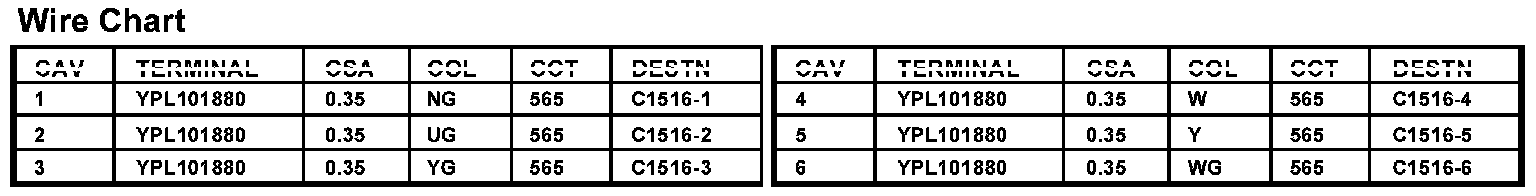

C0787 (Part 1):



C0787 (Part 2):
