Sensor - Knock (KS) - RH

18.30.30 Sensor - Knock (KS) - RH

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove
1. Disconnect battery earth lead.
2. Remove inlet manifold.

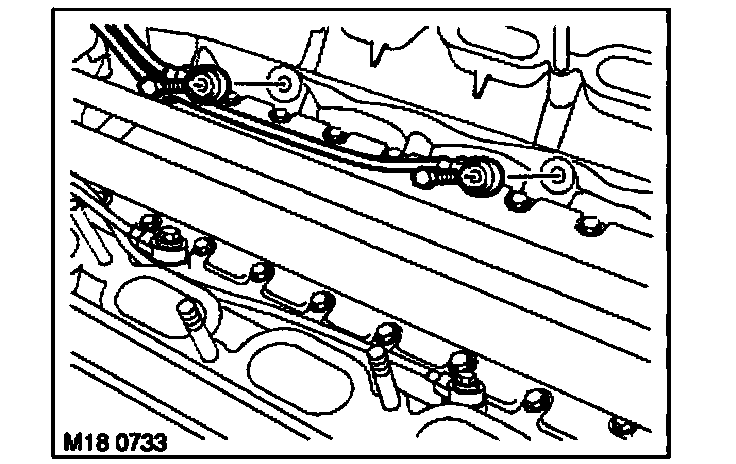

3. Remove 2 bolts securing KS to cylinder block, remove sensors.

Refit
1. Clean KS and mating faces on cylinder block.
2. Position KS to engine block, fit bolts securing KS and tighten to 20 Nm (15 lbf.ft).
3. Fit inlet manifold.
4. Connect battery earth lead.
5. If a replacement sensor has been fitted, re-set adaptions using TestBook/T4.
