Home >> Land Rover >> 2005 >> Range Rover (LM) V8-4398cc 4.4L (M62) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Steering Column Control Module >> Locations

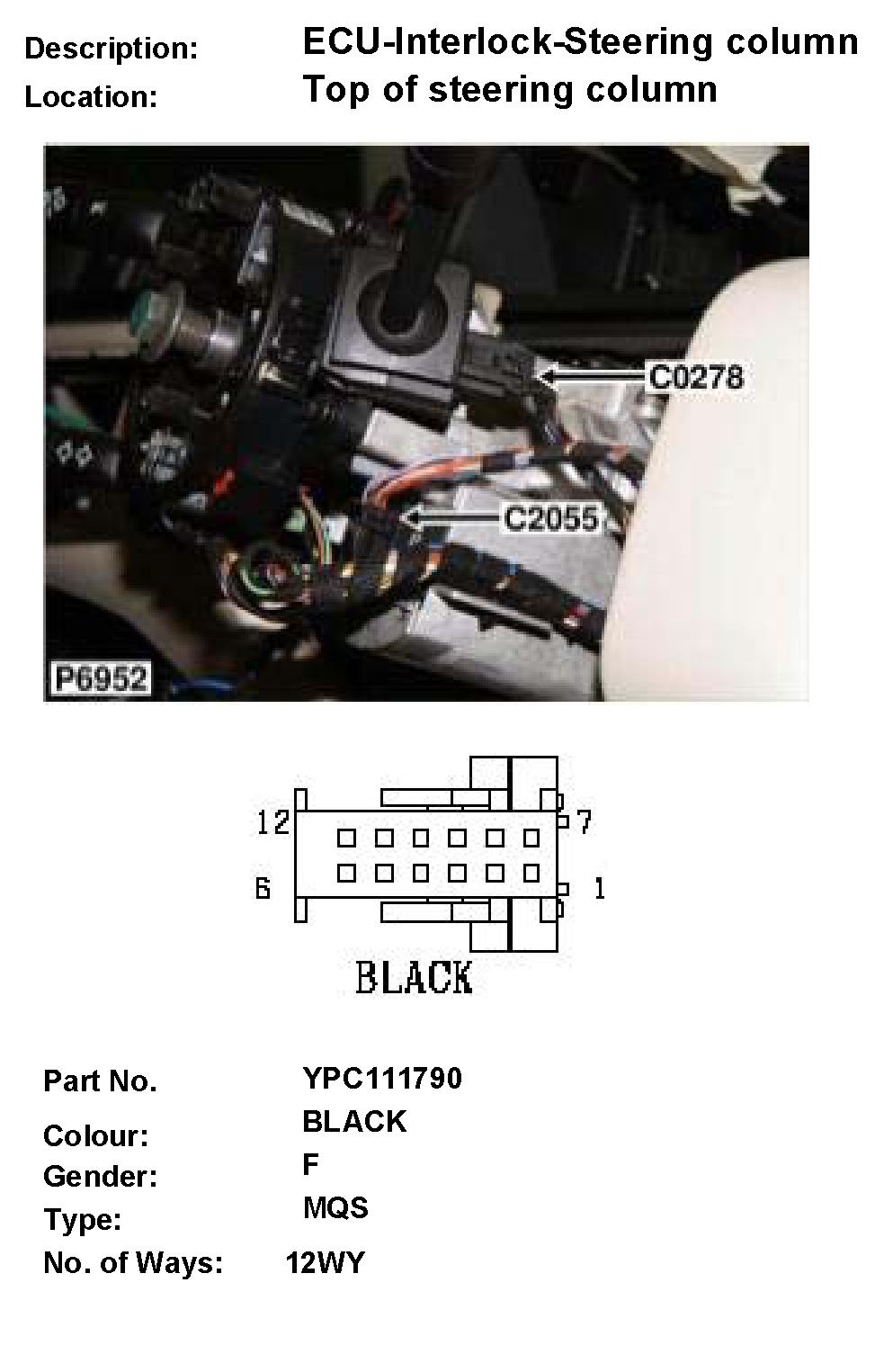

Steering Column Control Module: Locations

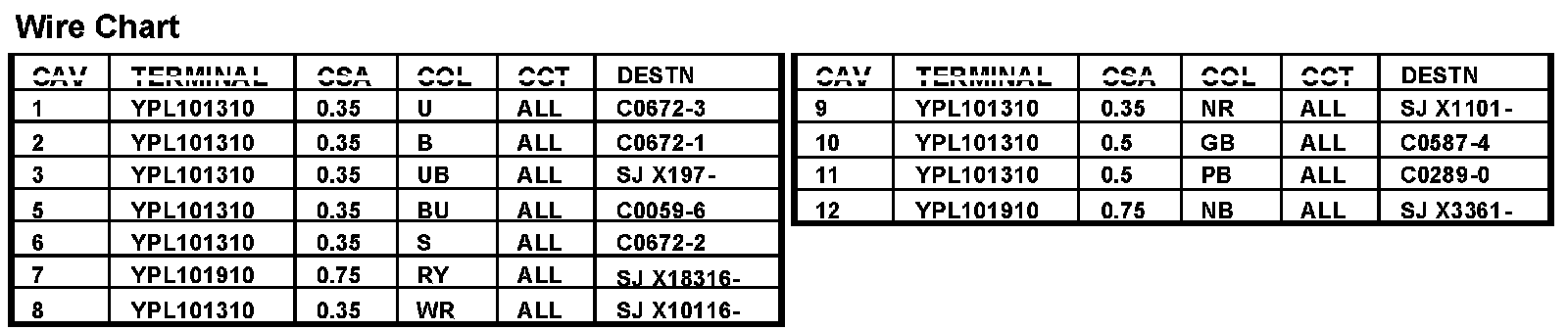

C2055 (Part 1):



C2055 (Part 2):
