Drive Belt: Service and Repair

Accessory Drive Belt

Service Repair No - 86.10.03

Removal
1. Disconnect the battery ground cable.
2. Remove the viscous fan assembly.
3. Release the accessory drive belt.

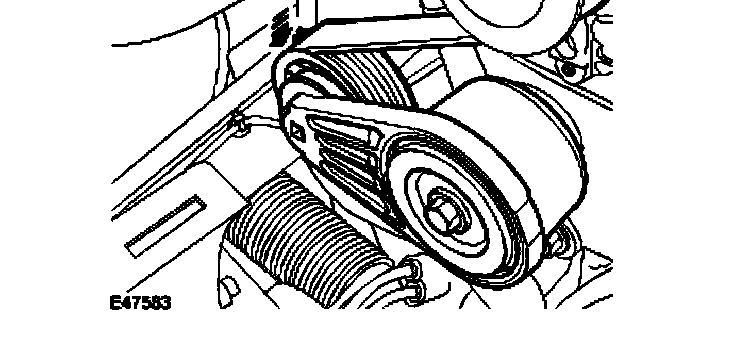

^ Rotate the accessory drive belt tensioner counterclockwise.

4. Remove the accessory drive belt.

Installation

1. To install, reverse the removal procedure.
^ Clean and inspect the drive pulleys for damage.
2. Connect the battery ground cable.
