Mirror - Interior



Mirror - Interior

Service Repair No - 76.10.51

Remove

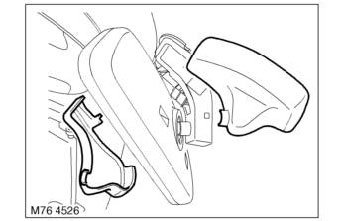

1. Release and remove mirror finishers.
2. Rotate mirror stem at its base to release from windscreen.

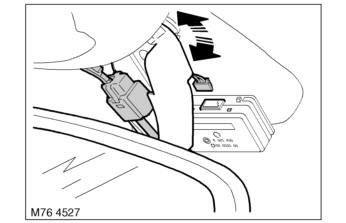

3. Models fitted with rain sensor: Disconnect multiplug from rain sensor.
4. Disconnect multiplug from mirror and remove the mirror.

Refit

1. Position mirror and connect multiplug.
2. Models fitted with rain sensor: Connect multiplug to rain sensor.
3. Fit mirror to location and rotate to secure.
4. Fit and secure mirror finishers.
